Introduction:
Engineered for high-current power delivery, this female 6 pin magnetic connector provides a robust right angle interface for modern electronics. It utilizes a 3.00mm pitch layout and a high-temperature LCP insulator that effectively survives intense industrial assembly heat up to 265°C. The Constantan contacts feature a premium 10u” Gold over Nickel plating to maintain low resistance and excellent conductivity across various data paths. With its 5A current rating at 12V DC, this rectangular component supports fast charging and efficient signal flow in space-saving designs. Technical teams rely on this self-mating interface for smart wearables and medical hardware requiring reliable automatic docking. This durable construction ensures signal integrity and stable electrical bonds through frequent mating cycles.
Key Features
- 5A High Current: Supports fast charging and reliable power delivery.
- Magnetic Self-Mating: Ensures effortless and secure automatic alignment connections.
- LCP Insulator Housing: Withstands high temperatures during industrial soldering processes.
- Gold Plated Contacts: Provides superior conductivity and lasting signal stability.
- Right Angle Layout: Optimizes vertical space for specialized board designs.
Main Specifications:
General Information:
| Product No.: | PH1-C463-06-FHP-71 | |
| Product Type: | Magnetic Pogo Pin Connector | |
| Pin Configuration: | 6 Pin | |
| Connector Gender: | Female | |
| Connector Shape: | Rectangular | |
| Mounting Orientation: | Right Angle | |
| Pitch(mm): | 3.0mm | |
| Working Stroke (mm): | N/A | |
| Life Test: | N/A |
Electrical:
| Rated Current: | 5A max | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 30 mohms max |
Materials and Plating:
| Insulator Material: | LCP 265°max | |
| Insulator Color: | N/A | |
| Contact Material: | Constantan(C3604) | |
| contact plating: | 5~10u” Gold over Nickel | |
| Spring Material: | N/A | |
| Magnet: | N/A |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |

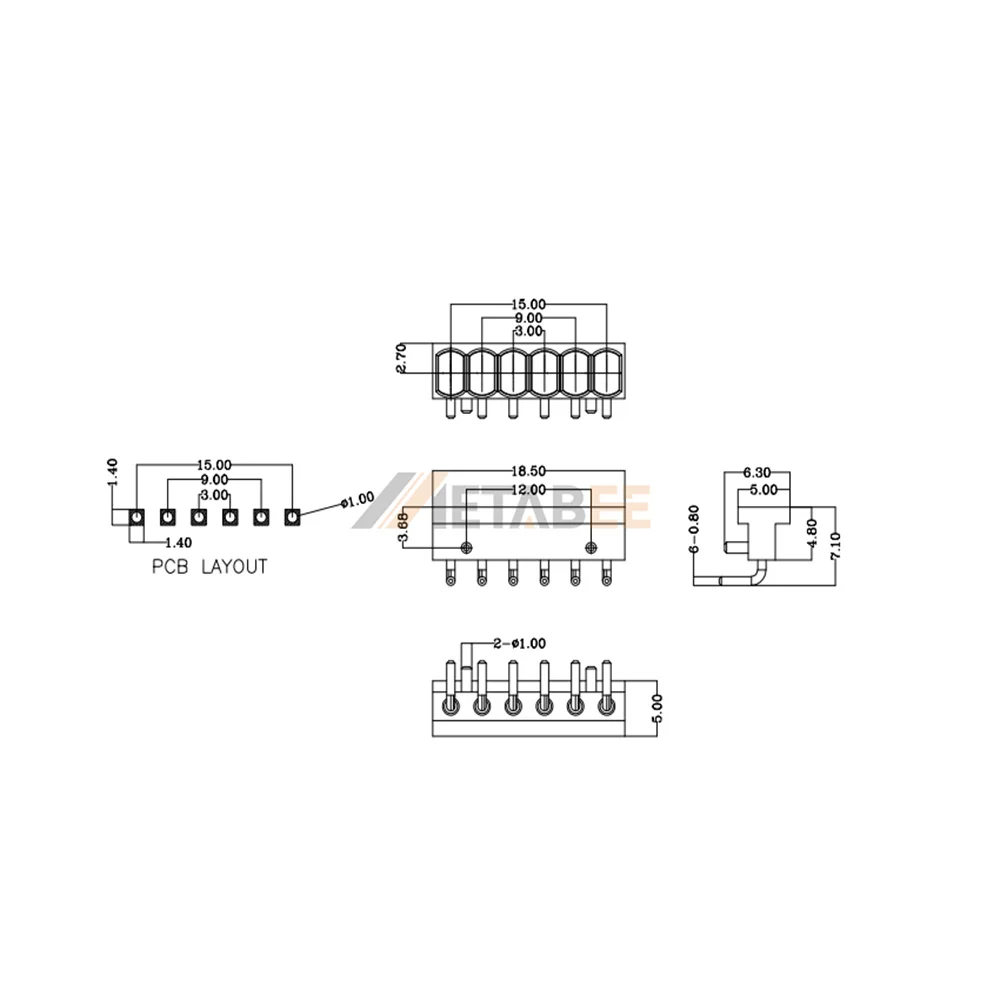

Structure of Magnetic Pogo Pin Connector
Applications:
Magnetic pogo pin connectors combine spring-loaded pin technology with magnetic alignment, providing reliable electrical contact and quick connection for power and signal transmission. Their magnetic design enables easy mating, secure attachment, and repeated connection cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Equipment
- Automotive Electronics
- Custom OEM & ODM Solutions
