Introduction:
This is a male 6 pin Magnet Pogo Pin Connector designed for reliable right angle electrical docking in high-performance electronics. It features a rectangular LCP housing that withstands assembly temperatures up to 265°C without deformation. The 3.00mm pitch layout utilizes SUS304 springs to provide a consistent 0.80mm working stroke across an exceptional lifetime of 100,000 cycles. Constantan contacts finished with 10u” Gold over Nickel ensure superior conductivity and thermal stability for 1.5A current loads at 12V DC. Technicians utilize this modular interface for smart wearables and handheld devices requiring fast, automatic magnetic alignment. Its durable construction maintains signal integrity under frequent mating cycles in demanding environments.
Key Features
- 100,000 Cycle Lifetime: Guarantees extreme durability for frequent docking applications.
- Magnetic Self-Alignment: Facilitates effortless and secure automatic mating connections.
- 10u” Gold Plating: Ensures superior conductivity and lasting signal stability.
- Right Angle Mounting: Optimizes vertical space for specialized compact board layouts.
- LCP Insulator Housing: Survives intense heat during industrial soldering processes.
Main Specifications:
General Information:
| Product No.: | PH1-C449-06-MHP-965A85 | |
| Product Type: | Magnetic Pogo Pin Connector | |
| Pin Configuration: | 6 Pin | |
| Connector Gender: | Male | |
| Connector Shape: | Rectangular | |
| Mounting Orientation: | Right Angle | |
| Pitch(mm): | 3.0mm | |
| Working Stroke (mm): | 0.80mm (per Contact)@50gf min 1.20mm (per Contact)@120gf max |
|
| Life Test: | 100,000 Cycles min |
Electrical:
| Rated Current: | 1.5A max | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 30 mohms max |
Materials and Plating:
| Insulator Material: | LCP 265°max | |
| Insulator Color: | N/A | |
| Contact Material: | Constantan(C3604) | |
| contact plating: | 10u” Gold over Nickel | |
| Spring Material: | SUS 304 | |
| Magnet: | N/A |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |

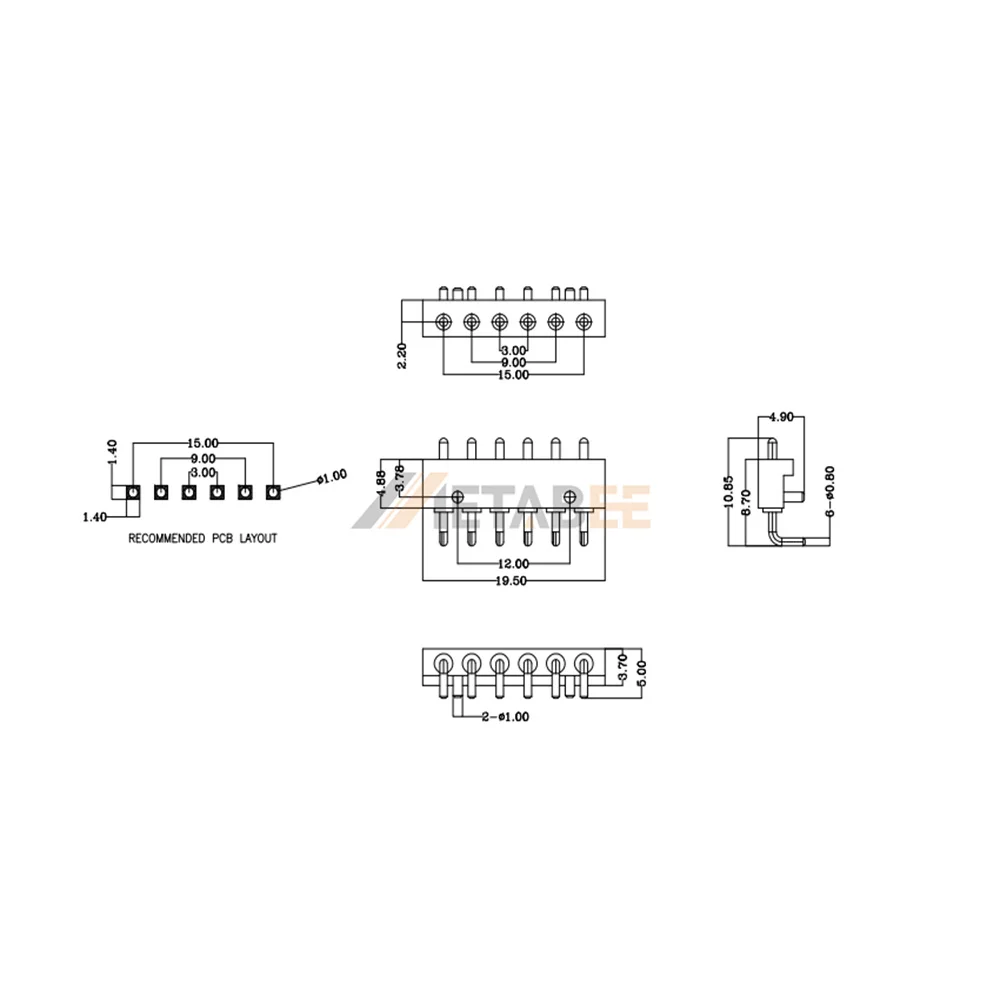

Structure of Magnetic Pogo Pin Connector
Applications:
Magnetic pogo pin connectors combine spring-loaded pin technology with magnetic alignment, providing reliable electrical contact and quick connection for power and signal transmission. Their magnetic design enables easy mating, secure attachment, and repeated connection cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Equipment
- Automotive Electronics
- Custom OEM & ODM Solutions
