Introduction:
This magnet power connector is a precision-engineered 5-pin female terminal designed for high-density electrical docking. It features a straight rectangular orientation with a fine 1.80mm pitch to optimize space on modular PCBs. The assembly is rated for 2A and 12V DC, utilizing gold-plated brass contacts to maintain a low resistance of 30 mohms. Built with durable ABS insulation, it supports a mechanical life of 30,000 cycles for dependable daily operation. This component serves as a reliable charging or data link for handheld industrial devices and wearables requiring secure, self-aligning magnetic connectivity in environments from -30°C to +85°C.
Key Features
- Magnetic Alignment: Magnetic head ensures automatic self-aligning secure docking.
- Precision Pitch: Precision 1.80mm pitch facilitates high-density modular docking.
- Rated Power: Supports 2A maximum current for efficient 12V power.
- Durable Life: Tested for 30,000 cycles ensuring long mechanical service.
- Quality Plating: Thick 5u” gold plating prevents brass terminal oxidation.
Main Specifications:
General Information:
| Product No.: | PH1-C1855-05-FHP-728 | |
| Product Type: | Magnetic Pogo Pin Connector | |
| Pin Configuration: | 5 Pin | |
| Connector Gender: | Female | |
| Connector Shape: | Rectangular | |
| Mounting Orientation: | Right Angle | |
| Pitch(mm): | 1.8mm | |
| Working Stroke (mm): | N/A | |
| Life Test: | N/A |
Electrical:
| Rated Current: | 1.5A max | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 40 mohms max |
Materials and Plating:
| Insulator Material: | LCP | |
| Insulator Color: | Natural, 220±10°C | |
| Contact Material: | Brass | |
| contact plating: | 10u” Gold plated over Nickel | |
| Spring Material: | N/A | |
| Magnet: | N42, Ni-Cu-Ni 80-100u, Gauss value 460 min |
Environmental:
| Operating Temperature: | N/A | |
| Flammability Rating: | UL 94 V-0 |

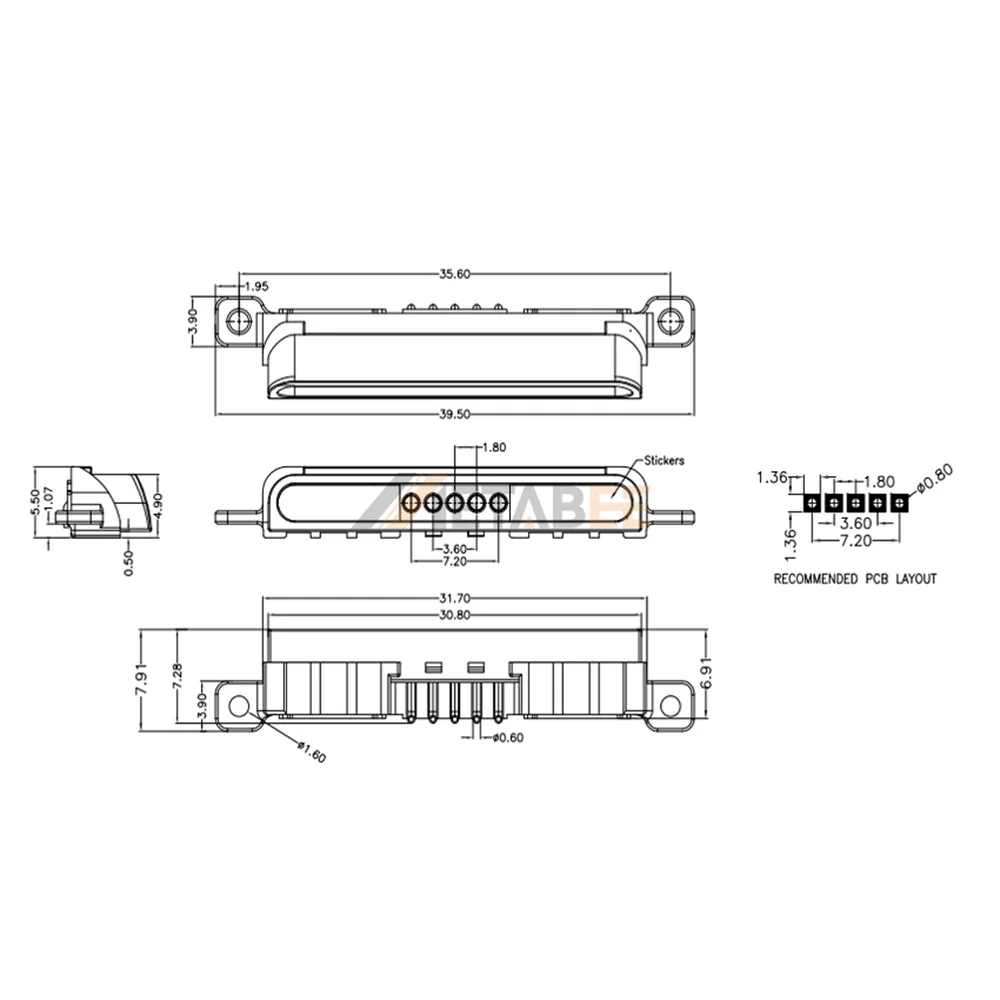

Structure of Magnetic Pogo Pin Connector
Applications:
Magnetic pogo pin connectors combine spring-loaded pin technology with magnetic alignment, providing reliable electrical contact and quick connection for power and signal transmission. Their magnetic design enables easy mating, secure attachment, and repeated connection cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Equipment
- Automotive Electronics
- Custom OEM & ODM Solutions
