Introduction:

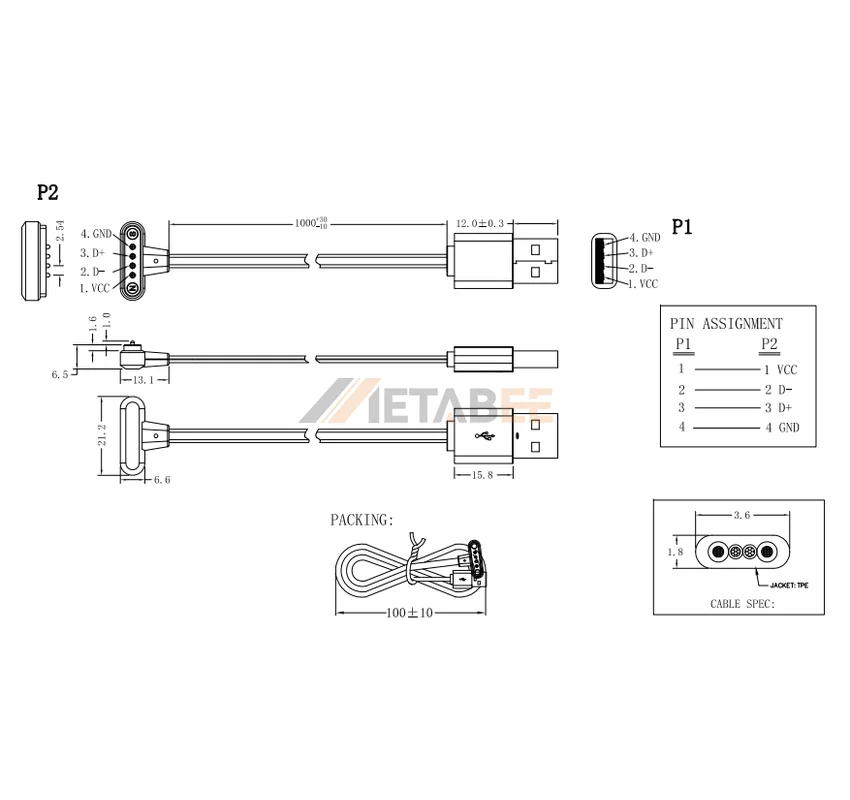

This pogo pin round power cable is a 1-meter magnetic charging assembly designed for secure 4 pin connections. It features a right angle rounded rectangular head that utilizes magnetic force for automatic self-alignment, allowing for effortless one-handed docking. The cable supports a 2A maximum current at 5V DC and is encased in a flexible black TPE jacket. With a spring-loaded mechanism providing 60gf force and a tested durability of 10,000 cycles, it ensures long-term mechanical reliability. This component functions as a durable power link for smart wearables and portable electronics requiring quick-release magnetic charging ports.
Key Features
- Magnetic Alignment: Rounded rectangular head enables automatic self-aligning connection.
- Efficient Charging: Supports 2A max current for 5V DC power.
- Space Saving: Right angle design optimizes space in compact layouts.
- Flexible Jacket: 1000mm TPE jacket offers superior cable bending durability.
- Durable Life: Tested for 10,000 cycles ensuring reliable charging performance.
Main Specifications:
General Information:
| Product No.: | CA-RA4-PH1-365-M1 | |
| Product Type: | Magnetic Cable Assemblies | |
| Connector 1: | USB Type-A Male | |
| Connector 2: | Male Pogo Pin Connector | |
| Pin Count: | 4 | |
| Connector 2-Shape: | Rounded Rectangular | |
| Connector 2-Orientation: | Right Angle | |
| Contact Material: | N/A | |
| Contact Plating: | N/A | |
| Cable Type: | Round Cable | |
| Wire Gauge: | N/A | |
| Cable Length: | 1000±30 mm | |
| Jacket Material & Color: | TPE, Black |
Electrical:
| Rated Current: | 2A Max | |
| Rated Voltage: | 5V DC | |
| Contact Resistance: | 2 Ω max | |
| Insulation Resistance: | 10 Mohms min | |
| Dielectric Withstanding Voltage: | N/A |
Mechanical:
| Contact Force: | 60gf max | |
| Working Stroke: | 0.6mm | |
| Full Stroke: | N/A | |
| Durability: | 10,000 cycles min |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Applications:
Pogo pin magnetic cable assemblies combine magnetic alignment with spring-loaded contacts to provide fast, reliable connections for power and signal transmission. Their self-aligning design supports easy mating, repeated connection cycles, and stable electrical performance in compact electronic devices.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
