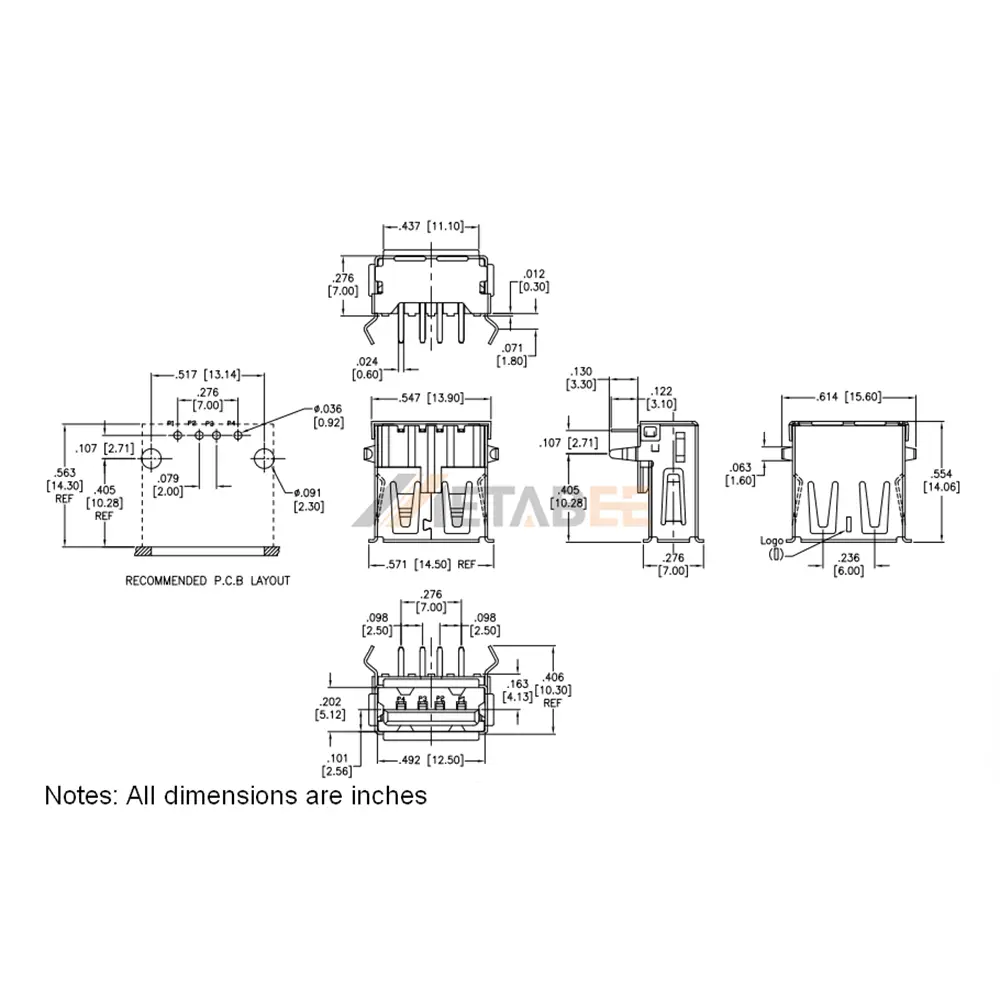

USB-A 2.0 Receptacle, 4 Pin, Thru-Hole, R/A
Introduction:
Upgrade your printed circuit board assemblies with our premium USB-A 2.0 Receptacle, engineered for universal compatibility and robust performance. This 4-pin connector features a standard Type A interface and is designed for thru-hole mounting with a right-angle (R/A) orientation, allowing for efficient, low-profile placement on PCBs. The connector housing is constructed from durable Brass with a reliable Nickel-plated finish, offering excellent resistance to wear and corrosion over the product’s lifespan.
For superior signal integrity, the contacts are made from high-quality Phosphor Bronze and feature a Gold-plated surface. This combination ensures consistent electrical conductivity and minimizes signal loss for USB 2.0 data transfer rates. As a single-port receptacle, it is rated for 1.5A of current and 30V AC, making it suitable for peripheral devices and industrial controls. Manufactured to meet rigorous safety standards, it holds a UL94V-0 flame retardancy rating and operates seamlessly in temperatures ranging from -40°C to 85°C.
Key Features
- Standard USB-A Interface: Type A receptacle with 4 pins for USB 2.0 connectivity.
- Right-Angle Mount: Thru-hole design allows for secure, space-saving PCB installation.
- Durable Construction: Brass shell with Nickel plating ensures long-term durability.
- High-Conductivity Contacts: Gold-plated Phosphor Bronze contacts for optimal data transmission.
- Standard Power Rating: Supports 1.5A current at 30V AC for reliable device power.
- Broad Application Range: UL94V-0 rated and functional in extreme temperatures (-40°C to 85°C).
Main Specifications:
General Information:
| Product No.: | YC-USB-A-S-RA-HF-TR | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-A | |
| Brand: | Metabee | |
| Number of Contacts: | 4 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru-Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Brass | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold plated | |
| Insulator: | PBT |
Electrical Performance:
| Rated Current: | 1.5A | |
| Rated Voltage: | 30VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB-A 2.0 Receptacle:
USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
