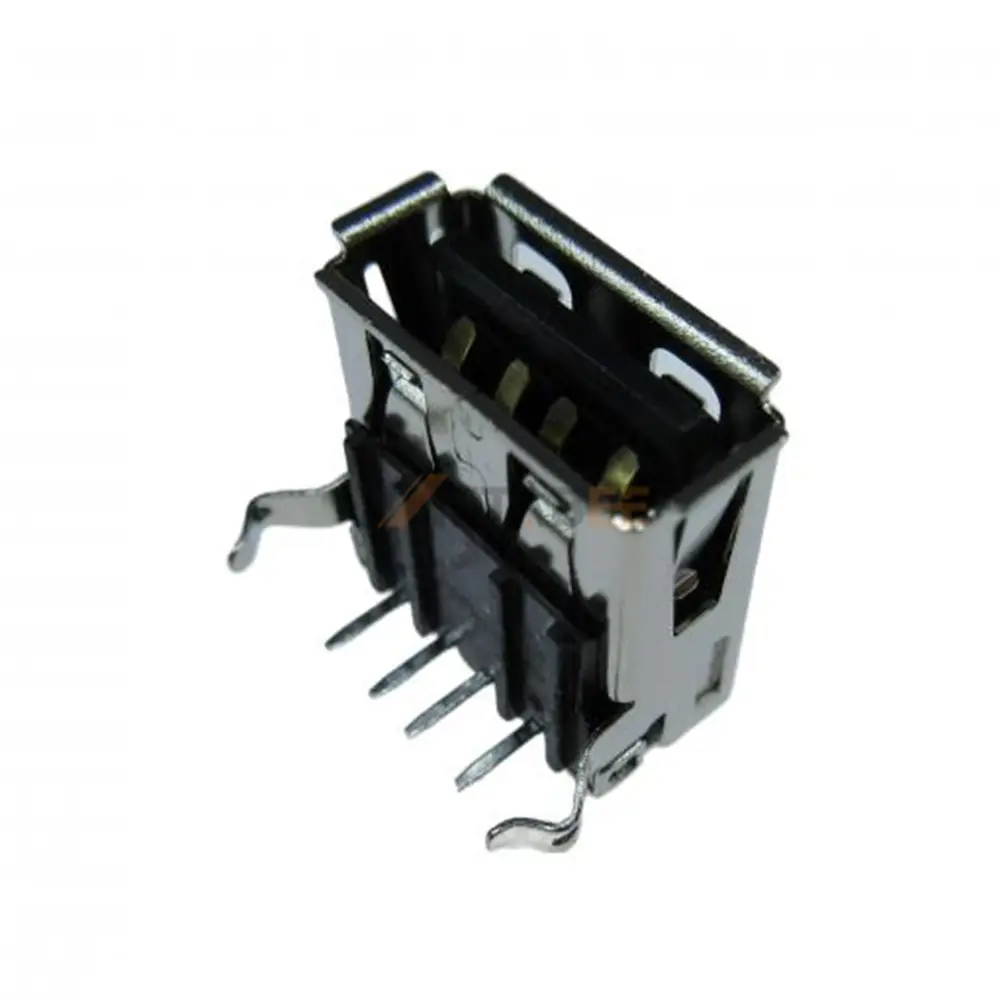

USB-A 2.0 Female Connector, 4 Pin, PCB Thru-Hole, R/A
Introduction:
This high-quality USB-A 2.0 female connector is engineered to provide reliable and efficient data transfer and power connectivity for a wide range of electronic devices. Featuring a single-port, 4-pin Type-A receptacle, this connector is designed for space-saving integration with its right-angle mounting orientation and PCB thru-hole installation. It’s an ideal choice for applications requiring a robust and compact USB 2.0 interface.
Constructed for durability and optimal performance, the connector boasts a robust copper alloy housing finished with a protective nickel plating. Its critical contact components are also made from copper alloy and are meticulously gold-plated, ensuring superior conductivity and long-term signal integrity. With an electrical rating of 1.5A current and 30VAC voltage, and a UL94V-0 flame retardant rating, this connector offers both safety and efficiency. It operates reliably across a broad temperature range from -40°C to 85°C, making it suitable for demanding industrial and consumer electronics environments.
Key Features
- USB-A 2.0 Female: Standard Type-A, single port, 4-pin receptacle for universal compatibility.
- Right-Angle PCB Mount: Space-saving design with thru-hole mounting for efficient board integration.
- Durable Construction: Copper alloy housing with nickel plating for enhanced strength and corrosion resistance.
- Gold-Plated Contacts: Copper alloy contacts with gold plating ensure optimal signal integrity and longevity.
- Robust Electricals: Rated for 1.5A current and 30VAC voltage, supporting stable power and data.
- Wide Temperature Range: Operates reliably from -40°C to 85°C, suitable for diverse environments.
Main Specifications:
General Information:
| Product No.: | YC-USB-A-S-RA-30-WT | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-A | |
| Brand: | Metabee | |
| Number of Contacts: | 4 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru-Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Copper Alloy | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | PBT |
Electrical Performance:
| Rated Current: | 1.5A | |
| Rated Voltage: | 30VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB-A 2.0 Female Connector:
USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
