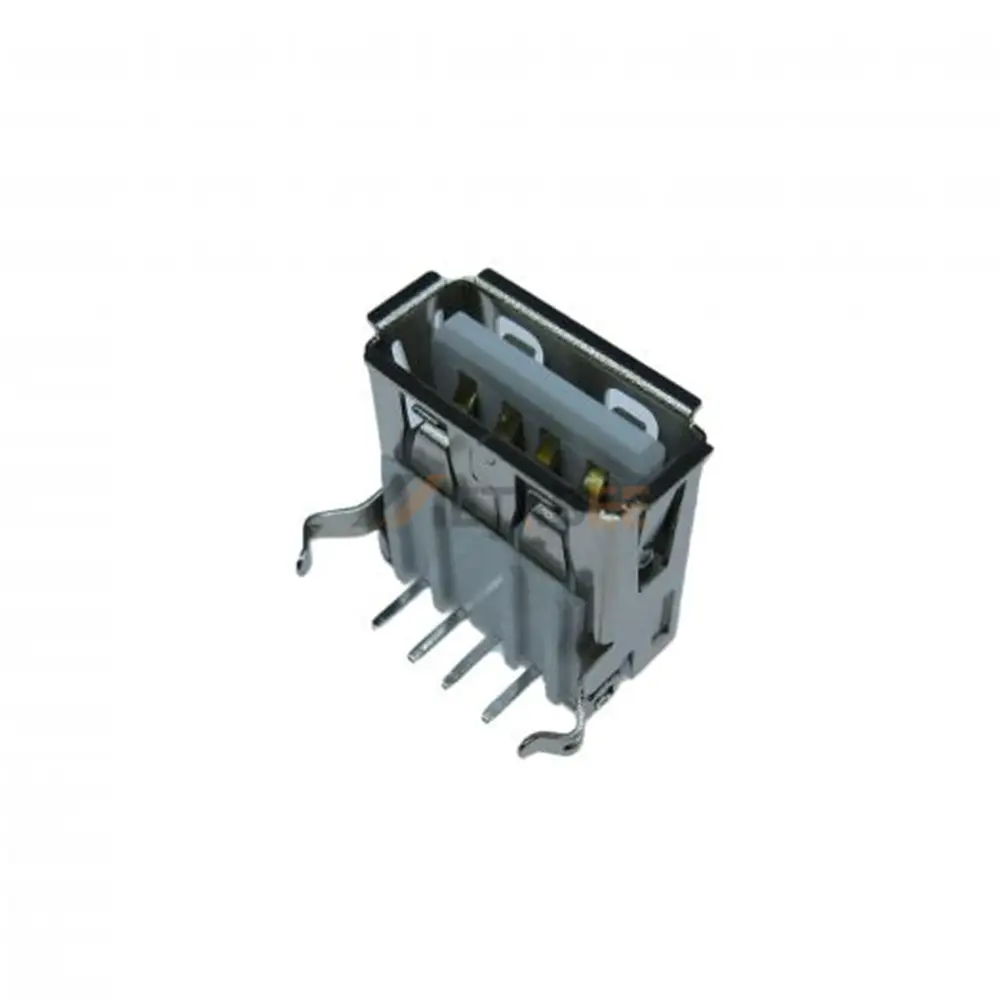

USB-A 2.0 Female Connector, 4 Pin, PCB Surface Mount, R/A
Introduction:
The USB-A 2.0 female connector is a reliable interface solution designed for stable USB connectivity in compact electronic devices. Featuring a type-a receptacle configuration with a single port, this connector supports standard USB 2.0 interfaces and ensures consistent signal transmission for data and power applications. The right-angle mounting orientation allows space-efficient pcb layouts, making it ideal for embedded systems, consumer electronics, industrial controllers, and peripheral devices.
Engineered for durability and electrical reliability, the connector housing is manufactured from high-quality copper alloy with nickel plating, providing enhanced corrosion resistance and mechanical strength. The gold-plated copper alloy contacts ensure excellent conductivity, improved signal integrity, and long mating life. Designed for pcb surface mount installation, it simplifies assembly while maintaining strong mechanical stability on the board.
With a rated current of 1.5A and a rated voltage of 30VAC, this USB-A receptacle delivers dependable power and data performance in USB-enabled devices. The connector also meets ul94v-0 flammability standards, ensuring improved safety in electronic equipment. Built to operate in demanding environments, it supports a wide working temperature range from -40°c to +85°c, making it suitable for both consumer and industrial applications.
Key Features
- USB Type-A Female Receptacle with 4-pin USB 2.0 interface
- Right-Angle PCB Surface Mount design for compact PCB layouts
- Copper alloy shell with nickel plating for durability and corrosion resistance
- Gold-plated contacts ensure reliable conductivity and long service life
- Rated 1.5A current and 30VAC voltage for stable power delivery
- UL94V-0 flammability rating with -40°C to +85°C operating temperature
Main Specifications:
General Information:
| Product No.: | YC-USB-A-S-RA-WT | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-A | |
| Brand: | Metabee | |
| Number of Contacts: | 4 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Copper Alloy | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | PBT |
Electrical Performance:
| Rated Current: | 1.5A | |
| Rated Voltage: | 30VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB-A 2.0 Female Connector:
USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
