USB-A 2.0 Female Connector, 16 Pin, Quad Port, PCB Thru-Hole, R/A
Introduction:
This high-density USB-A 2.0 female connector offers an efficient and space-saving solution for multi-port applications. Featuring a quad-port design and a total of 16 pins, this Type-A receptacle is ideal for systems requiring multiple USB 2.0 connections in a compact footprint. Engineered for Through-Hole PCB mounting with a Right Angle orientation, it ensures robust physical attachment to the circuit board and allows for convenient cable insertion in various device configurations. This connector is designed to provide reliable data transfer and power supply for a wide range of peripheral devices.
Constructed for both durability and optimal performance, the connector boasts a sturdy Brass housing, meticulously finished with Tin Plating to provide excellent corrosion resistance and ensure long-term reliability. The critical contact pins are manufactured from high-grade Phosphor Bronze, known for its superior elasticity and electrical conductivity, and are further enhanced with Gold Plating to guarantee consistent signal integrity and minimal contact resistance over numerous mating cycles. Electrically, it supports a rated current of 1.5A and a rated voltage of 250VAC. Adhering to strict safety standards, it carries a UL94V-0 flammability rating and operates flawlessly across an extended temperature range of -40°C to 85°C, making it suitable for demanding environments.
Key Features
- Interface Type: USB-A 2.0 Female Receptacle.
- Port & Pin Configuration: Quad Port, 16 Pin for high-density applications.
- Mounting: PCB Through-Hole, Right Angle orientation.
- Robust Materials: Tin-Plated Brass housing, Gold-Plated Phosphor Bronze contacts.
- Electrical Ratings: 1.5A rated current, 250VAC rated voltage.
- Environmental Compliance: UL94V-0 flammability rating, -40°C to 85°C operating temperature.

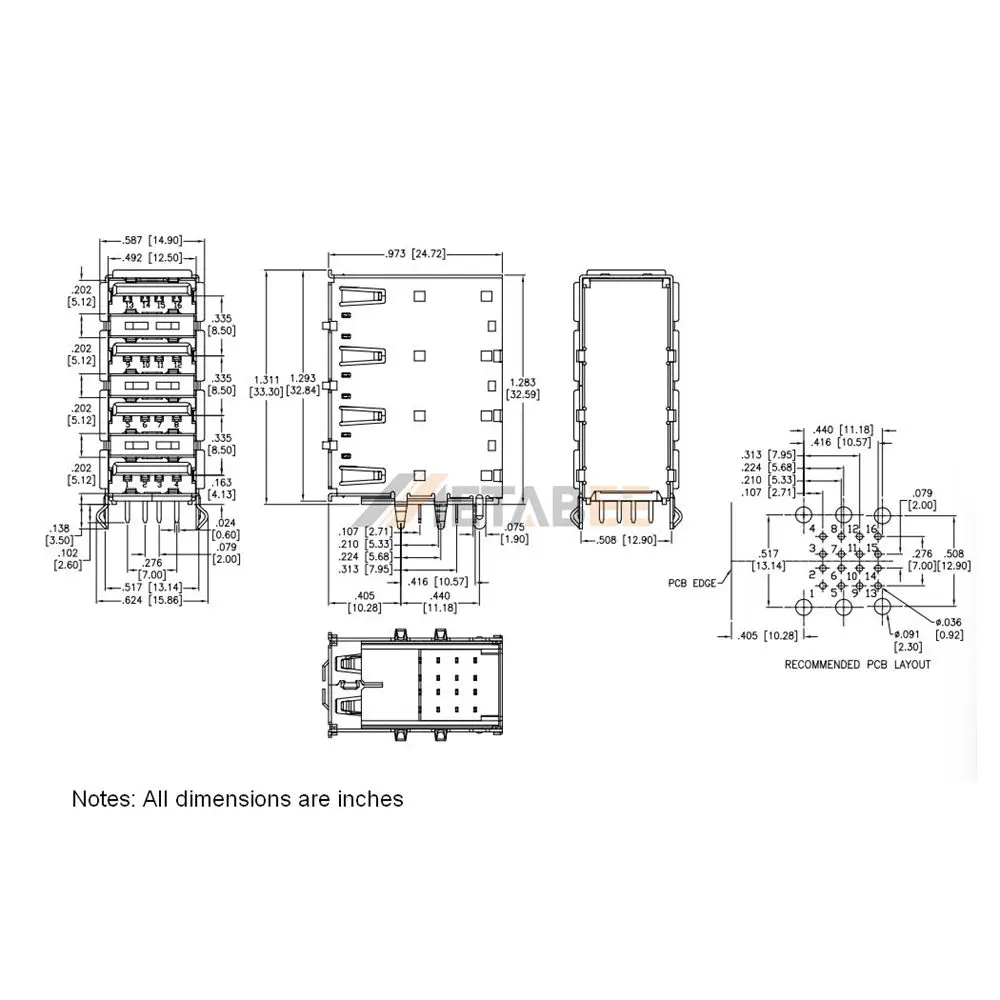

Main Specifications:
General Information:
| Product No.: | YC-USB-A-Q-RA | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-A | |
| Brand: | Metabee | |
| Number of Contacts: | 16 Pin | |
| Number of Ports: | Quad Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru-Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Brass | |
| Shell plating: | Tin Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold plated | |
| Insulator: | PBT |
Electrical Performance:
| Rated Current: | 1.5A | |
| Rated Voltage: | 250VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB-A 2.0 Female Connector:
USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
