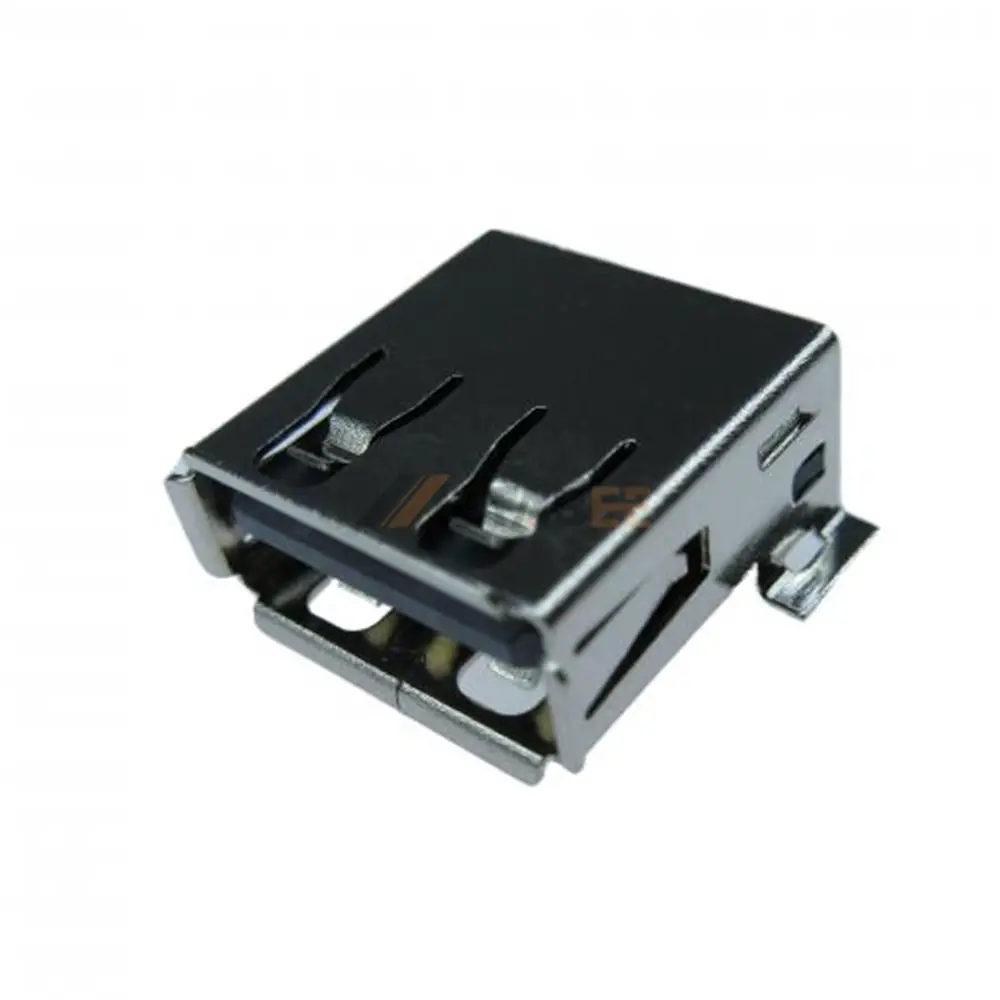

USB-A 2.0 Connector, Receptacle, 4 Pin, Surface Mount, R/A
Introduction:
Optimize your high-density PCB layouts with our advanced USB-A 2.0 Connector, designed for modern automated assembly processes. This Type A Receptacle features a 4-pin configuration with a Surface Mount (SMT) design and a Right-Angle (R/A) orientation. This combination allows for low-profile mounting directly onto the surface of the circuit board, significantly reducing manufacturing time and ideal for compact electronic devices where space is at a premium.
Built for performance and longevity, this single-port connector utilizes a Copper Alloy shell with a durable Nickel plating for excellent structural integrity and environmental resistance. The contacts are also crafted from Copper Alloy and feature a Gold-plated finish, ensuring minimal signal interference and reliable conductivity for USB 2.0 data transfer speeds. Rated at 1.5A and 30V AC, this RoHS-compliant component meets the UL94V-0 flame retardancy standard and operates reliably across a wide temperature range from -40°C to 85°C.
Key Features
- SMT Design: Right-angle surface mount configuration for efficient, high-speed PCB assembly.
- Standard USB 2.0: Type A, 4-pin receptacle for universal compatibility.
- Premium Plating: Gold-plated Copper Alloy contacts for superior signal clarity.
- Durable Housing: Robust Copper Alloy shell with a corrosion-resistant Nickel finish.
- Electrical Rating: Supports up to 1.5A current at 30V AC for various applications.
- High-Reliability: UL94V-0 rated with a wide operating temperature (-40°C to 85°C).
Main Specifications:
General Information:
| Product No.: | YC-USB-A-S-RA-TSMT | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-A | |
| Brand: | Metabee | |
| Number of Contacts: | 4 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Copper Alloy | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | LCP |
Electrical Performance:
| Rated Current: | 1.5A | |
| Rated Voltage: | 30VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
