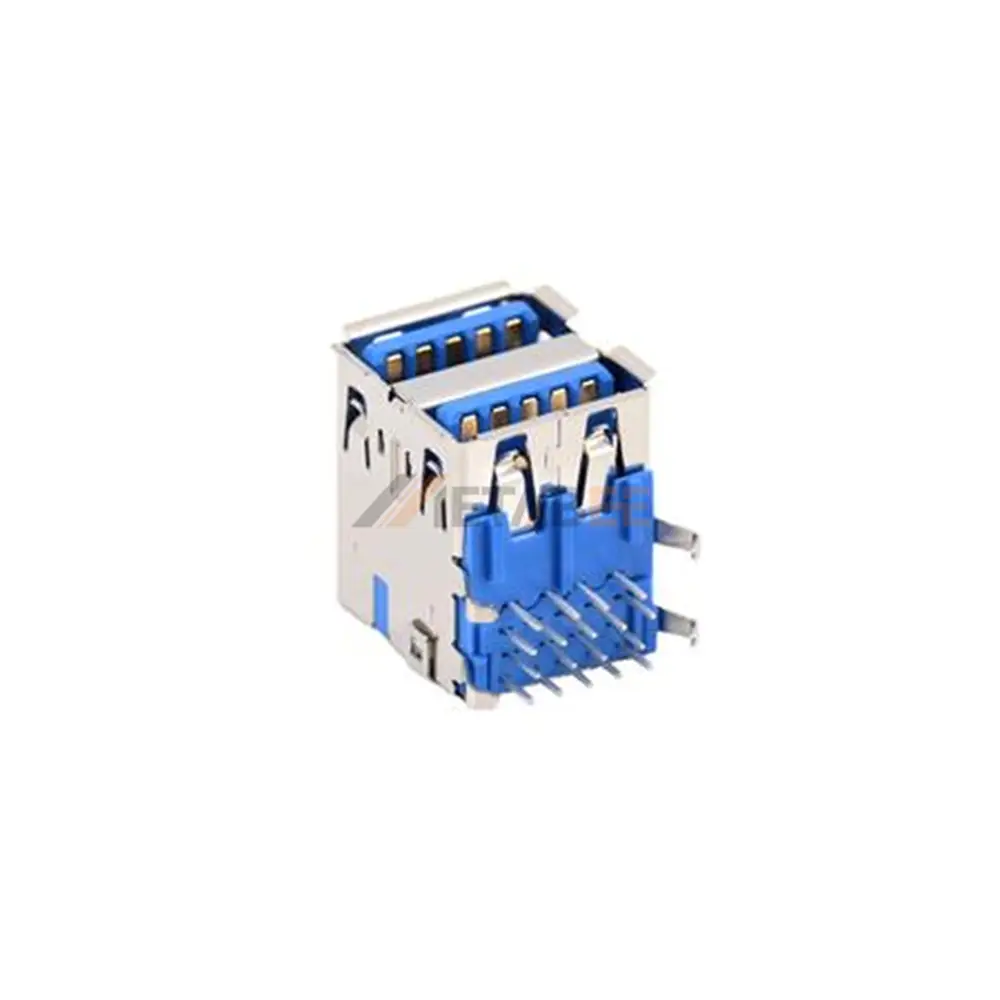

USB 3.0 Type A Socket, 18 Pin, Dual Port, PCB Thru-Hole, R/A
Introduction:
This high-speed USB 3.0 Type A is designed for high-density PCB applications requiring rapid data transfer and dual-device connectivity. Featuring a vertical mounting orientation and an 18-pin thru-hole design, this receptacle allows for a compact footprint while providing a stable, secure interface for peripheral connections. It is an ideal solution for motherboards, servers, and industrial computing hubs where space efficiency and high-performance throughput are critical.
Engineered for longevity and reliability, the connector is constructed with a tin-plated brass shell and gold-plated copper alloy contacts, ensuring excellent electrical conductivity and resistance to oxidation. With a wide operating temperature range from -40°C to 85°C and a UL94V-0 flame retardant rating, it meets stringent safety standards for demanding environments. This dual-port connector supports a rated current of up to 1.8A, making it suitable for both high-speed data transmission and power delivery.
Key Features
- USB 3.0 SuperSpeed: Supports high-bandwidth data transfer with an 18-pin configuration.
- Dual Port Design: Increases port density by allowing two USB connections in a single footprint.
- Vertical PCB Mount: Saves horizontal board space with a secure thru-hole installation.
- Premium Gold Plating: Copper alloy contacts are gold-plated for maximum signal integrity.
- Industrial Durability: Operates flawlessly in extreme temperatures (-40°C to 85°C).
- Certified Safety: Features a UL94V-0 flammability rating for enhanced fire protection.
Main Specifications:
General Information:
| Product No.: | YC-USB-A3-D-RA-A | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-A | |
| Brand: | Metabee | |
| Number of Contacts: | 18 Pin | |
| Number of Ports: | Dual Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru-Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Brass | |
| Shell plating: | Tin Plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | PBT |
Electrical Performance:
| Rated Current: | 0.25A, 1.8A | |
| Rated Voltage: |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 3.0 Type A Socket, 18 Pin:
USB 3.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
