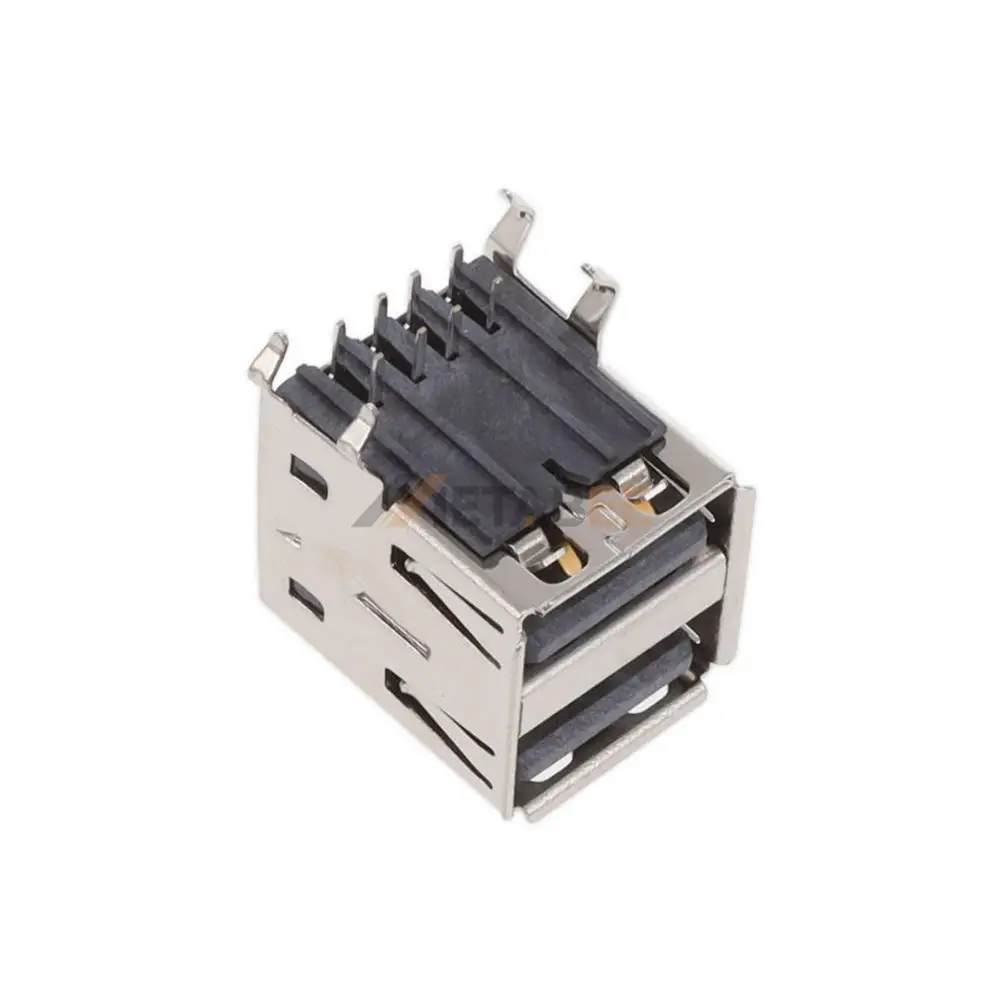

USB 3.0 Type A Connector, Socket, 18 Pin, Dual Port, PCB THM, R/A
Introduction:
The USB 3.0 Type A connector is a high-performance interconnect solution engineered for reliable high-speed data transmission and power delivery in modern electronic systems. Designed with a dual-port configuration, this connector supports efficient space utilization on PCBs while maintaining full USB 3.0 functionality. Its through-hole mounting (THM) and right-angle orientation ensure robust mechanical stability and seamless integration into vertical PCB layouts, making it ideal for industrial, consumer electronics, and embedded applications.
Constructed with a stainless steel shell and tin-plated shielding, the connector offers excellent durability, corrosion resistance, and EMI protection. The copper alloy contacts with gold plating ensure superior conductivity, low contact resistance, and long mating cycle life. Rated for 0.5A / 2A current and 9VAC voltage, this connector meets stringent performance requirements while maintaining operational reliability across a wide temperature range from -40°C to +85°C. Additionally, the housing complies with UL94V-0 flame-retardant standards, ensuring enhanced safety in demanding environments.
Key Features
- USB 3.0 Type A receptacle with dual-port, 18-pin configuration
- Right-angle (R/A) design for space-saving PCB layouts
- Through-hole mounting (THM) for strong mechanical retention
- Stainless steel shell with tin plating for durability and shielding
- Gold-plated copper alloy contacts for high conductivity and reliability
- Wide operating temperature range (-40°C to +85°C) with UL94V-0 rating
Main Specifications:
General Information:
| Product No.: | YC-USB-A3-D-RA-A3B-HT-HF-15-TR | |
| Connector Series: | USB 3.0 Connectors | |
| Interface Type: | Type-A | |
| Brand: | Metabee | |
| Number of Contacts: | 18 Pin | |
| Number of Ports: | Dual Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru-Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.5A, 2A | |
| Rated Voltage: | 9VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 3.0 Type A Connector:
USB 3.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
