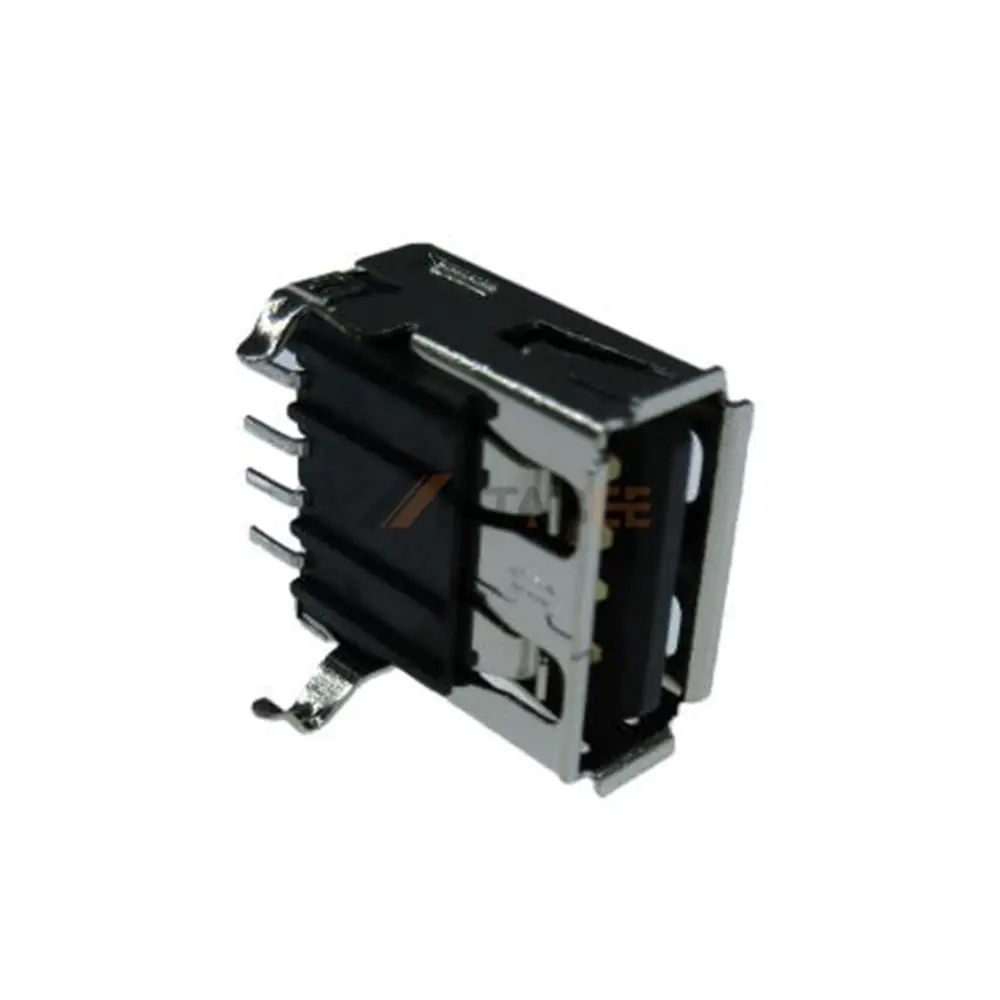

USB 2.0 Type A Socket, 4 Pin, PCB Surface Mount, R/A
Introduction:
Optimize your high-density PCB designs with our premium USB 2.0 Type A female socket. Engineered for Surface Mount (SMT) technology, this 4-pin receptacle features a Right Angle (R/A) orientation, allowing for a low-profile footprint and streamlined automated assembly. The single-port design is perfect for modern consumer electronics, data storage devices, and embedded systems where board space and manufacturing efficiency are top priorities.
Built for long-term reliability, the connector is constructed from a high-grade Copper Alloy shell with Nickel plating for superior EMI/RFI shielding and corrosion resistance. The internal Copper Alloy contacts are finished with Gold plating, ensuring excellent electrical conductivity and stable data transmission. Rated at 1.5A and 30VAC, this component operates reliably in harsh environments ranging from -40°C to +85°C, all while maintaining a UL94V-0 flame-retardant safety rating.
Key Features
- SMT Design: Optimized for Surface Mount Technology (PCB Mount) to support high-speed automated production.
- Gold-Plated Contacts: Copper alloy contacts with gold plating for maximum signal integrity and wear resistance.
- Robust Shielding: Nickel-plated copper alloy shell provides excellent mechanical strength and interference protection.
- Space-Saving R/A Layout: Right-angle orientation allows for convenient side-entry access on slim PCBs.
- Industrial Durability: Wide operating temperature range of -40°C to +85°C for versatile applications.
- Safety Compliance: Features a UL94V-0 flammability rating with a 1.5A current capacity.
Main Specifications:
General Information:
| Product No.: | YC-USB-A-S-RA-SMT | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-A | |
| Brand: | Metabee | |
| Number of Contacts: | 4 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Copper Alloy | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 1.5A | |
| Rated Voltage: | 30VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 2.0 Type A Socket:
USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
Factory pricing and exceptional product quality. Get a free quote now!
