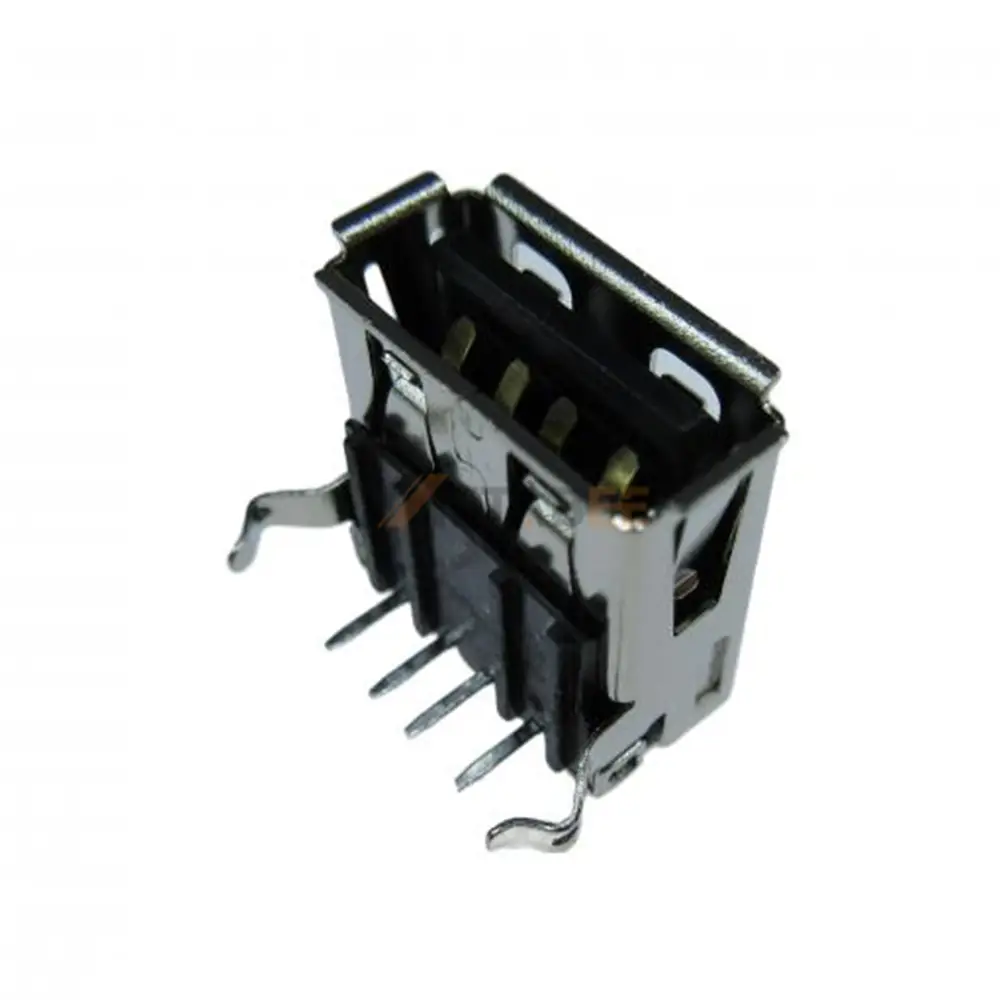

USB 2.0 Type A Receptacle, 4 Pin, Thru-Hole, R/A
Introduction:
The USB 2.0 Type A receptacle is a reliable connector designed for stable USB data transmission and power delivery in a wide range of electronic devices. Featuring a Type-A receptacle with a 4-pin configuration, this single-port connector complies with the USB 2.0 interface standard and is widely used in consumer electronics, industrial equipment, and embedded systems. The right-angle orientation allows horizontal cable routing, helping optimize PCB layout in space-constrained designs.
Constructed with a brass shell with nickel plating, the connector offers excellent structural strength and corrosion resistance, ensuring long-term durability. The gold-plated brass contacts provide superior conductivity, low contact resistance, and stable signal transmission across repeated mating cycles. With a rated current of 1.5A and rated voltage of 30VAC, this connector ensures reliable electrical performance for USB power and data connections.
Designed for demanding operating environments, the connector complies with UL94V-0 flammability standards and supports an operating temperature range from −40°C to +85°C. The PCB through-hole mounting design enhances solder joint strength and mechanical stability, making it suitable for applications where durability and long service life are required.
Key Features
- USB 2.0 Type-A receptacle, 4-pin configuration
- Single-port right-angle design for efficient PCB layout
- PCB through-hole mounting for strong mechanical stability
- Nickel-plated brass shell for durability and corrosion resistance
- Gold-plated brass contacts for reliable conductivity and signal integrity
- Rated current 1.5A, voltage 30VAC, operating temperature −40°C to +85°C, UL94V-0 flame rating
Main Specifications:
General Information:
| Product No.: | YC-USB-A-S-RA | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-A | |
| Brand: | Metabee | |
| Number of Contacts: | 4 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru-Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Brass | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Brass | |
| Contact Plating: | Gold plated | |
| Insulator: | PA66 |
Electrical Performance:
| Rated Current: | 1.5A | |
| Rated Voltage: | 30VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 2.0 Type A Receptacle:
USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
