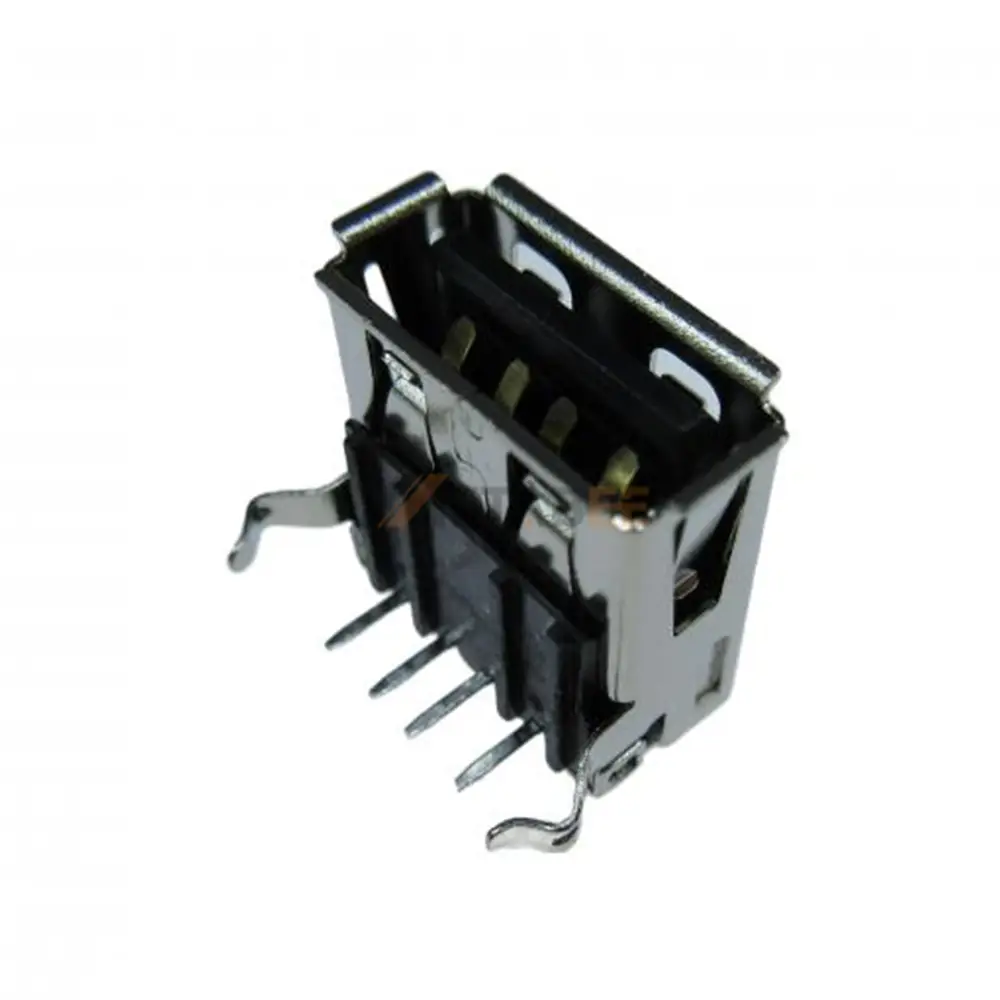

USB 2.0 Type A Receptacle, 4 Pin, PCB Thru-Hole, R/A
Introduction:
The USB 2.0 Type A receptacle connector is designed for reliable board-level connectivity in a wide range of electronic devices. Featuring a single-port Type-A interface, this connector supports standard USB 2.0 communication and ensures stable data and power transmission. Its right-angle PCB through-hole mounting design provides secure mechanical retention and efficient space utilization on printed circuit boards, making it ideal for compact electronic assemblies.
Constructed with a copper alloy shell and contacts, the connector offers excellent mechanical strength and electrical conductivity. The nickel-plated shell enhances durability and corrosion resistance, while gold-plated contacts improve signal integrity and ensure long-term mating reliability. With a rated current of 1.5A and rated voltage of 30VAC, this connector is suitable for many consumer electronics, embedded systems, and industrial devices requiring dependable USB connectivity.
Engineered for durability, the connector features a UL94V-0 flame-retardant housing for enhanced safety. It also operates reliably across a wide temperature range from -40°C to 85°C, ensuring stable performance in demanding environments such as industrial equipment, communication devices, and computer peripherals.
Key Features
- USB 2.0 Type-A Receptacle, single port, 4-pin configuration
- Right-angle PCB through-hole mounting for secure board installation
- Copper alloy shell and contacts for excellent conductivity and durability
- Nickel-plated shell and gold-plated contacts for corrosion resistance and reliable signal transmission
- Rated current 1.5A, rated voltage 30VAC for stable power and data performance
- UL94V-0 flame rating with -40°C to 85°C operating temperature for reliable operation in harsh environments
Main Specifications:
General Information:
| Product No.: | YC-USB-A-S-RA-30 | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-A | |
| Brand: | Metabee | |
| Number of Contacts: | 4 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru-Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Copper Alloy | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | PBT |
Electrical Performance:
| Rated Current: | 1.5A | |
| Rated Voltage: | 30VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 2.0 Type A Receptacle:
USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
