USB 2.0 Type A Receptacle, 4 Pin, PCB Edge Mount, 90 degree
Introduction:
The USB 2.0 Type A receptacle is designed for reliable PCB connectivity in compact electronic devices. Featuring a single-port Type-A receptacle interface, this connector adopts a right-angle PCB mount design, allowing edge mounting on printed circuit boards and enabling efficient space utilization in embedded systems and consumer electronics. With a 4-pin configuration, it supports stable USB 2.0 data and power transmission for a wide range of USB peripherals. Typical USB 2.0 connectors provide reliable connectivity and power delivery for common devices such as keyboards, printers, and storage peripherals.
The connector shell is manufactured from durable brass with nickel plating, providing strong mechanical protection and excellent corrosion resistance. The brass contacts with gold plating ensure low contact resistance and stable electrical conductivity, enhancing long-term connection reliability. It supports a rated current of 1.5A and a rated voltage of 30VAC, ensuring dependable performance for standard USB power and signal transmission requirements.
Designed for demanding environments, this USB connector features UL94V-0 flame-retardant performance and operates within a wide temperature range of -40°C to +85°C, making it suitable for industrial electronics, communication devices, and consumer hardware. Its robust structure and reliable plating process ensure stable mating cycles and consistent performance in long-term applications.
Key Features
- USB 2.0 Type-A receptacle, single port, 4-pin configuration
- PCB edge mount, 90° right-angle orientation for space-saving designs
- Brass shell with nickel plating for durability and corrosion resistance
- Gold-plated brass contacts for improved conductivity and reliability
- Rated current 1.5A, rated voltage 30VAC for stable power transmission
- Operating temperature -40°C to +85°C, UL94V-0 flame-retardant rating

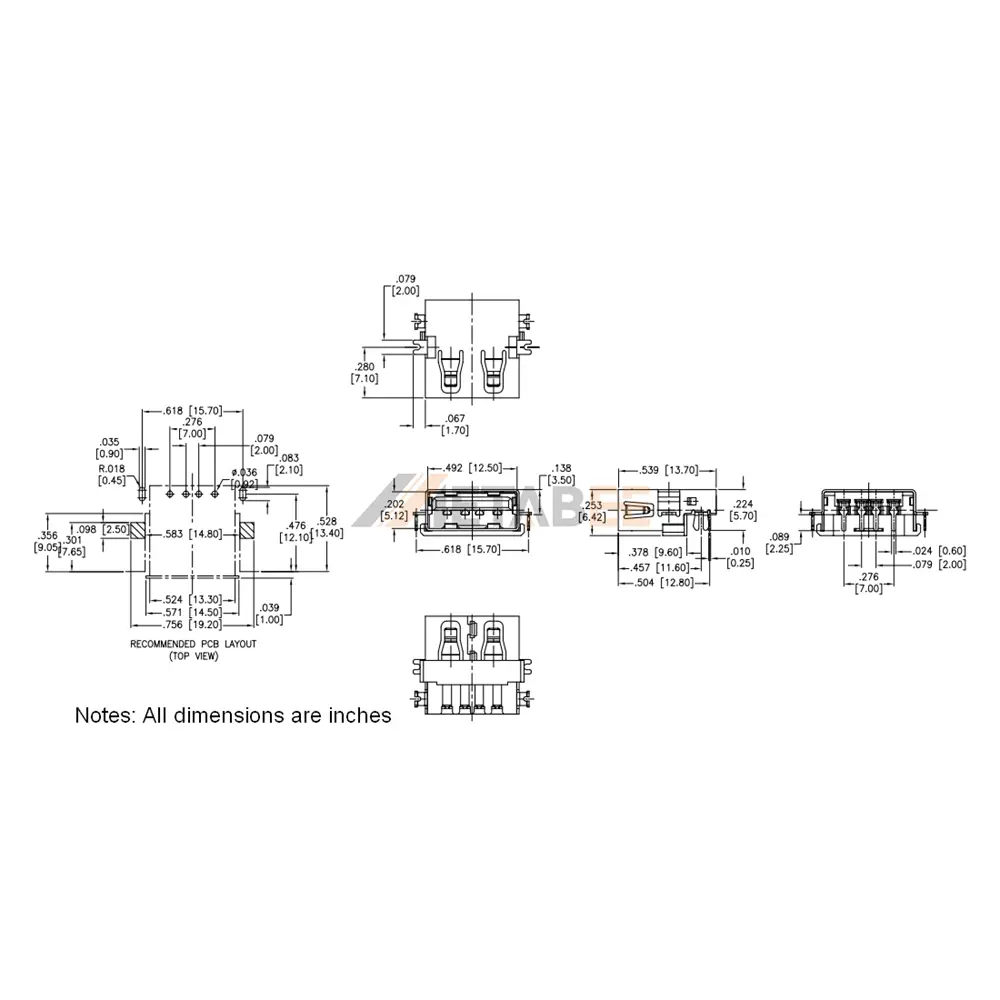

Main Specifications:
General Information:
| Product No.: | YC-USB-A-S-RA-EH1A | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-A | |
| Brand: | Metabee | |
| Number of Contacts: | 4 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru-Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Brass | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Brass | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 1.5A | |
| Rated Voltage: | 30VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 2.0 Type A Receptacle:
Micro USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
