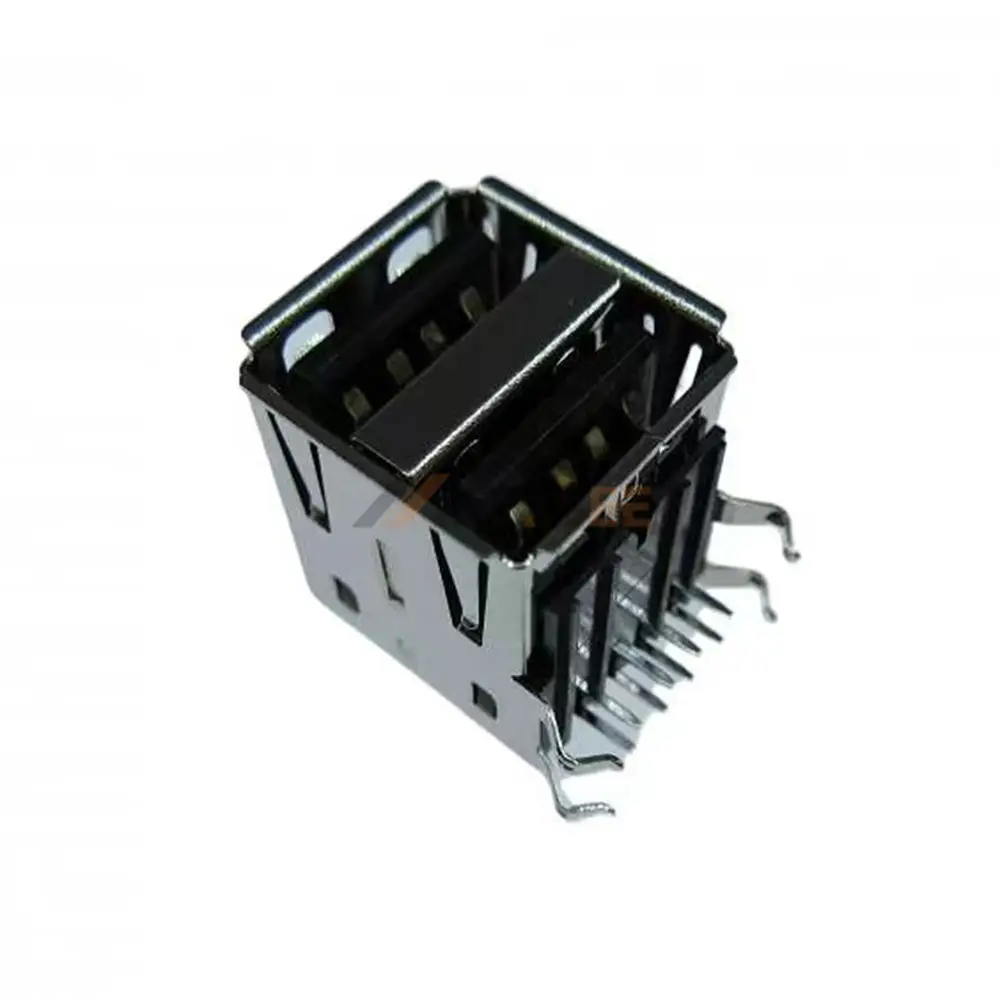

USB 2.0 Type A Jack Connector, Solder, 8 Pin, Dual Port, Thru-Hole, R/A
Introduction:
This dual-port receptacle features a robust 8-pin configuration and is engineered for through-hole mounting with a right-angle orientation, making it ideal for space-constrained PCB designs where vertical space is limited. Constructed from a brass shell with a durable nickel plating, this connector offers excellent resistance to corrosion and wear. The phosphor bronze contacts are finished with a gold plating, ensuring superior conductivity and a stable connection over countless mating cycles.
Engineered for consistent performance, this USB connector supports a standard current rating of 1A and a voltage rating of 30V AC/DC. It is built to withstand harsh environments, operating reliably within a wide temperature range of -40°C to 85°C. Safety and durability are further enhanced by its UL94V-0 flame-retardant rating, ensuring compliance with high safety standards. Whether used in consumer electronics, industrial controls, or communication equipment, this Type A dual-port connector provides a compact and dependable I/O solution for your PCB assembly needs.
Key Features
- Dual-Port Design: Features two USB 2.0 Type A receptacles in a single housing for space-saving connectivity.
- Right-Angle Orientation: Low-profile right-angle design allows for efficient PCB mounting near enclosure edges.
- Superior Contact Plating: Gold-plated phosphor bronze contacts ensure high signal integrity and corrosion resistance.
- Durable Construction: Features a tin-plated brass shell for enhanced durability and EMI shielding.
- Wide Operating Range: Reliably functions in extreme temperatures from -40°C to +85°C.
- High Safety Standard: UL94V-0 flame-retardant rating guarantees protection against fire hazards.
Main Specifications:
General Information:
| Product No.: | YC-USB-A-D-RA | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-A | |
| Brand: | Metabee | |
| Number of Contacts: | 8 Pin | |
| Number of Ports: | Dual Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru-Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Brass | |
| Shell plating: | Tin Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold plated | |
| Insulator: | PBT |
Electrical Performance:
| Rated Current: | 1A | |
| Rated Voltage: | 30VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 2.0 Type A Jack Connector:
USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
