USB 2.0 Type A Jack, 4 Pin, Thru-Hole, R/A
Introduction:
This single-port, 4-pin Type A receptacle offers efficient board integration, featuring a right-angle mounting orientation and a robust thru-hole PCB mount. It’s the ideal solution for developers and manufacturers seeking a durable and space-saving USB 2.0 interface.
Crafted for exceptional longevity and connectivity, this connector boasts a high-quality brass housing with a protective nickel plating, ensuring excellent corrosion resistance and structural integrity. The critical contacts are made from phosphor bronze and are meticulously gold-plated, guaranteeing superior conductivity and signal reliability over time. Electrically rated at 1.5A current and 30VAC voltage, and adhering to a UL94V-0 flame retardant standard, it prioritizes both safety and performance. Its impressive operating temperature range from -40°C to 85°C further underscores its suitability for demanding environments.
Key Features
- USB 2.0 Type A Jack: Standard single-port, 4-pin receptacle for broad compatibility.
- Right-Angle Thru-Hole PCB Mount: Space-efficient design for streamlined board integration.
- Durable Brass Housing: Nickel-plated brass construction for enhanced resilience and protection.
- Gold-Plated Phosphor Bronze Contacts: Ensures optimal signal integrity and long-term performance.
- Robust Electrical Specifications: Rated for 1.5A current and 30VAC voltage for stable operation.
- Wide Operating Temperature: Reliably functions from -40°C to 85°C with UL94V-0 flame rating.

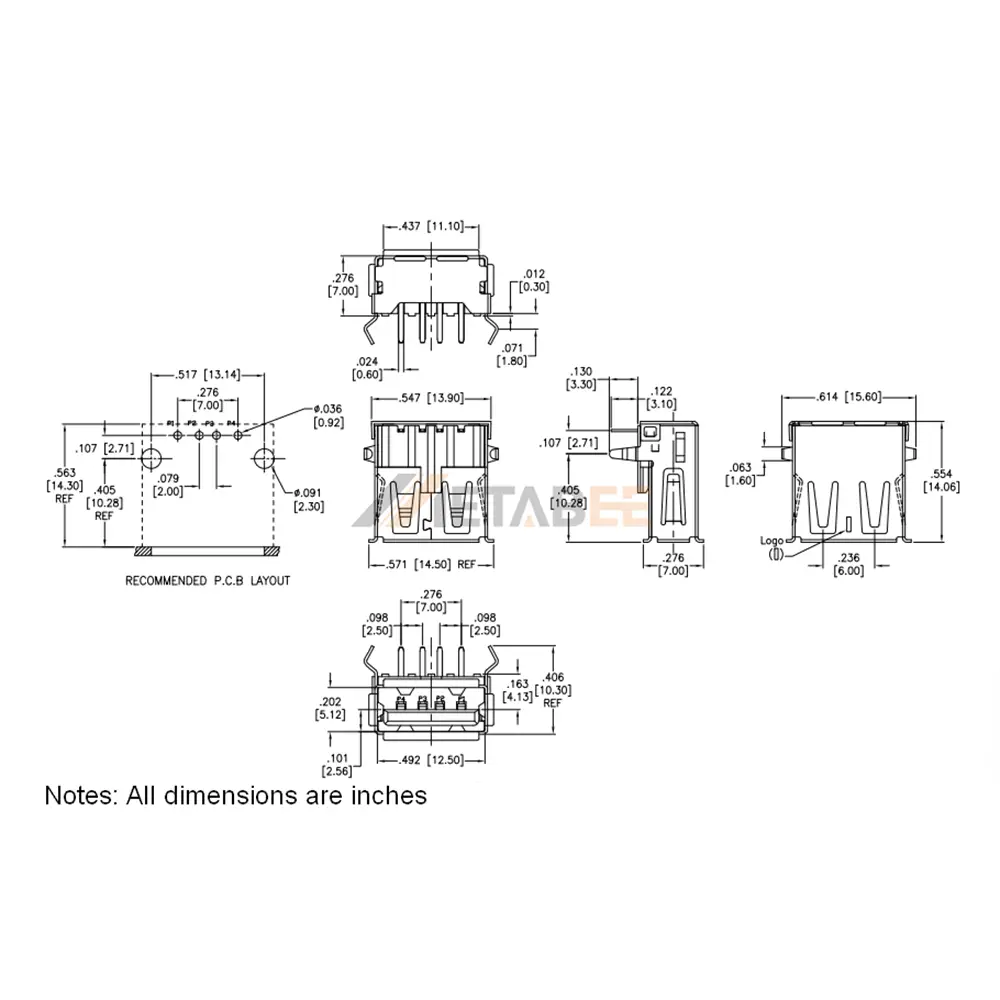

Main Specifications:
General Information:
| Product No.: | YC-USB-A-S-RA-HF-30 | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-A | |
| Brand: | Metabee | |
| Number of Contacts: | 4 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru-Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Brass | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold plated | |
| Insulator: | PBT |
Electrical Performance:
| Rated Current: | 1.5A | |
| Rated Voltage: | 30VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 2.0 Type A Jack:
USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
