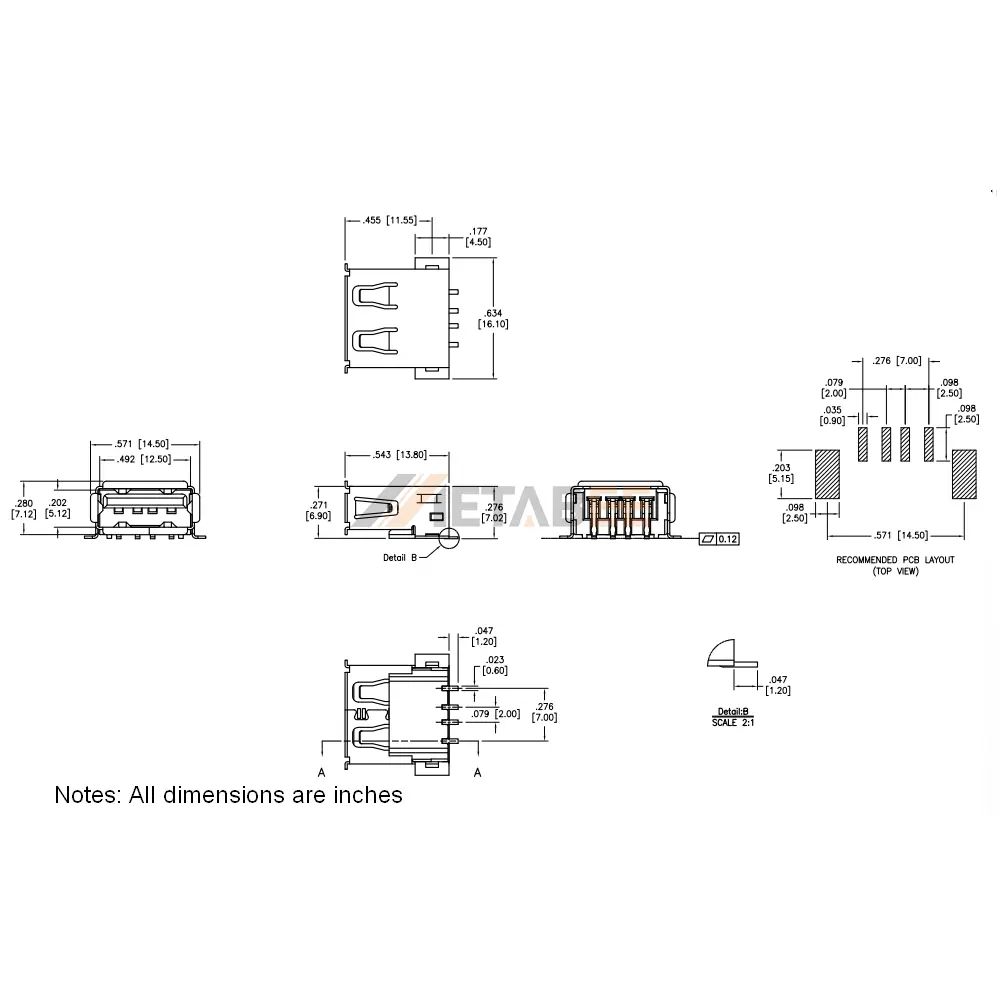

USB 2.0 Type A Jack, 4 Pin, SMT, R/A
Introduction:
Enhance your PCB design with this high-performance USB 2.0 Type A Jack, a right-angle (R/A) receptacle engineered for reliable data transfer and power delivery. This 4-pin connector features a standard Type A interface, making it the industry standard for connecting keyboards, flash drives, and various peripherals to printed circuit boards. The surface mount (SMT) design facilitates efficient automated assembly, while the right-angle orientation allows for low-profile, space-saving installations where the cable exits parallel to the board, ideal for compact electronic enclosures.
Constructed for durability and consistent signal integrity, this receptacle utilizes a brass shell with a nickel plating to ensure corrosion resistance and effective shielding. The copper alloy contacts feature a gold-plated finish, guaranteeing low contact resistance and a stable connection over thousands of mating cycles. Certified with a UL94V-0 flame retardant rating and capable of operating flawlessly in temperatures ranging from -40°C to 85°C, this component is built to meet rigorous safety standards and withstand harsh environmental conditions. With a robust rating of 1.5A and 30V AC, it provides a dependable interface for a wide range of consumer and industrial applications.
Key Features
- Standard Interface: USB 2.0 Type A Receptacle (Female) with 4 pins for universal compatibility.
- Space-Saving Design: Right-angle (R/A) orientation and SMT termination enable low-profile PCB mounting.
- Durable Construction: Brass shell with Nickel plating and Gold-plated Copper Alloy contacts for superior conductivity and corrosion resistance.
- Reliable Power Rating: Supports up to 1.5A of current and 30V AC for stable peripheral power delivery.
- High Safety Compliance: UL94V-0 flame retardant rating ensures protection against fire hazards.
- Wide Operating Range: Engineered to perform in extreme environments from -40°C to 85°C.
Main Specifications:
General Information:
| Product No.: | YC-USB-A-S-RA-TSMT-NP | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-A | |
| Brand: | Metabee | |
| Number of Contacts: | 4 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Brass | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | LCP |
Electrical Performance:
| Rated Current: | 1.5A | |
| Rated Voltage: | 30VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 2.0 Type A Jack:
USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
