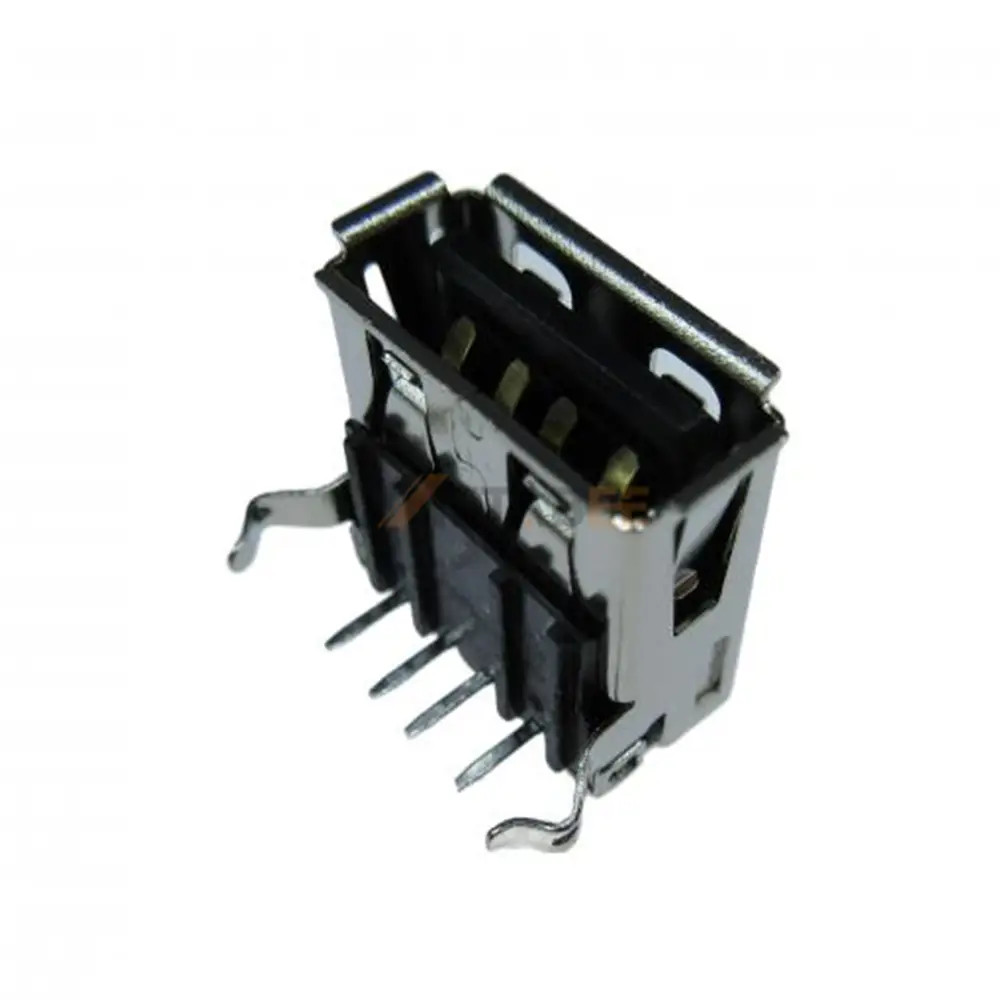

USB 2.0 Type A Female Connector, 4 Pin, Thru-Hole, Right Angle
Introduction:
Upgrade your hardware interface with our high-reliability USB 2.0 Type A Female Connector. This 4-pin receptacle is designed for Right Angle thru-hole mounting, making it an ideal choice for compact PCB layouts in consumer electronics, peripheral devices, and industrial controllers. Engineered for stability and longevity, the PCB mount design ensures a secure mechanical bond to the board, even under frequent mating cycles.
Constructed with premium Copper Alloy for both the shell and contacts, this connector provides exceptional conductivity and thermal stability. The shell is finished with Nickel plating for superior corrosion resistance, while the contacts feature Gold plating to ensure high-speed data integrity and prevent signal degradation. With an operating temperature range of -40°C to +85°C and a UL94V-0 flame retardant rating, it offers a safe and durable solution for diverse environmental conditions.
Key Features
- Standard Type A Interface: Reliable 4-pin single-port receptacle compatible with all USB 2.0 standards.
- Right Angle Mounting: Space-saving thru-hole design for easy integration onto horizontal PCBs.
- Gold-Plated Contacts: Copper alloy contacts with gold plating for optimized conductivity and minimal signal loss.
- Durable Housing: Nickel-plated copper alloy shell provides robust EMI shielding and corrosion protection.
- Safety & Compliance: Features a UL94V-0 flammability rating for enhanced fire safety.
- Industrial Temperature Range: Stable performance from -40°C to +85°C for demanding applications.
Main Specifications:
General Information:
| Product No.: | YC-USB-A-S-RA-30-HT | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-A | |
| Brand: | Metabee | |
| Number of Contacts: | 4 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru-Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Copper Alloy | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 1.5A | |
| Rated Voltage: | 30VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 2.0 Type A Female Connector:
USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
