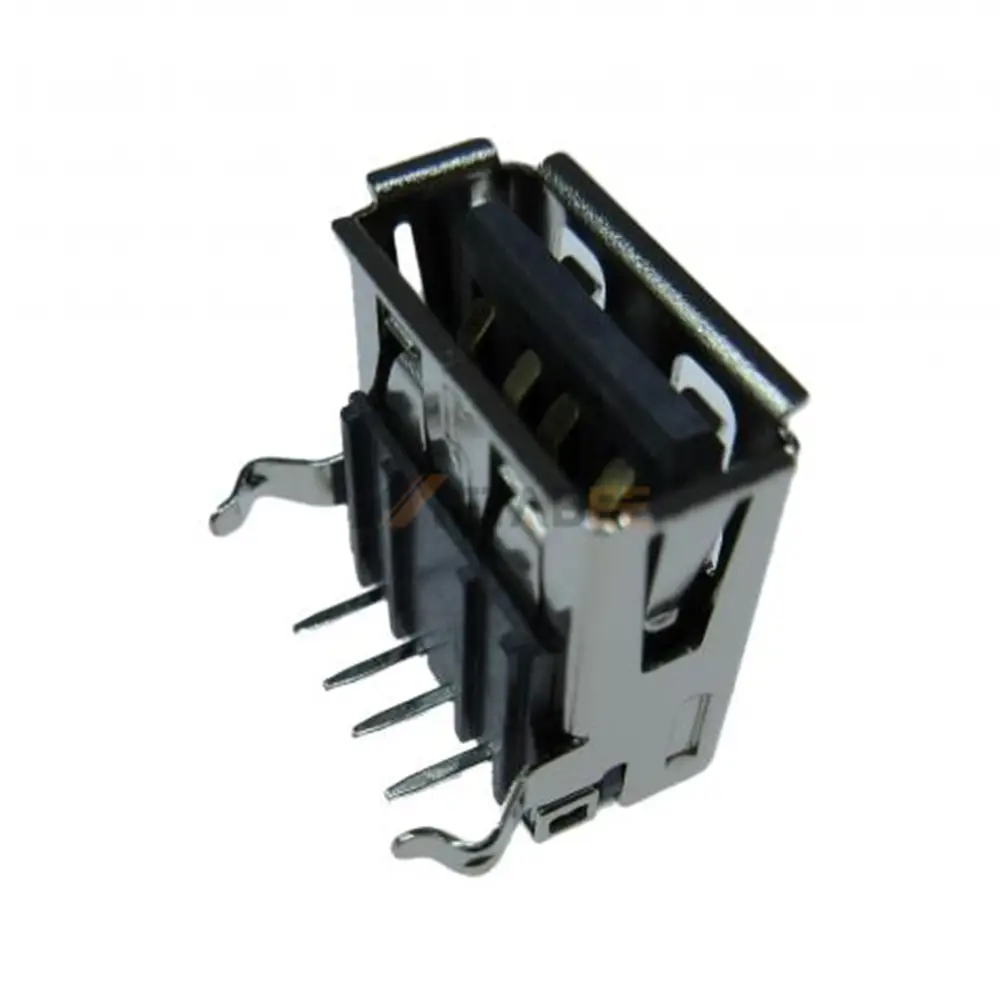

USB 2.0 Type A Female Connector, 4 Pin, PCB Thru-Hole, R/A
Introduction:
The USB 2.0 Type A female connector is a reliable interface component designed for PCB-mounted USB connectivity in a wide range of electronic devices. This single-port Type-A receptacle features a 4-pin configuration and right-angle through-hole mounting, making it ideal for space-efficient PCB layouts and stable mechanical retention. As a standard USB 2.0 interface, it supports data transmission speeds up to 480 Mbps and is widely used in computers, industrial equipment, and consumer electronics.
Constructed with a copper alloy shell with nickel plating, the connector offers excellent structural strength and corrosion resistance. The copper alloy contacts with gold plating ensure low contact resistance and reliable signal integrity during repeated mating cycles. The connector is rated for 1.5A current and 30VAC voltage, providing stable power and data transmission for USB devices.
Engineered for durability, the connector features a UL94V-0 flame-retardant rating and supports an operating temperature range of -40°C to +85°C, making it suitable for demanding environments such as industrial control systems, communication equipment, and embedded electronics. Its robust construction and reliable electrical performance ensure long-term stability in high-cycle USB applications.
Key Features
- USB 2.0 Type-A female receptacle, single port, 4-pin design
- Right-angle PCB through-hole mounting for secure board installation
- Copper alloy shell with nickel plating for durability and corrosion resistance
- Gold-plated copper alloy contacts for stable signal transmission
- Rated current 1.5A, rated voltage 30VAC for reliable power delivery
- Operating temperature −40°C to +85°C, UL94V-0 flame-retardant housing
Main Specifications:
General Information:
| Product No.: | YC-USB-A-S-RA-HT | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-A | |
| Brand: | Metabee | |
| Number of Contacts: | 4 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru-Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Copper Alloy | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 1.5A | |
| Rated Voltage: | 30VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 2.0 Type A Female Connector:
USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
