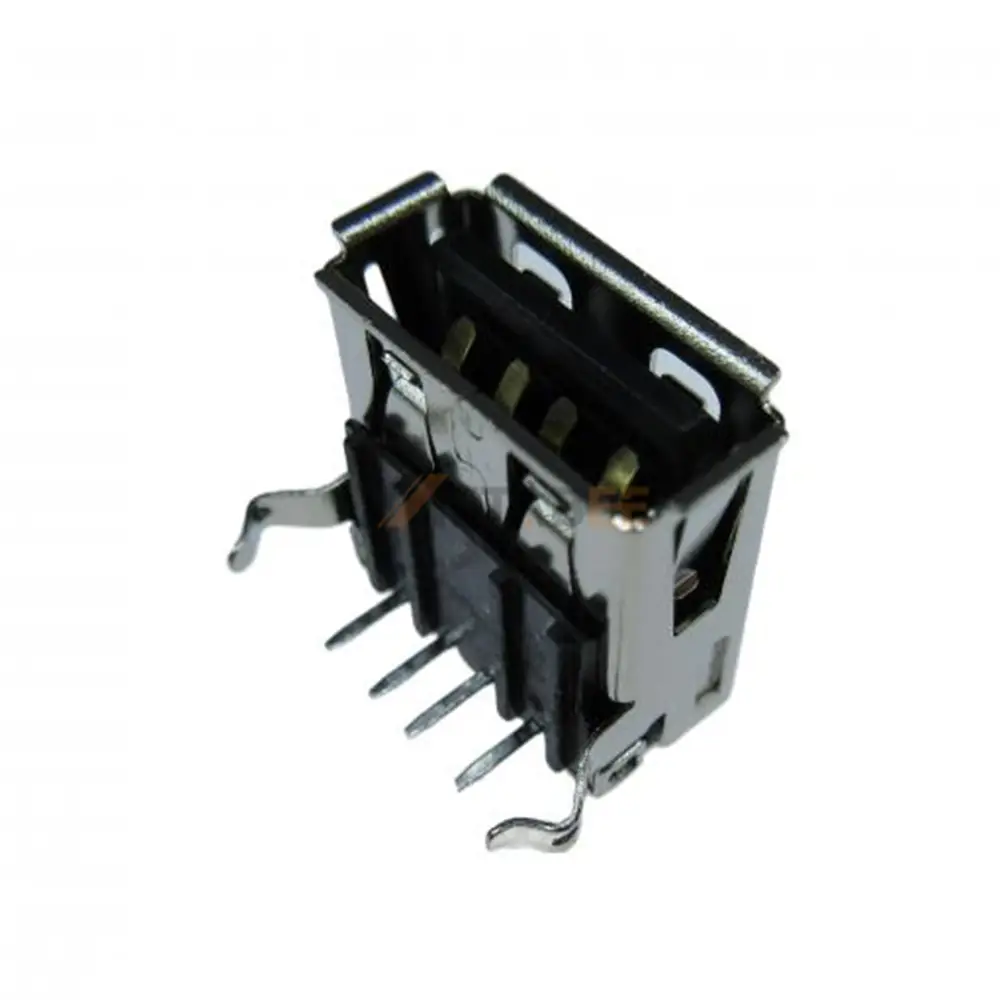

USB 2.0 Connector, Type A Receptacle, 4 Pin, Thru-Hole, Right Angle
Introduction:
Enhance your PCB design with our high-performance USB 2.0 Connector, featuring a Type A Receptacle configuration. Engineered for reliable data transfer and power delivery, this 4-pin connector is designed for thru-hole mounting with a right-angle orientation, making it ideal for space-constrained applications where a low-profile installation is required. Constructed from a durable Copper Alloy with a protective Nickel-plated outer shell, this connector ensures long-lasting structural integrity and resistance to corrosion.
Internally, the contacts are crafted from Copper Alloy and feature a Gold-plated finish, guaranteeing excellent conductivity and signal integrity for USB 2.0 standards. This single-port receptacle is rated for 1.5A of current and 30V AC, providing dependable performance for a wide range of consumer electronics and industrial peripherals. Furthermore, it adheres to the UL94V-0 flame retardant standard and is engineered to operate reliably in extreme temperatures ranging from -40°C to 85°C, ensuring safety and durability in demanding environments.
Key Features
- Standard Interface: USB 2.0 Type A Receptacle, single port with 4-pin configuration.
- Space-Saving Design: Right-angle orientation with thru-hole mounting for secure PCB attachment.
- Superior Conductivity: Gold-plated contacts over a copper alloy base for reliable signal transmission.
- Robust Construction: Durable Copper Alloy shell with a corrosion-resistant Nickel plating.
- Reliable Ratings: Supports up to 1.5A current and 30V AC for stable power delivery.
- High Durability: UL94V-0 flame-retardant rating with a wide operating temperature range (-40°C to 85°C).
Main Specifications:
General Information:
| Product No.: | YC-USB-A-S-RA-30-WT-HT | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-A | |
| Brand: | Metabee | |
| Number of Contacts: | 4 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru-Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Copper Alloy | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 1.5A | |
| Rated Voltage: | 30VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 2.0 Connector, Type A Receptacle:
USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
