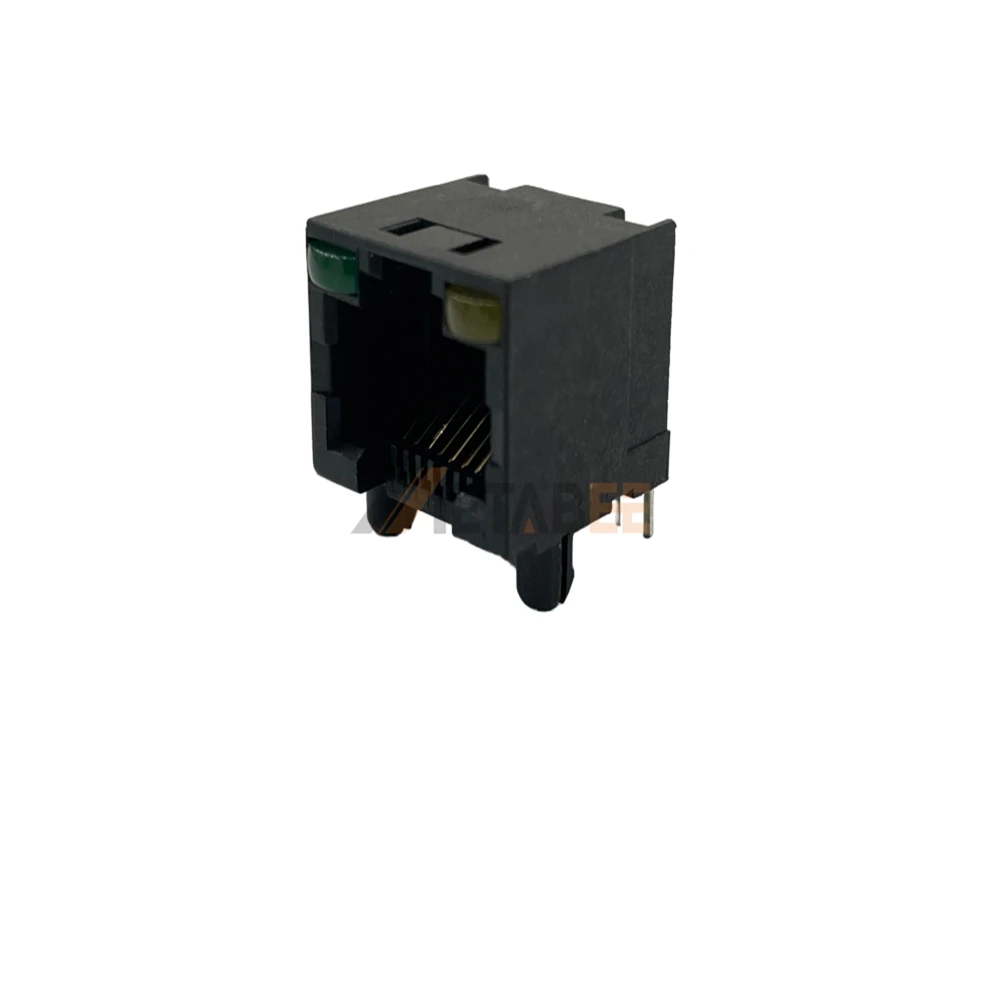

Unshielded RJ45 PCB Jack with LED, 8P8C, 1 Port, Tab-Up, Through Hole, R/A, Green/ Yellow-Green/ Yellow
Introduction:
This is a single port unshielded RJ45 PCB jack with led indicators designed for secure through hole mounting on high-speed networking boards. It features a glass reinforced PBT housing for exceptional structural strength and high thermal stability during industrial wave soldering processes. The 8P8C interface utilizes Gold over Nickel plated Phosphor Bronze contacts to ensure a high conductivity path for 1.5A current loads. Utilizing a Tab-Up right angle configuration, this component effectively saves vertical board space while providing a superior insulation resistance of 1000MΩ Min. Technicians utilize this modular interface for telecommunication equipment and networking hardware requiring immediate visual link diagnostics across a range of -40°C to +85°C.
Key Features
- Integrated Status LEDs: Provides immediate visual diagnostics for network activity.
- Tab-Up Configuration: Optimizes vertical space for specialized board layouts.
- Glass Reinforced PBT: Ensures high thermal stability and structural durability.
- Gold Plated Contacts: Delivers superior conductivity and lasting signal integrity.
- Wide Temperature Range: Performs reliably between -40°C and +85°C.
Main Specifications:
General Information:
| Product No.: | MTJ-88ARX1-L16 | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | Left: Green/ Yellow, Right: Green/ Yellow |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC or AC Peak for 1 minute (C-C), 1500 VDC or AC Peak for 1 minute (C-S) |
Materials and Plating:
| Housing Material: | PBT, glass reinforced | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
