Unshielded RJ45 Modular Jack Connector, 8P8C, Tab-Up, Through Hole, R/A, No LED
Introduction:
This is a single port unshielded RJ45 modular jack connector designed for stable through hole mounting on printed circuit boards. It is built with a black Hi-temp Nylon housing that allows the component to withstand the heat of industrial wave soldering processes without warping. The Phosphor Bronze contacts are finished with Gold over Nickel to ensure a high conductivity path and reliable data flow for 8P8C interfaces. Utilizing a Tab-Up right angle configuration, this unit optimizes board space while maintaining a high insulation resistance of 1000MΩ Min. It effectively supports a 1.5A current rating and can handle operating temperatures from -40°C up to +85°C for long-term consistency. Technicians utilize this modular interface for standard networking hardware and office telecommunication devices requiring reliable THT connectivity.
Key Features
- Tab-Up Orientation: Optimizes vertical space for specialized board layouts.
- 8P8C RJ45 Interface: Provides standard modular connectivity for various systems.
- Hi-Temp Nylon Housing: Survives intense heat during industrial wave soldering.
- Gold Plated Contacts: Delivers superior conductivity and lasting oxidation resistance.
- Wide Temperature Range: Performs reliably between -40°C and +85°C.
Main Specifications:
General Information:
| Product No.: | MTJ-882BX1-HT- TR |
|
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | 35mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Housing Material: | Hi-temp Nylon | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

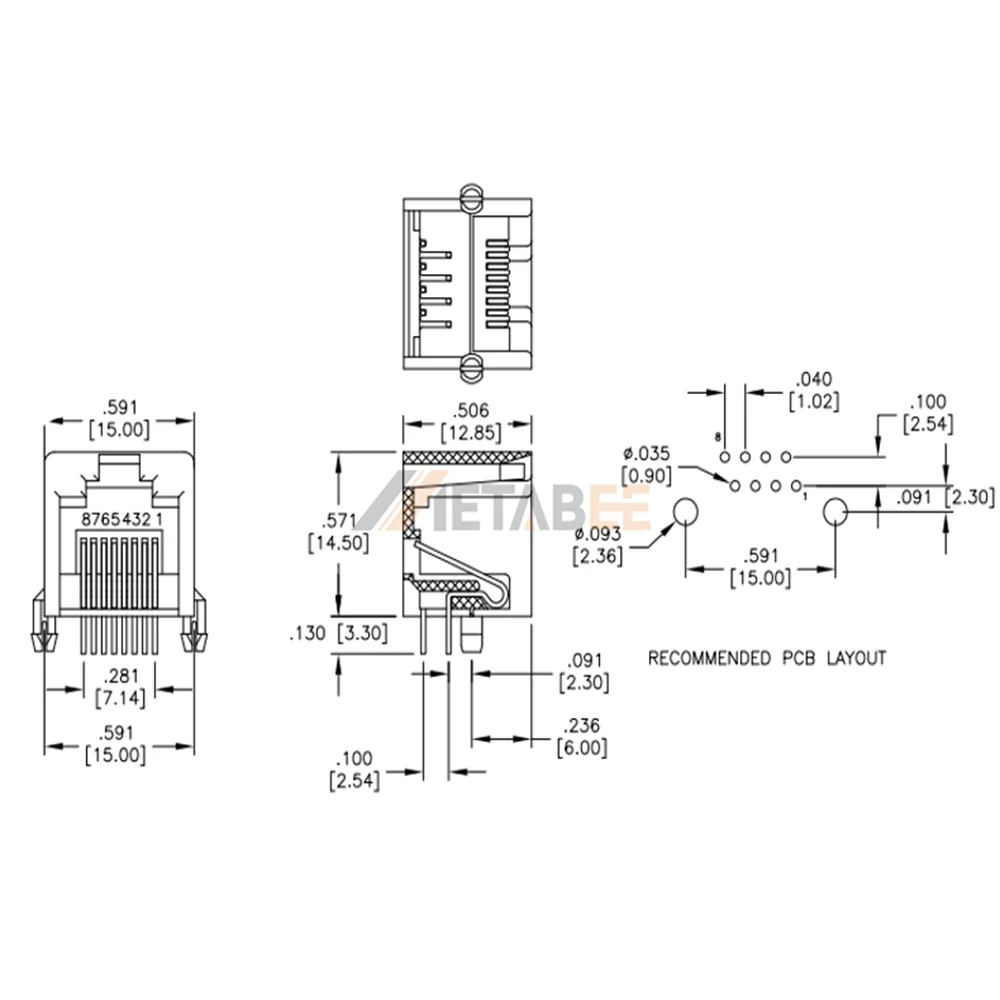

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
