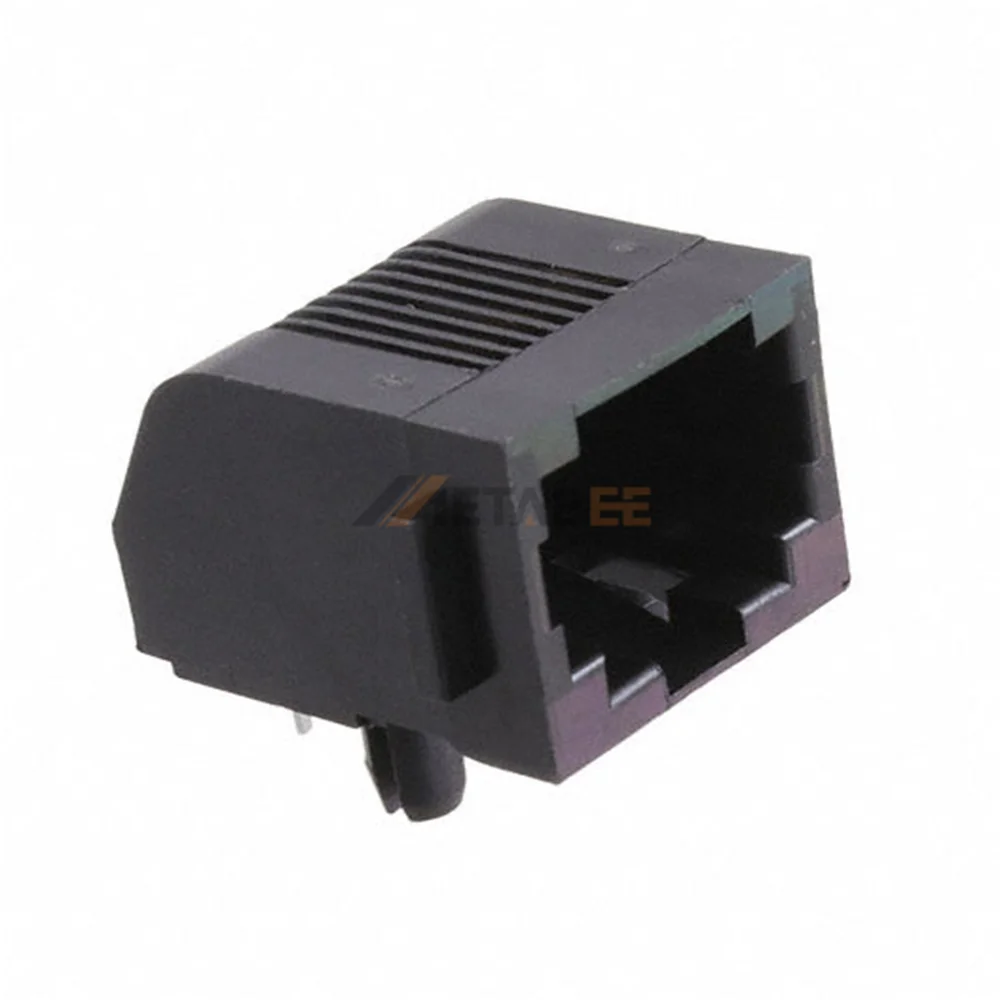

Unshielded 8P8C RJ45 Modular Jack Ethernet Connector, 1 Port, Tab-Down, Through Hole, R/A, No LED
Introduction:
Reliable network links depend on the 8p8c modular jack, which serves as a single-port unshielded interface for high-density Ethernet applications. Standard Fast Ethernet data rates are supported flawlessly through the 8P8C port configuration. Industrial resilience is maintained across a wide -40°C to +85°C operating temperature range for rugged environments. Robust black PBT housing provides high mechanical stability for unshielded board designs. Gold over nickel plating on phosphor bronze contacts strictly maintains electrical resistance below 20 miliohms in this 8p8c modular jack. Secure PCB termination relies on the right angle through hole configuration. Network switches, industrial routers, and automated controllers frequently utilize this specialized component.
Key Features
- 8P8C RJ45 Design: Facilitates standard eight-wire Ethernet network connections.
- Industrial Temperature Range: Operates reliably between -40°C and +85°C.
- Unshielded UTP Profile: Optimizes board space for cost-effective layouts.
- Secure THT Mounting: Ensures stable right angle mechanical PCB alignment.
- Low Resistance Contacts: Gold plating ensures conductivity below 20 miliohms.
Main Specifications:
General Information:
| Product No.: | MTJ-880X1 | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC RMS 60HZ for 1 minute |
Materials and Plating:
| Housing Material: | PBT | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
