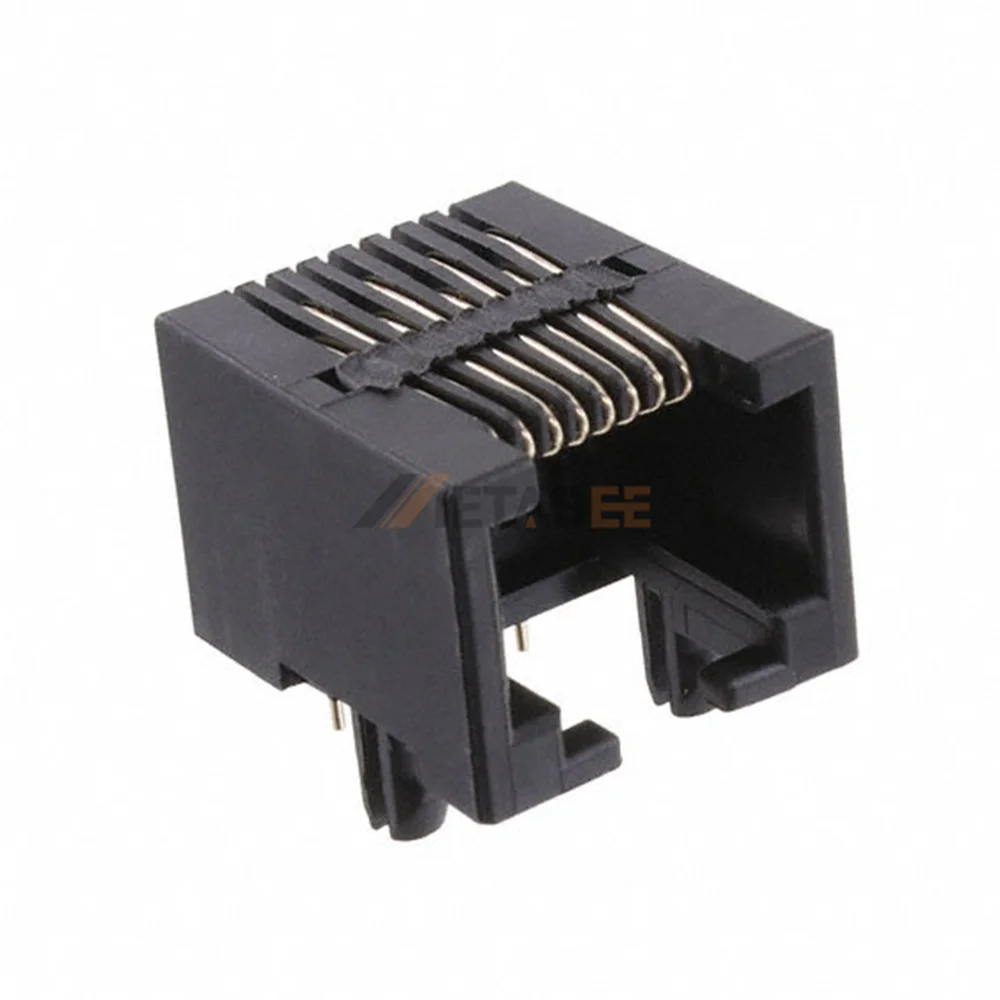

Unshielded 8P8C RJ45 Modular Jack, 1 Port, PCB Mount, Tab-Down, R/A, No LED
Introduction:
This is a single port unshielded 8P8C RJ45 modular jack engineered for stable right angle through hole mounting on printed circuit boards. It features a rugged black PBT housing that maintains a high insulation resistance of 1000MΩ Min even in demanding thermal environments. The Gold over Nickel plated Phosphor Bronze contacts provide a low-resistance electrical path for reliable data transmission while supporting a 1.5A current rating. Utilizing a Tab-Down orientation, this component withstands dielectric voltages up to 1000 VDC and performs consistently across an extensive temperature range of -40°C to +125°C. Technicians utilize this industrial-grade interface for automotive modules and networking gear that require lasting durability without the need for external shielding.
Key Features
- Operating Temperature: Performs reliably from -40°C up to +125°C.
- Gold Plated Contacts: Ensures superior conductivity and lasting signal stability.
- High Insulation Resistance: Maintains 1000MΩ Min for enhanced electrical safety.
- Durable PBT Housing: Survives intense heat during industrial wave soldering.
- 8P8C Tab-Down Design: Optimizes mechanical fit for standard PCB layouts.
Main Specifications:
General Information:
| Product No.: | MTJ-885X1 | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC or AC Peak for 1 minute |
Materials and Plating:
| Housing Material: | Hi-temp thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40℃ to +125℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
