Type 7 Power & Signal Charging Gun for LEV, 2+1+4 Pin
Introduction

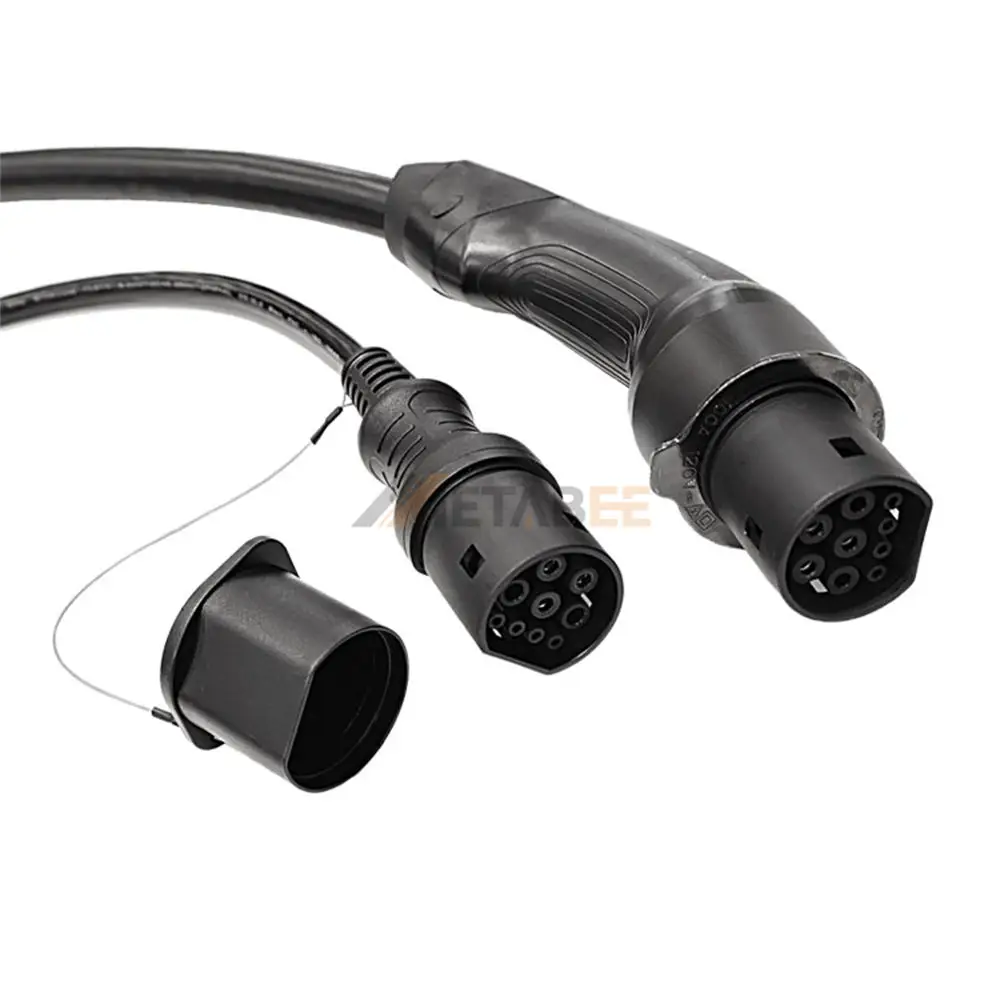

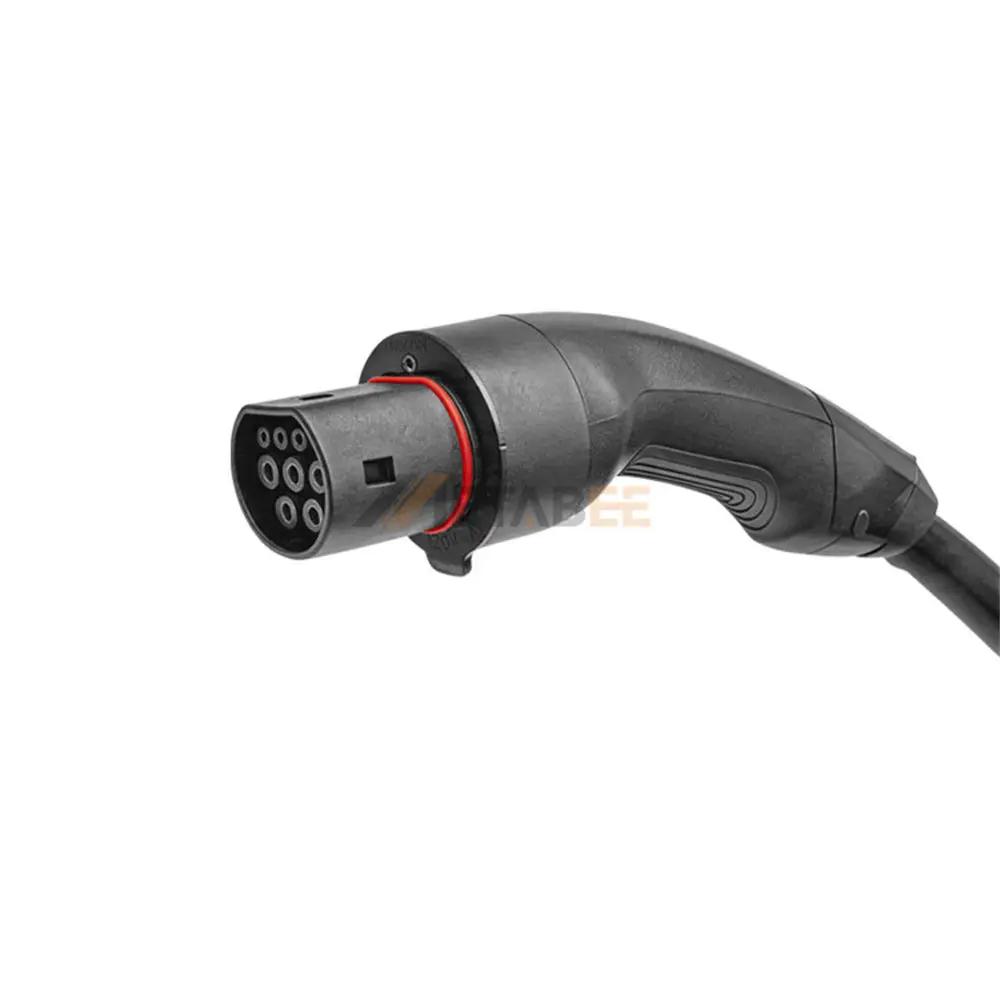

Type 7 power & signal charging gun for LEV, 2+1+4 pin. This charging gun combines two power pins, one grounding pin, and four signal pins, supporting simultaneous power delivery and signal communication for light electric vehicles. The UL94V-0 flame-retardant housing and IPX5 water-resistant rating ensure safe, dependable operation in wet and dusty conditions. Rated from -40°C to 105°C, it maintains stable performance across extreme temperature ranges.
Key Features:
- 2+1+4 pin power, ground, and signal layout
- IPX5 water-resistant protection
- UL94V-0 flame-retardant housing
- Wide -40°C to 105°C operating range
- Stable power delivery for LEV charging
- Reliable signal transmission in one gun
Main Specifications:
General Information:
| Part No.: | YC-E1001-0042 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | 2+1+4 Pin | |
| Wire Gauge: | Power 4mm²/Max, Signal 20AWG/Max |
|
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 120V DC (Power), 30V DC (Signal) |
|
| Rated Current: | 100A+25A+5A | |
| Insulation Resistance: | N/A | |
| Withstanding Voltage: | N/A | |
| Durability (Mating): | ≥10000 Cycles |
Environmental Performance:
| IP Rating: | IPX5 | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |
Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
Factory pricing and exceptional product quality. Get a free quote now!
