Surface Mount RJ45 Modular Jack without LEDs, 8P8C, 1 Port, Unshielded, Tab-Down, Right Angle
Introduction:
Designed for high-density PCB layouts, this surface mount RJ45 jack offers a high-performance 8P8C interface for modern networking systems. It features an unshielded single port configuration with a right angle orientation, making it ideal for streamlined hardware designs. The housing consists of hi-temp thermoplastic that withstands the extreme heat during industrial reflow soldering processes. By utilizing a tab-down latch design, the connector ensures compatible integration with specific chassis configurations. Gold-plated phosphor bronze contacts provide superior electrical conductivity and long-lasting protection against corrosion. With a current rating of 1.5A, this modular component delivers stable data transmission for various telecommunication systems.
Key Features
- Surface Mount Design: Facilitates automated assembly for high-density PCB layouts.
- Hi-Temp Thermoplastic: Housing withstands extreme heat during reflow soldering processes.
- Gold Plated Contacts: Phosphor bronze terminals ensure superior electrical signal conductivity.
- 1.5A Current Rating: Provides robust power delivery for diverse networking applications.
- Tab-Down Latch: Bottom-latch configuration meets specific mechanical chassis requirements.
Main Specifications:
General Information:
| Product No.: | MTJ-88CPX1-RF1-PG-SMT | |
| Series: | MTJ | |
| Category: | High Speed RJ45 Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Speed: | N/A | |
| Performance Category: | N/A | |
| Integral Magnetics: | No | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC or 1500 VDC RMS for 1 minute |
Materials and Plating:
| Housing Material: | Hi-temp Thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Finish: | Gold Plating | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |

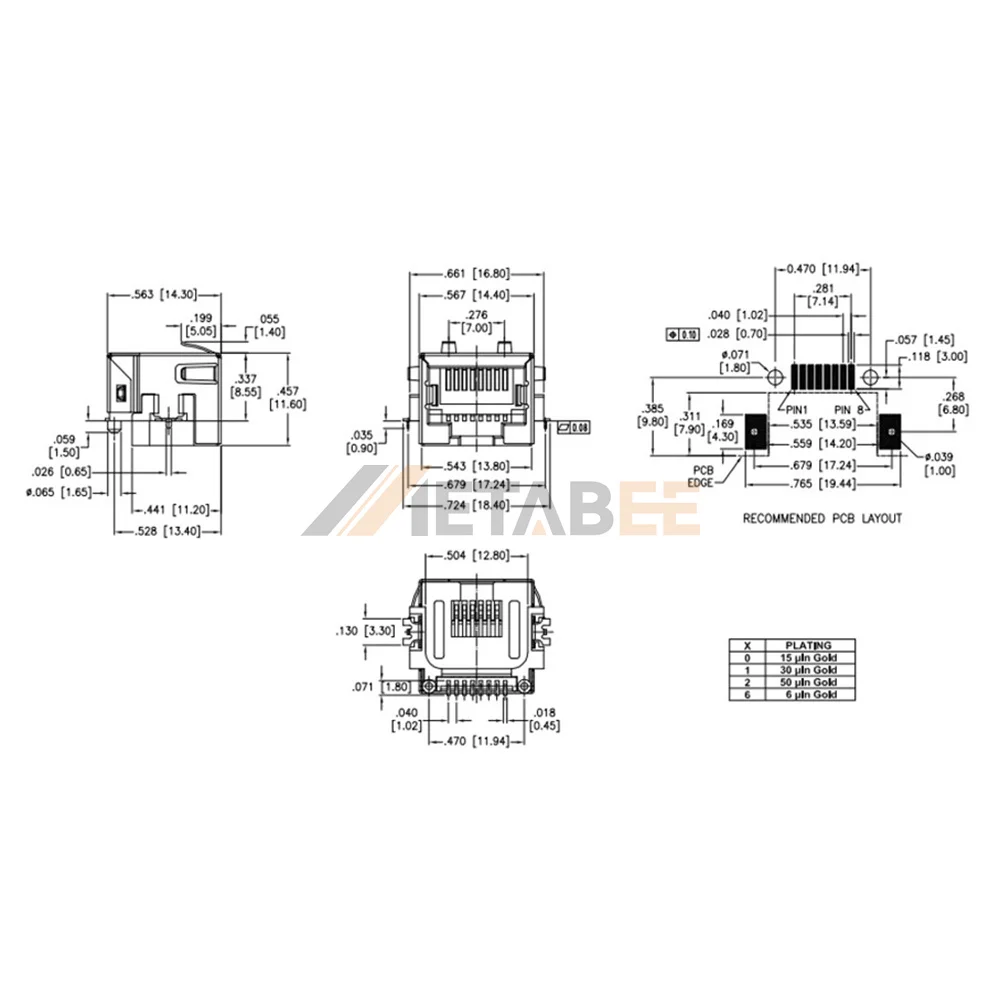

Structure of Modular Jack
