Introduction:
Modern automated assemblies demand highly efficient components, and the surface mount magjack RJ45 flawlessly powers standard 10/100Base-T PoE networks. A premium nickel-plated brass shield entirely envelops the black hi-temp thermoplastic housing to reject severe electromagnetic interference across 0°C to 70°C commercial temperatures. Precise printed circuit board alignment depends on a practical board guide integrated seamlessly into the right-angle, tab-up architecture. Space-conscious designs benefit immensely from the streamlined profile that operates cleanly without visual LED indicators. Furthermore, gold-plated copper alloy contacts strictly maintain electrical resistance below 20mΩ to secure long-term signal clarity and reliable power delivery.
Key Features
- 10/100 Base-T PoE: Delivers Fast Ethernet data and power transmission seamlessly.
- Surface Mount Design: Hi-temp thermoplastic incorporates a practical board guide.
- Brass Metal Shielding: Nickel-plated housing completely blocks severe electromagnetic interference.
- No LED: Compact tab-up profile operates without visual status indicators.
- Low Resistance Contacts: Gold-plated copper alloy strictly maintains <20mΩ electrical resistance.

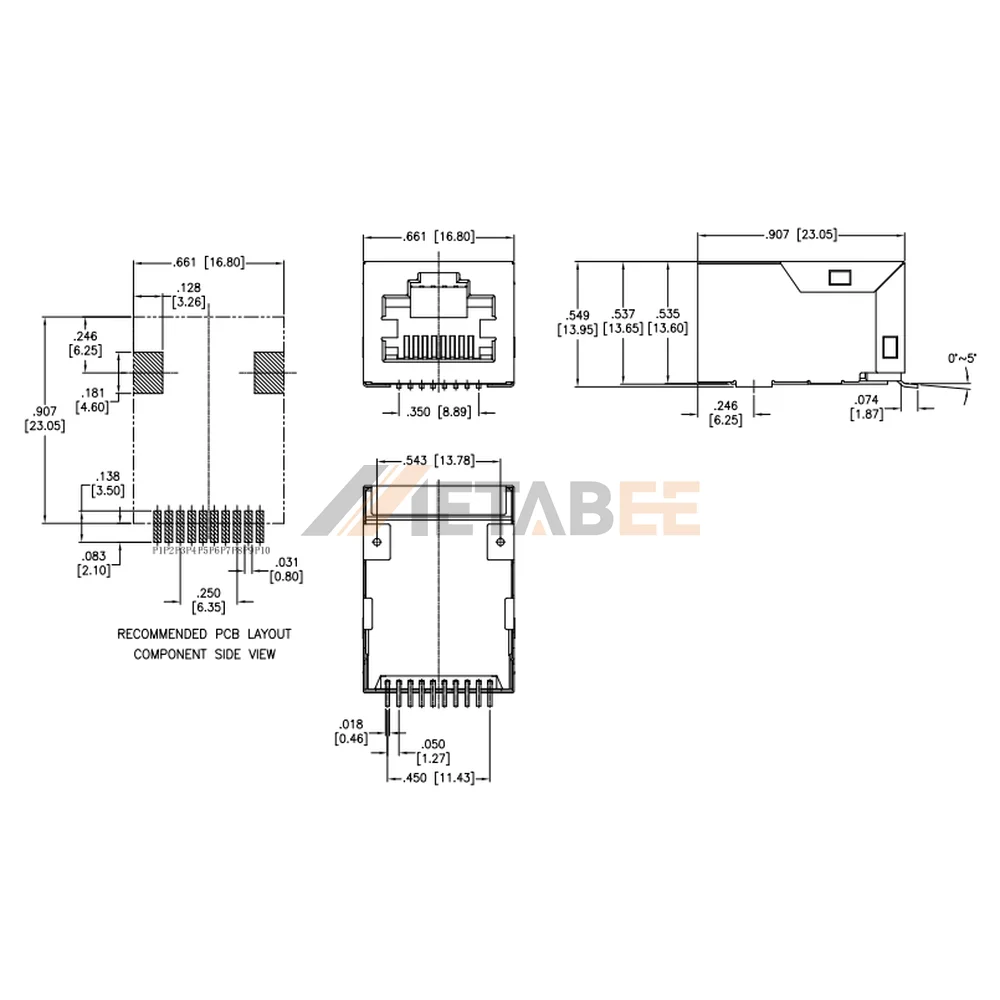

Main Specifications:
General Information:
| Product No.: | MTJ-88TULX1-FS-NP-SMT-M360C-TR | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Speed: | 10/100Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Supports PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | No LED |
Electrical:
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Hi-temp Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ +70°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
