Surface Mount Ethernet PCB Jack Module Connector, 8P8C, 1 Port, Unshielded, Tab-Up, R/A, Green/Yellow
Introduction:
This is a single port surface mount ethernet pcb connector designed for high-efficiency automated assembly on modern networking boards. It features a hi-temp thermoplastic housing that is specifically engineered to survive intense reflow soldering processes without any structural deformation. The Phosphor Bronze contacts are finished with Gold over Nickel plating to ensure high conductivity and signal stability for 8P8C interfaces. Utilizing a Tab-Up right angle configuration, this unshielded component optimizes vertical space while providing immediate link diagnostics via integrated Green and Yellow LEDs. Technicians utilize this reliable interface for modern telecommunication devices and networking hardware requiring a compact SMT footprint.
Key Features
- Surface Mount Design: Optimized for high-speed automated SMT assembly processes.
- Integrated Status LEDs: Provides instant visual feedback for network activity.
- Hi-Temp Thermoplastic: Survives intense heat during industrial reflow soldering.
- Gold Plated Contacts: Delivers superior conductivity and lasting signal stability.
- Tab-Up Orientation: Optimizes vertical clearance for specialized board layouts.
Main Specifications:
General Information:
| Product No.: | MTJ-88ARX1-SMT-LH-TR | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 Vrms for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

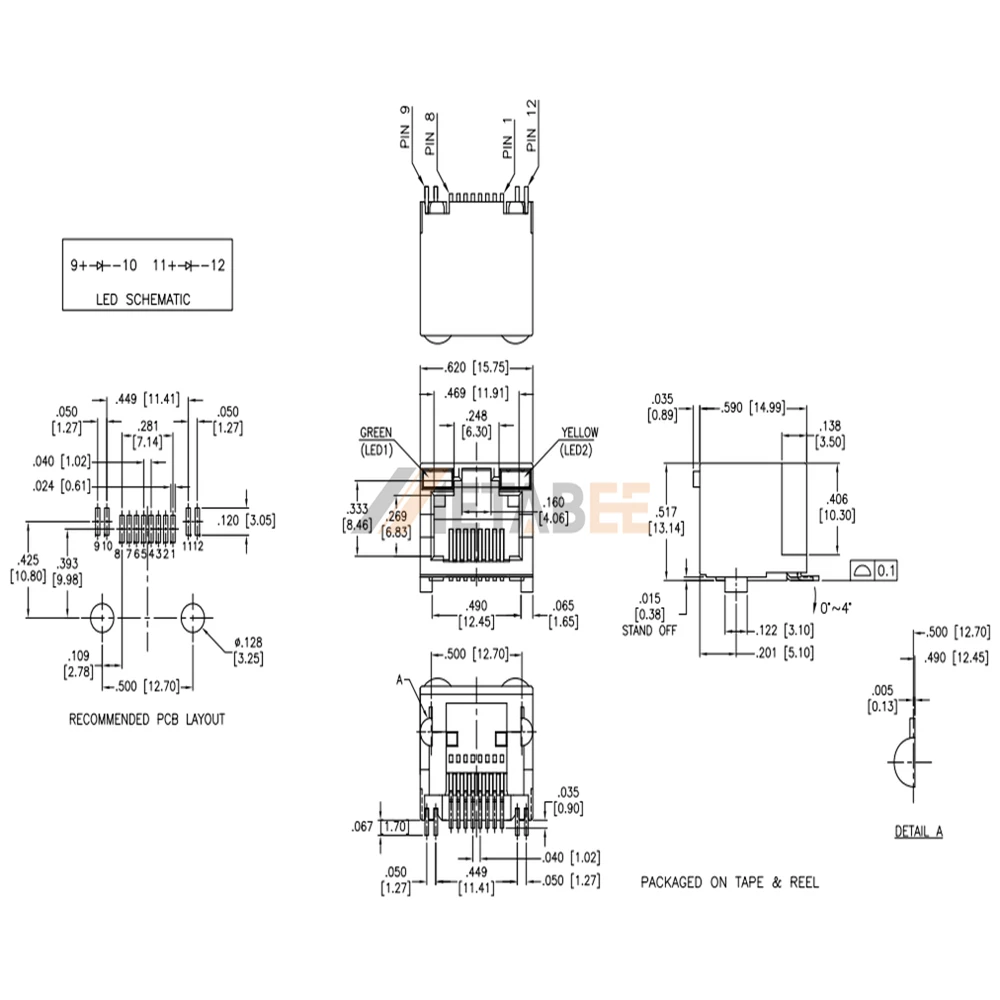

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
