Straight RJ45 Through Hole Connector, Integrated Magnetics, Cat8 Jack, 25G Base-T, Shielded
Introduction:
This advanced straight rj45 magjack is engineered for next-generation network infrastructures. It supports ultra-fast 25G Base-T speeds and complies with rigorous Cat8 performance standards. The component features integrated magnetics to ensure optimal signal integrity by filtering noise within a compact footprint. Designed with a vertical orientation, it utilizes through-hole mounting to provide a secure and mechanically stable connection to the circuit board. The robust metal shielding effectively minimizes electromagnetic interference for consistent data transmission. It is an ideal solution for high-density data centers and enterprise servers requiring extreme bandwidth and durability.
Key Features
- 25G Base-T Performance: Supports ultra-high-speed data rates up to 25 Gbps.
- Cat8 Standard Compliance: Meets the highest frequency requirements for modern networking.
- Integrated Magnetics: Built-in filtering improves signal quality and saves space.
- EMI Shielding: Metal housing blocks external interference for stable connections.
- Through Hole Mounting: Solder tails provide superior mechanical retention and stability.
Main Specifications:
General Information:
| Product No.: | MTJ-88AX1-FSN-STP-LH-M236BC-WOT | |
| Series: | MTJ | |
| Category: | High Speed RJ45 Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 25G Base-T | |
| Performance Category: | CAT8 | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 2250 VDC for 1 minute |
Materials and Plating:
| Housing Material: | Hi-temp Thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold Plating | |
| Shield Material: | Brass, Nickel Plated |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |

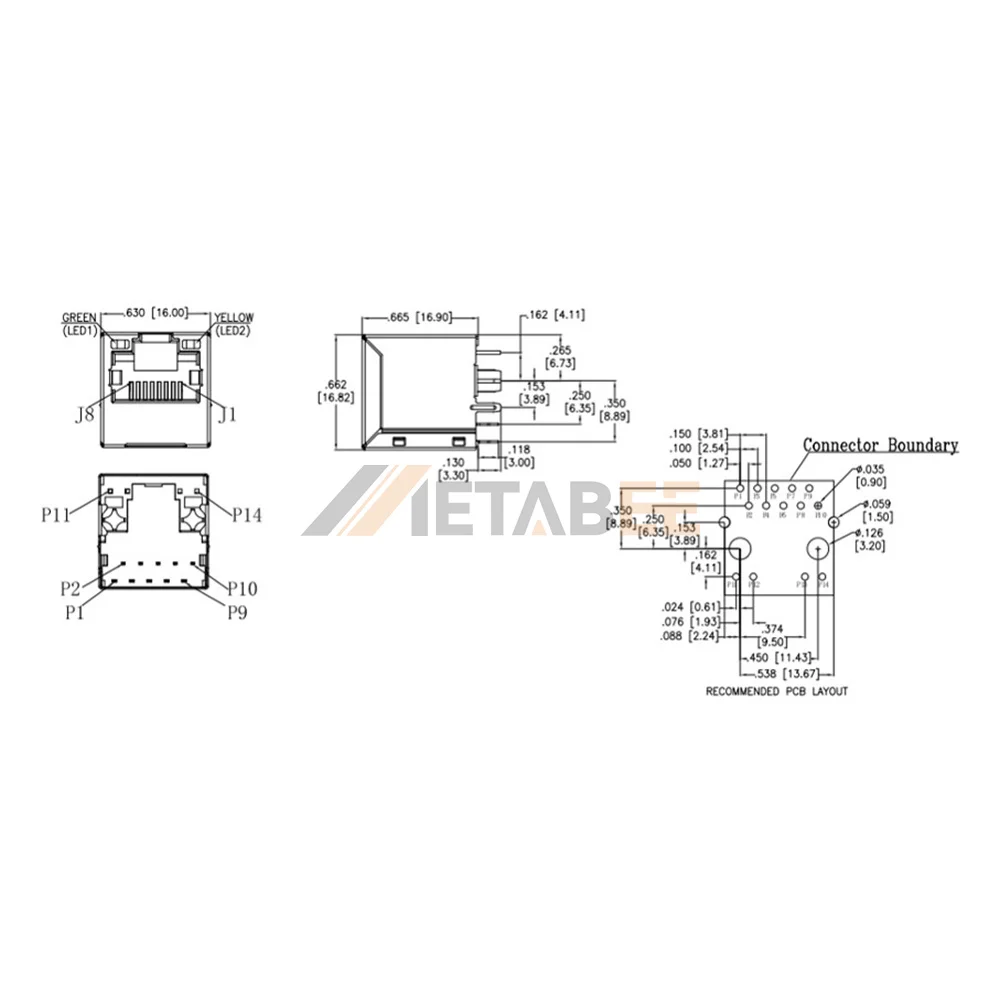

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
