Straight RJ45 PCB Mount Jack 8P8C, 1 Port, Integrated Magnetics, Shielded, Through Hole
Introduction:
Designed for gigabit ethernet applications, this rj45 pcb mount jack provides a high-performance vertical interface for modern networking systems. It features integrated magnetics that effectively filter noise and ensure superior 1G Base-T signal integrity within a compact footprint. The single port 8P8C configuration is encased in a full nickel-plated copper alloy shield to prevent electromagnetic interference. Its straight, top-entry orientation is ideal for specific board layouts where horizontal space is limited. Constructed with a durable PBT insulator and gold-plated copper alloy contacts, this through-hole connector ensures a secure mechanical bond and reliable long-term electrical conductivity in industrial environments.
Key Features
- Integrated Magnetics: Built-in filtering ensures 1G Base-T signal integrity.
- Full Shielding: Nickel-plated copper alloy housing blocks external interference.
- Vertical Orientation: Straight top-entry design optimizes specific board layouts.
- Gold-Plated Contacts: Copper alloy terminals provide superior electrical conductivity.
- Through Hole Mounting: Solder tails offer strong mechanical stability on PCBs.
Main Specifications:
General Information:
| Product No.: | MTJ-88CPX1-FSJ-M75 | |
| Series: | MTJ | |
| Category: | High Speed RJ45 Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 1G Base-T | |
| Performance Category: | CAT8 | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-up | |
| Shielding: | Full Shield | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | 35mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC for 1 minute |
Materials and Plating:
| Housing Material: | PBT | |
| Housing Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold Plating | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |

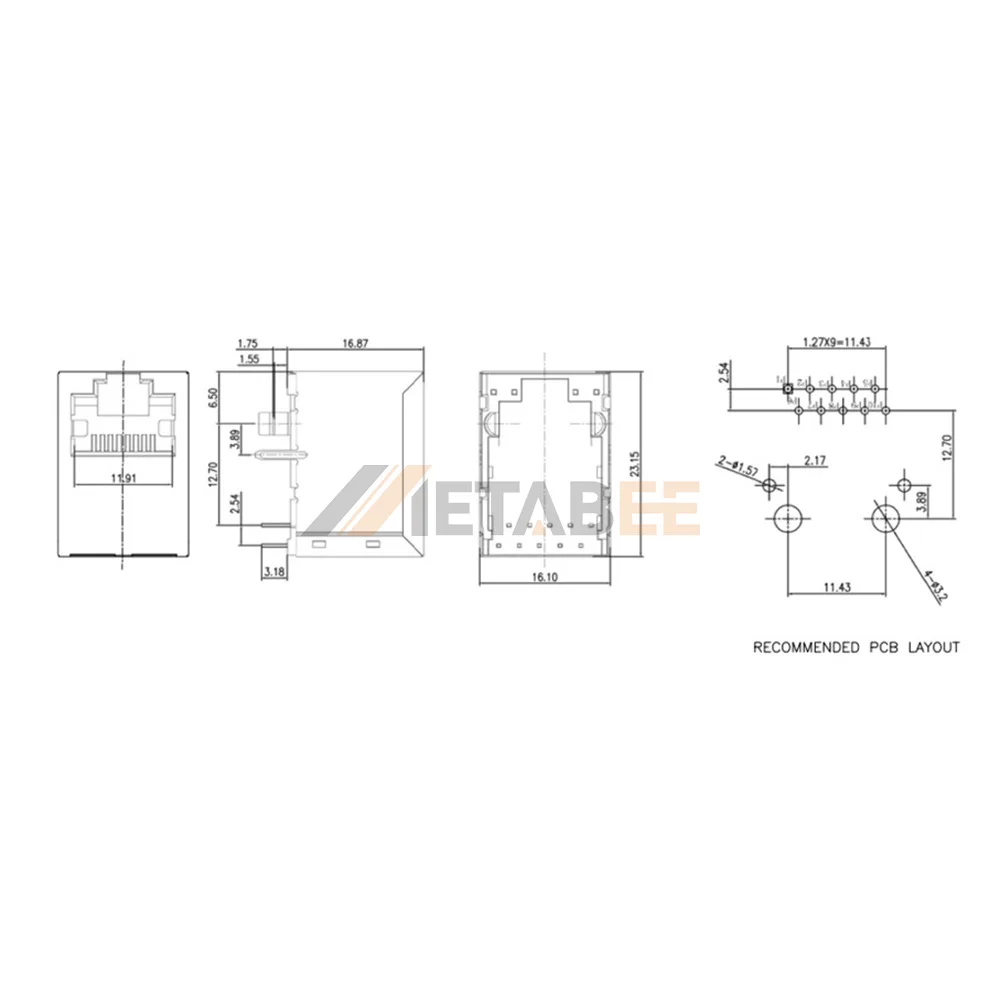

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
