Introduction:
This magnetic 4 pin connector is a straight male terminal designed for precise electrical docking on a compact 1.80mm pitch. It features a rounded rectangular housing made from PA46 material to ensure mechanical stability during repeated mating. The assembly utilizes 5u” gold-plated brass contacts to support a 2A maximum current at 12V DC while maintaining low contact resistance. With a 0.8mm working stroke and a tested lifespan of 30,000 cycles, it provides consistent electrical connectivity. This component serves as a reliable charging and data interface for modular handheld devices and smart wearables requiring automatic magnetic alignment.
Key Features
- Magnetic Alignment: Magnetic head enables automatic self-aligning secure docking.
- Rated Power: Supports 2A current and 12V DC power delivery.
- Mechanical Durability: Tested for 30,000 cycles ensuring long service life.
- Gold Plated: Gold-plated brass maintains low 30 mohms resistance.
- Compact Design: 1.80mm pitch optimizes space for high-density boards.
Main Specifications:
General Information:
| Product No.: | PH1-C1853-04-MVP-7365 | |
| Product Type: | Magnetic Pogo Pin Connector | |
| Pin Configuration: | 4 Pin | |
| Connector Gender: | Male | |
| Connector Shape: | Rounded Rectangular | |
| Mounting Orientation: | Straight | |
| Pitch(mm): | 1.8mm | |
| Working Stroke (mm): | 0.8mm@30gf~60gf | |
| Life Test: | 30,000 Cycles min |
Electrical:
| Rated Current: | 2A | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 30 mohms max |
Materials and Plating:
| Insulator Material: | PA46 | |
| Insulator Color: | Black | |
| Contact Material: | Brass | |
| contact plating: | 5u” Gold plated over Nickel | |
| Spring Material: | SUS | |
| Magnet: | N/A |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |

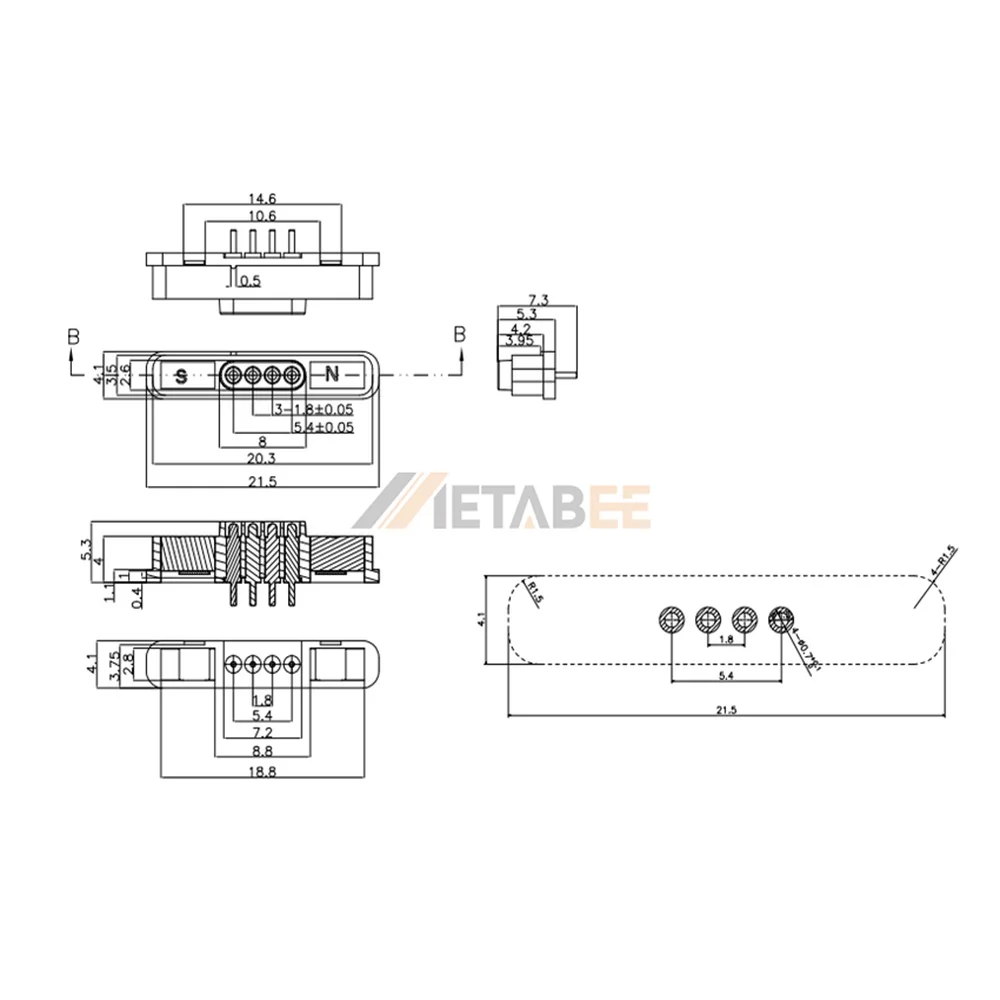

Structure of Magnetic Pogo Pin Connector
Applications:
Magnetic pogo pin connectors combine spring-loaded pin technology with magnetic alignment, providing reliable electrical contact and quick connection for power and signal transmission. Their magnetic design enables easy mating, secure attachment, and repeated connection cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Equipment
- Automotive Electronics
- Custom OEM & ODM Solutions
