Introduction:
This is a 6 pin female Magnetic Pogo Pin Connector designed for stable straight through hole mounting on networking circuit boards. It features a standard 2.54mm pitch layout within a square housing to provide reliable electrical contact for various power and data paths. The self-mating magnetic interface ensures effortless automatic alignment and a secure bond even in compact hardware designs. With a rated current of 2A at 12V DC, this component maintains a low contact resistance to facilitate steady signal delivery. Technicians utilize this reliable interface for smart wearables and handheld electronic devices requiring quick and efficient docking solutions.
Key Features
- Magnetic Auto-Alignment: Ensures quick and effortless secure self-mating connections.
- 2.54mm Standard Pitch: Fits common PCB layouts for easy hardware integration.
- 2A Current Support: Delivers reliable power for various portable electronic devices.
- Straight Through Hole: Provides a stable and durable board-level mechanical bond.
- Square Housing Design: Optimizes vertical space for specialized compact board layouts.
Main Specifications:
General Information:
| Product No.: | PH2-C25410-06-FVP | |
| Product Type: | Magnetic Pogo Pin Connector | |
| Pin Configuration: | 6 Pin | |
| Connector Gender: | Female | |
| Connector Shape: | Square | |
| Mounting Orientation: | Straight | |
| Pitch(mm): | 2.54mm | |
| Working Stroke (mm): | N/A | |
| Life Test: | N/A |
Electrical:
| Rated Current: | 2A max | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 50 mohms max |
Materials and Plating:
| Insulator Material: | N/A | |
| Insulator Color: | N/A | |
| Contact Material: | N/A | |
| contact plating: | N/A | |
| Spring Material: | N/A | |
| Magnet: | N/A |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |

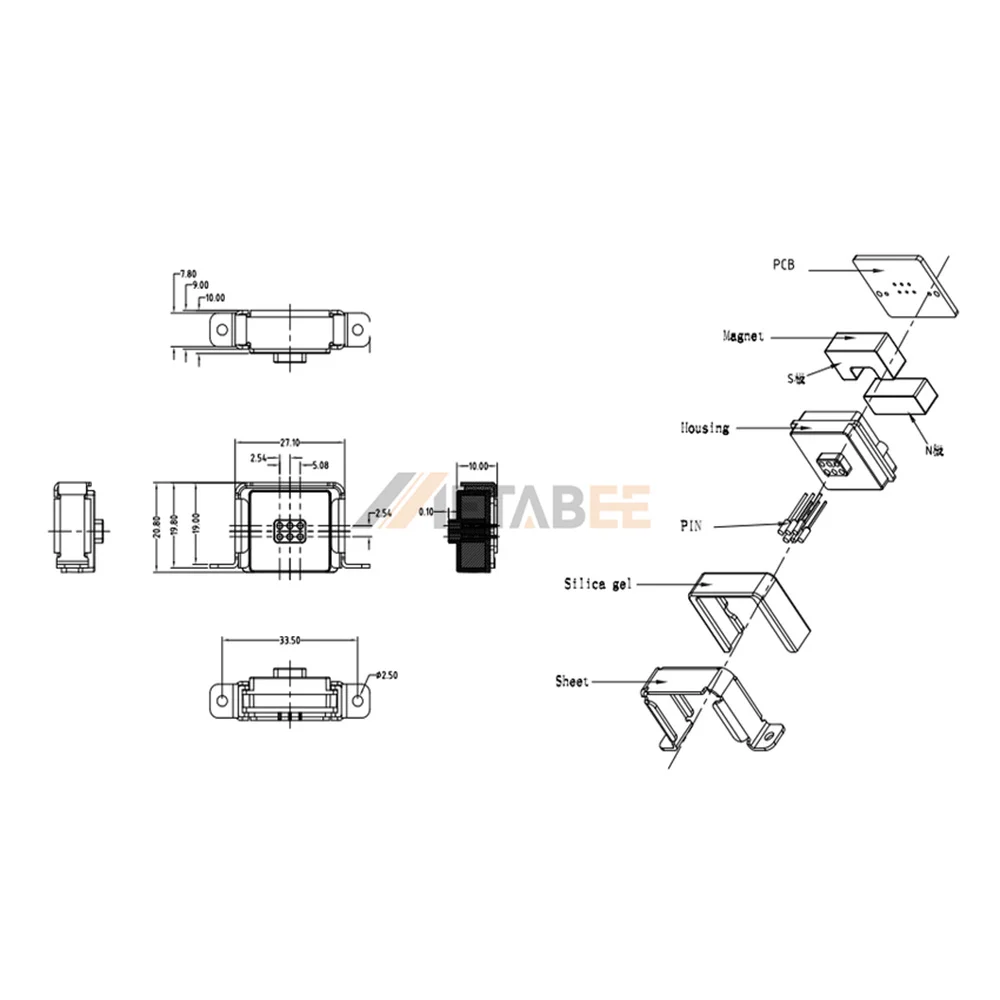

Structure of Magnetic Pogo Pin Connector
Applications:
Magnetic pogo pin connectors combine spring-loaded pin technology with magnetic alignment, providing reliable electrical contact and quick connection for power and signal transmission. Their magnetic design enables easy mating, secure attachment, and repeated connection cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Equipment
- Automotive Electronics
- Custom OEM & ODM Solutions
Factory pricing and exceptional product quality. OEM & ODM Services. Get a free quote now!
Metabee is a professional connector manufacturer from China. We can provide all kinds of Spring Loaded Pins & Connectors.
