Introduction:
This 5 pin pogo connector is a straight female magnetic terminal designed for high-density electrical docking. It features a compact 1.80mm pitch within a rectangular ABS housing to optimize board space. The assembly utilizes integrated magnetic force to facilitate automatic self-alignment for secure and effortless connectivity. Supporting a 2A current rating at 12V, the gold-plated brass contacts maintain a low resistance of 30 mohms. With a tested mechanical lifespan of 30,000 cycles, this component provides a durable charging or signal interface for smart wearables and modular handheld devices operating from -30°C to +85°C.
Key Features
- Magnetic Alignment: Magnetic head ensures automatic self-aligning secure docking.
- Compact Pitch: Precision 1.80mm pitch facilitates high-density circuit integration.
- Durable Life: Tested for 30,000 cycles ensuring long mechanical service.
- Rated Power: Supports 2A maximum current for efficient 12V power.
- Stable Conductivity: Gold plated brass maintains low 30 mohms resistance.
Main Specifications:
General Information:
| Product No.: | PH1-C18395-05-FVP-585 | |
| Product Type: | Magnetic Pogo Pin Connector | |
| Pin Configuration: | 5 Pin | |
| Connector Gender: | Female | |
| Connector Shape: | Rectangular | |
| Mounting Orientation: | Straight | |
| Pitch(mm): | 1.8mm | |
| Working Stroke (mm): | N/A | |
| Life Test: | 30,000 cycles min |
Electrical:
| Rated Current: | 2A | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 30 mohms max |
Materials and Plating:
| Insulator Material: | ABS | |
| Insulator Color: | Black | |
| Contact Material: | Brass | |
| contact plating: | 5u” Gold plated | |
| Spring Material: | N/A | |
| Magnet: | N/A |
Environmental:
| Operating Temperature: | N/A | |
| Flammability Rating: | UL 94 V-0 |

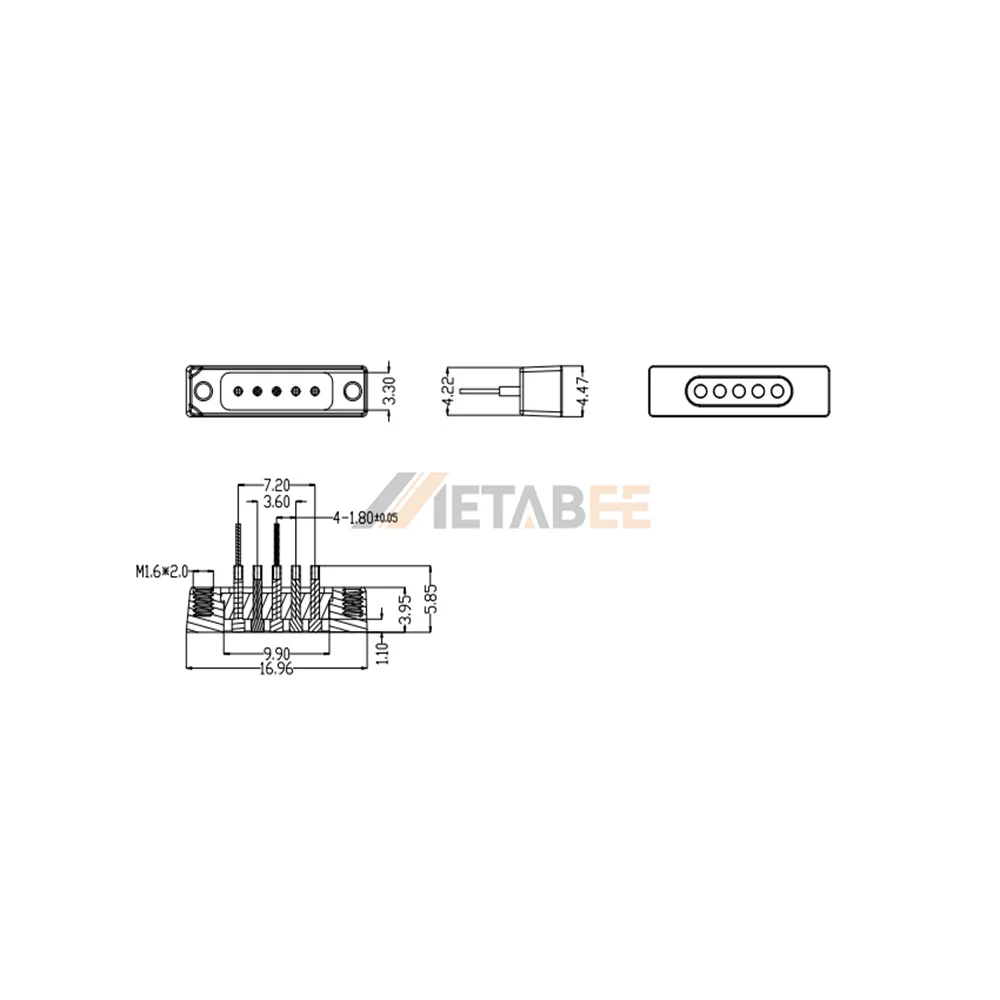

Structure of Magnetic Pogo Pin Connector
Applications:
Magnetic pogo pin connectors combine spring-loaded pin technology with magnetic alignment, providing reliable electrical contact and quick connection for power and signal transmission. Their magnetic design enables easy mating, secure attachment, and repeated connection cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Equipment
- Automotive Electronics
- Custom OEM & ODM Solutions
