STP Shielded RJ45 Ethernet Jack without LEDs, 8P8C, 1 Port, Tab-Up, Through Hole, R/A, No LED
Introduction:
This is a single port shielded RJ45 ethernet jack designed for stable through hole mounting on high-speed networking circuit boards. A robust brass or metal alloy shell provides full EMI shielding to protect signal integrity from external noise in busy data environments. Depending on the specific model, the housing utilizes glass-reinforced PBT or hi-temp thermoplastic to survive intense industrial wave soldering processes without warping. Our series offers diverse configurations including extended temperature ranges from -40°C up to +125°C and various insulation resistance ratings to meet unique project needs. Customers can customize contact finishes and materials for specialized applications requiring high reliability. Technicians utilize this STP modular interface for secure data links in industrial automation and telecommunication hardware.
Key Features
- Full EMI Shielding: Metallic shell blocks external interference for signal integrity.
- Durable Material Options: PBT or hi-temp housing survives industrial soldering.
- Wide Temperature Range: Reliable performance up to +125°C for harsh environments.
- Gold Plated Contacts: Delivers superior conductivity and lasting oxidation resistance.
- Tab-Up Configuration: Optimizes vertical space for specialized board layouts.
Main Specifications:
General Information:

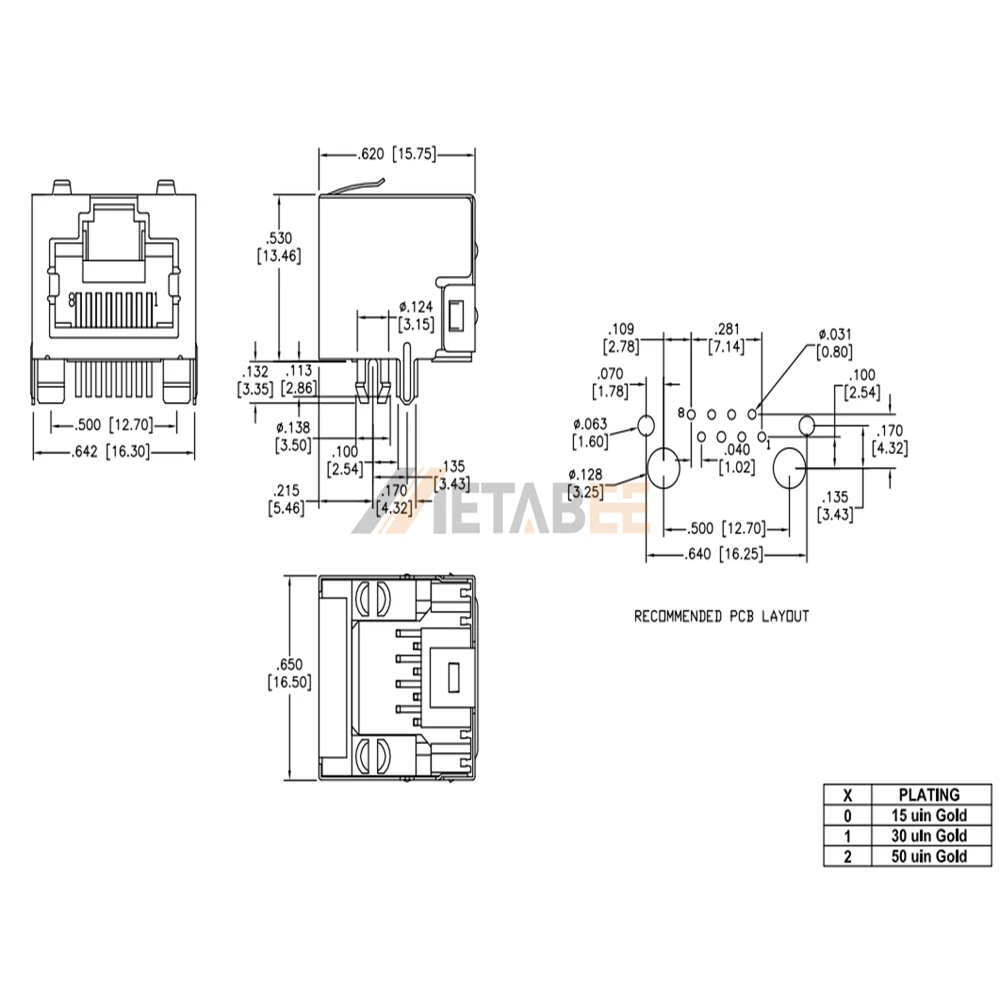

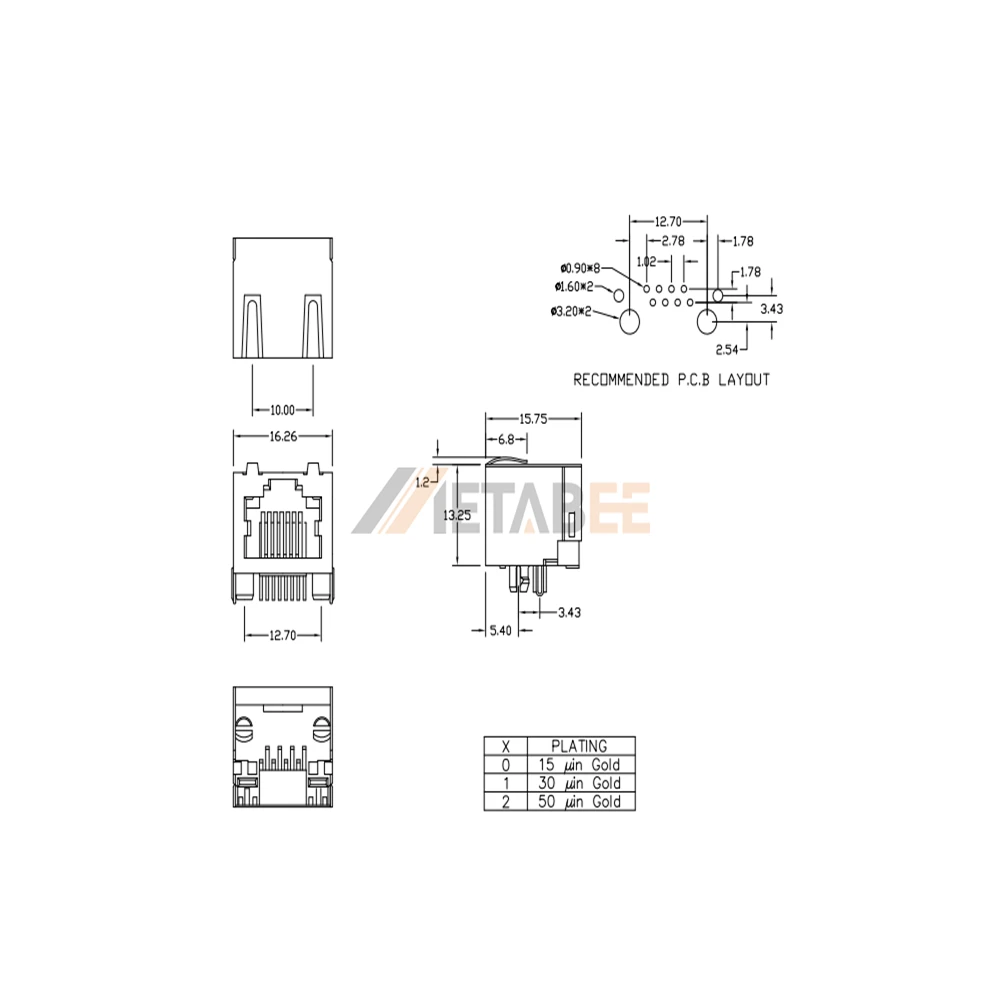

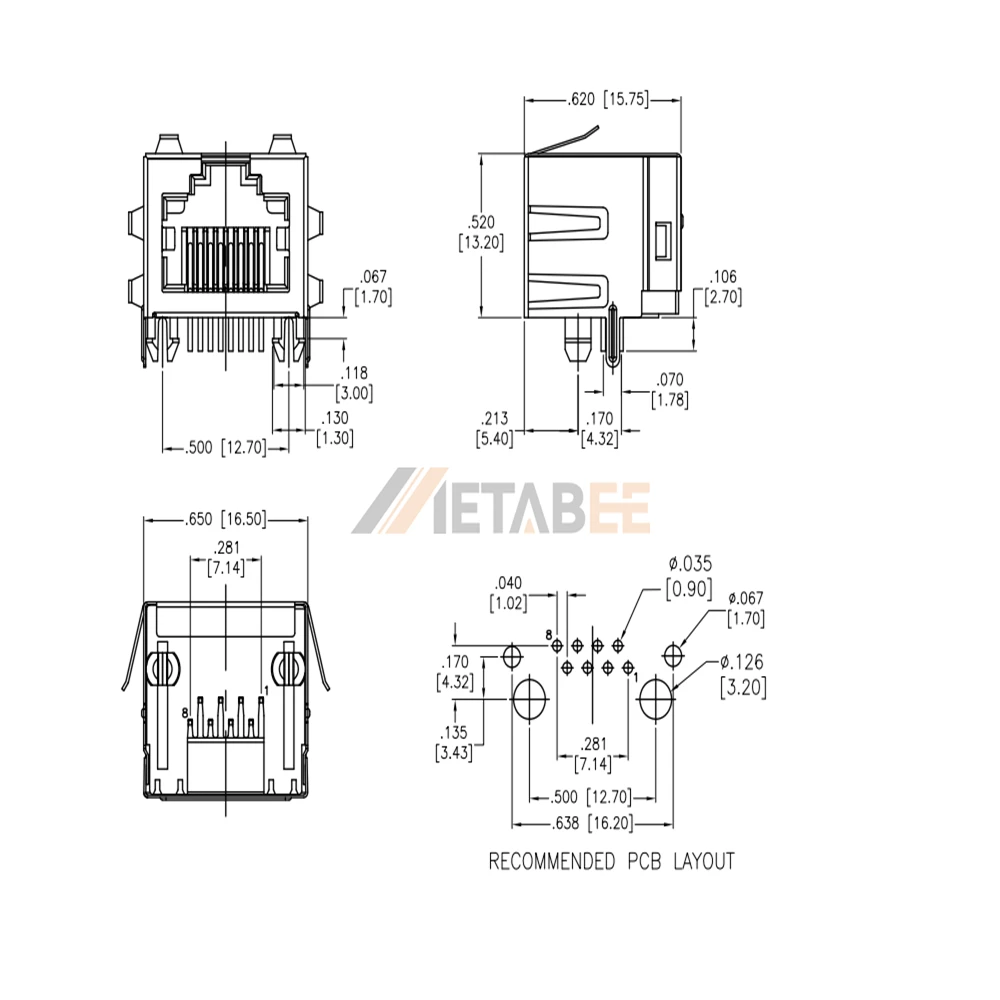

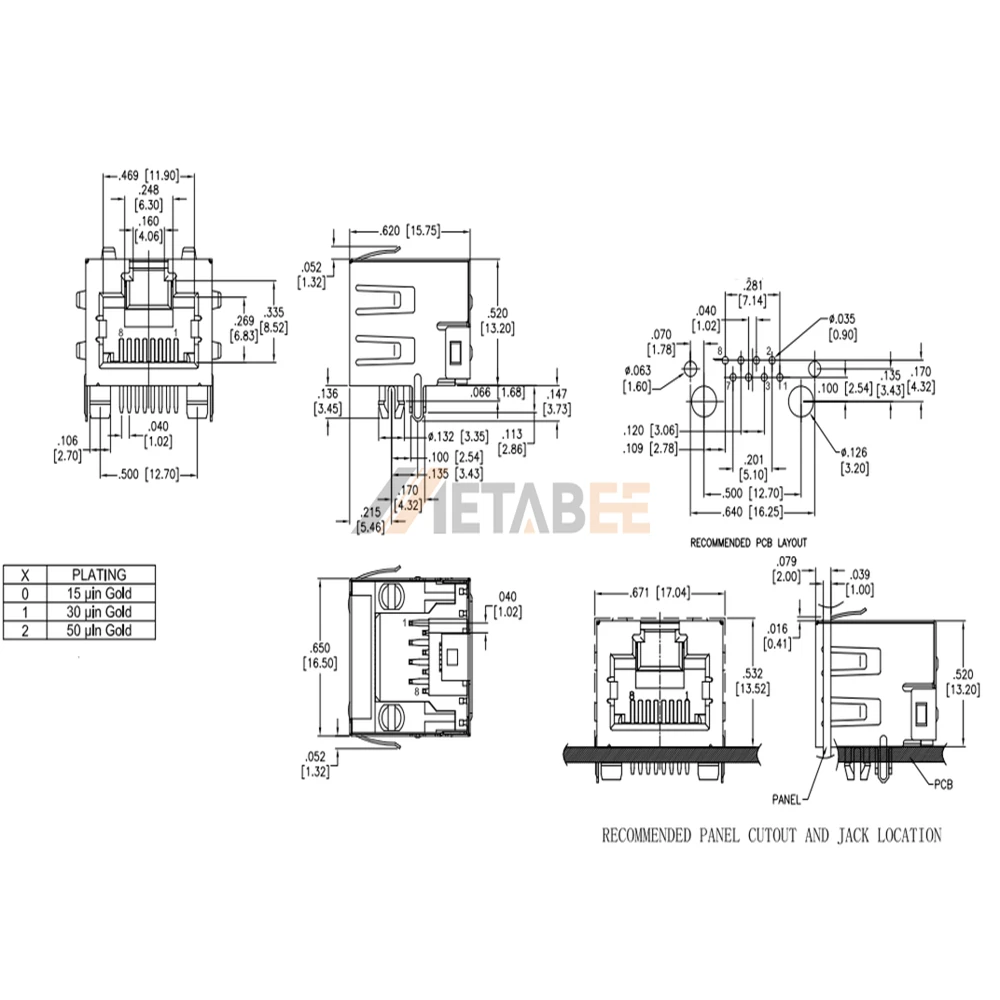

| Product No.: | MTJ-88ARX1-FSM-PG6, MTJ-88ARX1-FSM-PG2T-HT, MTJ-88ARX1-FSM-PG-HT, MTJ-88ARX1-FSM-PG-HT-D | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC/125V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min/1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC or 1500 VDC RMS for 1 minute |
Materials and Plating:
| Housing Material: | Hi-temp thermoplastic, PBT | |
| Housing Color: | Black | |
| Contact Material: | Copper Alloy, Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
