Introduction:
Reliable 10/100 Base-T Fast Ethernet performance defines the Magnetic Modular Jacks, specifically built for high-density industrial applications. Extreme thermal environments from -40°C to 85°C present no functional challenges to the durable black PA66 housing. To reject severe electromagnetic interference, a premium nickel-plated brass shield entirely wraps the internal components. Space optimization on the PCB is achieved through the vertical top-entry configuration and secure through-hole mounting. Mechanical alignment remains strictly stable during the soldering process due to the integrated board lock. Gold-plated copper alloy contacts further maintain electrical resistance below 20mΩ for flawless long-term signal continuity. Finally, the streamlined tab-up profile operates without visual LED indicators to suit specialized design requirements.
Key Features
- 1G Base-T Performance: Enables reliable high-speed Gigabit Ethernet data transmission.
- Vertical THT Mounting: Optimizes board space with secure through-hole termination.
- Industrial Temperature Range: Operates safely between -40°C and 85°C.
- Brass Metal Shielding: Blocks electromagnetic interference for clear signal transmission.
- Integrated Status LEDs: Yellow and green lights track network activity.
Main Specifications:
General Information:
| Product No.: | MTJ-88AX1-FSN-M4 | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | No LED |
Electrical:
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | PA66 | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40°C ~ +85°C | |
| Flammability Rating: | UL 94 V-0 |

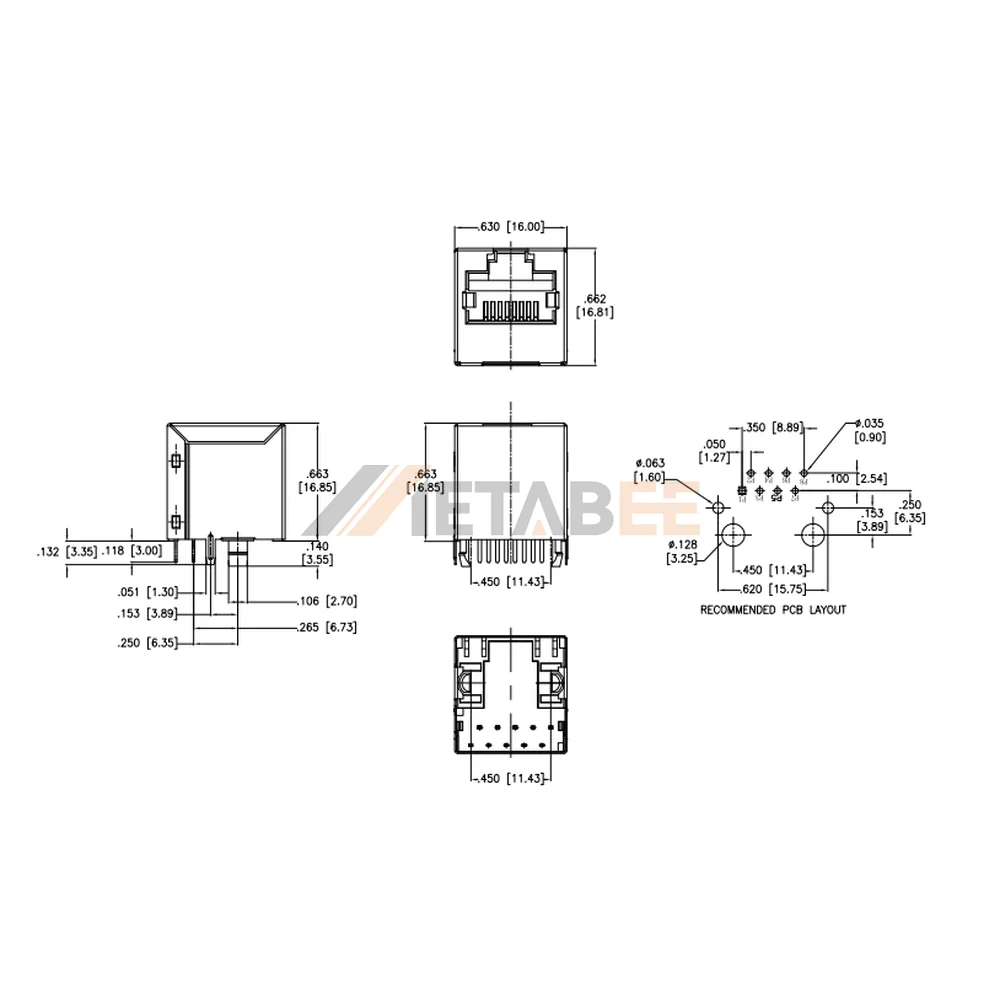

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
