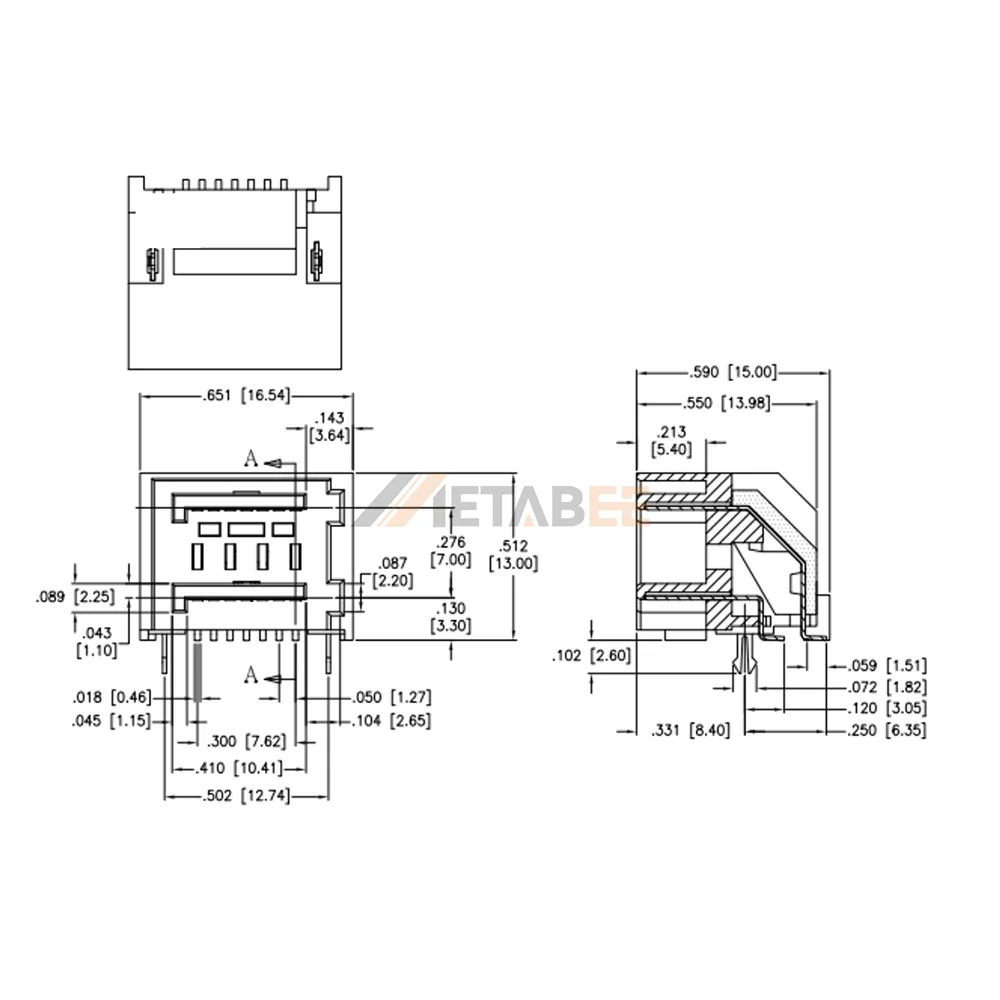

Stacked Dual Port SATA 14 Pin Date Receptacle, SMT, R/A
Introduction:
Stacked dual port sata 14 pin date receptacle, smt, r/a. This female connector features a dual port, 7+7 14-pin configuration with a right angle mounting orientation and surface mount installation. It is designed for reliable board-level data connections.
Rated current is 1.5a, with contact resistance of 30 mohms max, insulation resistance of 1,000 mohms min, and dielectric withstanding voltage of 500 vac. The housing meets ul94v-0 flammability and operates from -55°c to 85°c.
Key Features
- Dual port, 7+7 14-pin female sata receptacle
- Right angle surface mount design
- 1.5a current rating
- 30 mohms max contact resistance
- 500 vac dielectric withstanding voltage
- Ul94v-0, -55°c to 85°c operation
Main Specifications:
General Information:
| Product No.: | SATA-D-PL-SMT-S-OB-TR | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7+7 Pin | |
| Number of Ports: | Dual Port | |
| Connector Gender: | Female | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Polarization: | Left Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Phosphor Bronze | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
