Introduction:
This spring loaded magnetic pogo pin connector is a 2-pin female terminal designed for secure vertical docking interfaces. It features a rounded rectangular housing on a standard 2.54mm pitch to ensure precise mechanical alignment. The assembly supports a 3A current rating at 12VDC, utilizing 5u” gold-plated contacts to achieve stable conductivity. Built with HTN UL 94V-0 insulation, it operates reliably across extreme temperatures from -40°C to +150°C. This component facilitates effortless self-aligning charging or signal links in modular electronics and handheld devices requiring quick-release connectivity.
Key Features
- Magnetic Alignment: Self-aligning magnetic head ensures secure effortless docking.
- Standard Pitch: 2.54mm pitch 2-pin design for easy integration.
- Power Capacity: Supports 3A current and 12VDC for charging.
- Extreme Temp: Operates reliably from -40°C to +150°C environments.
- Flame Retardant: HTN UL 94V-0 housing ensures superior safety performance.
Main Specifications:
General Information:
| Product No.: | PH1-3E-02-FVMP-6085 | |
| Product Type: | Magnetic Pogo Pin Connector | |
| Pin Configuration: | 2 Pin | |
| Connector Gender: | Female | |
| Connector Shape: | Rounded Rectangular | |
| Mounting Orientation: | Straight | |
| Pitch(mm): | 2.54mm | |
| Working Stroke (mm): | N/A | |
| Life Test: | N/A |
Electrical:
| Rated Current: | 3A | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 50 mohms max |
Materials and Plating:
| Insulator Material: | HTN rated UL 94V-0 | |
| Insulator Color: | Black | |
| Contact Material: | Brass | |
| contact plating: | 5u” Gold plated | |
| Spring Material: | N/A | |
| Magnet: | N/A |
Environmental:
| Operating Temperature: | -40°C to +150°C | |
| Flammability Rating: | UL 94 V-0 |

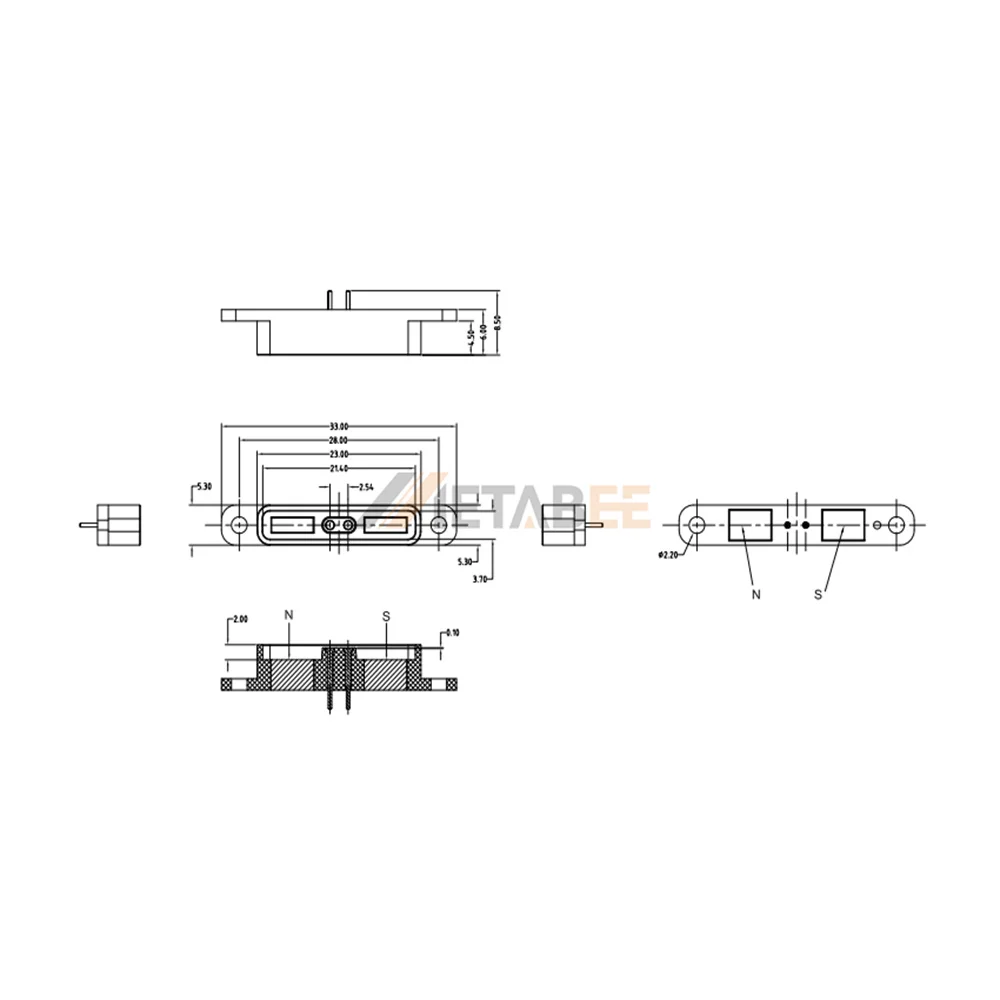

Structure of Magnetic Pogo Pin Connector
Applications:
Magnetic pogo pin connectors combine spring-loaded pin technology with magnetic alignment, providing reliable electrical contact and quick connection for power and signal transmission. Their magnetic design enables easy mating, secure attachment, and repeated connection cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Equipment
- Automotive Electronics
- Custom OEM & ODM Solutions
