SMT Surface Mount RJ45 Socket Without LEDs, 8P8C, 1 Port, Shielded, Tab-Up, R/A
Introduction:
This is a single port shielded surface mount rj45 socket designed for high-density SMT assembly on modern networking boards. It features a robust brass shell that provides a full shield against electromagnetic interference to ensure clear data transmission. The housing is constructed from hi-temp thermoplastic to withstand intense industrial reflow soldering processes without any structural warping. Featuring Gold over Nickel plated contacts, the connector supports a 1.5A current rating and maintains a high insulation resistance of 1000MΩ Min. Its Tab-Up right angle configuration optimizes board layouts by effectively saving vertical space. Technicians utilize this unshielded interface for compact telecommunication hardware and data systems requiring reliable automated assembly.
Key Features
- Surface Mount Design: Facilitates efficient automated SMT assembly processes.
- Full EMI Shielding: Brass shell blocks external signal interference effectively.
- Hi-Temp Thermoplastic: Survives intense heat during industrial reflow soldering.
- Gold Plated Contacts: Ensures superior conductivity and lasting signal stability.
- Tab-Up Configuration: Optimizes vertical space for specialized PCB layouts.
Main Specifications:
General Information:
| Product No.: | MTJ-88ARX1-FS-SMT-PG-C1-TR | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC or 1500 VDC for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel Plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

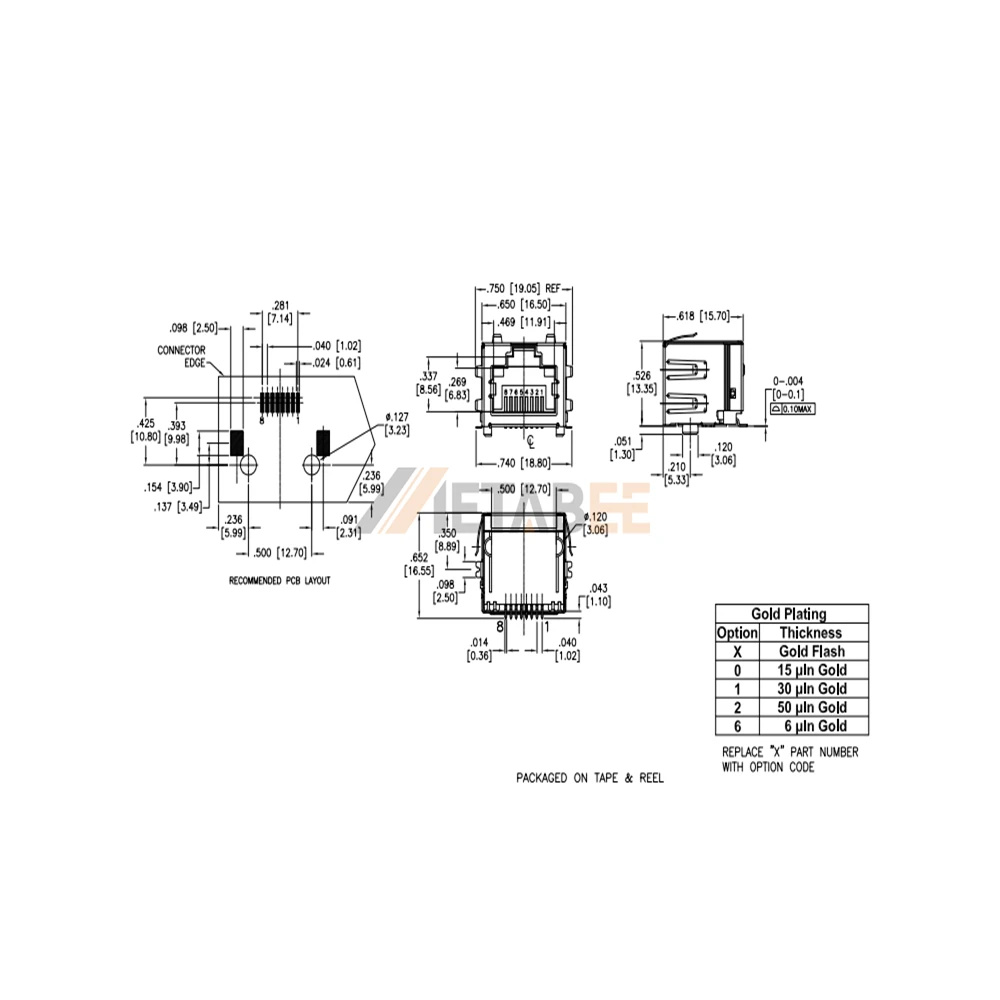

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
