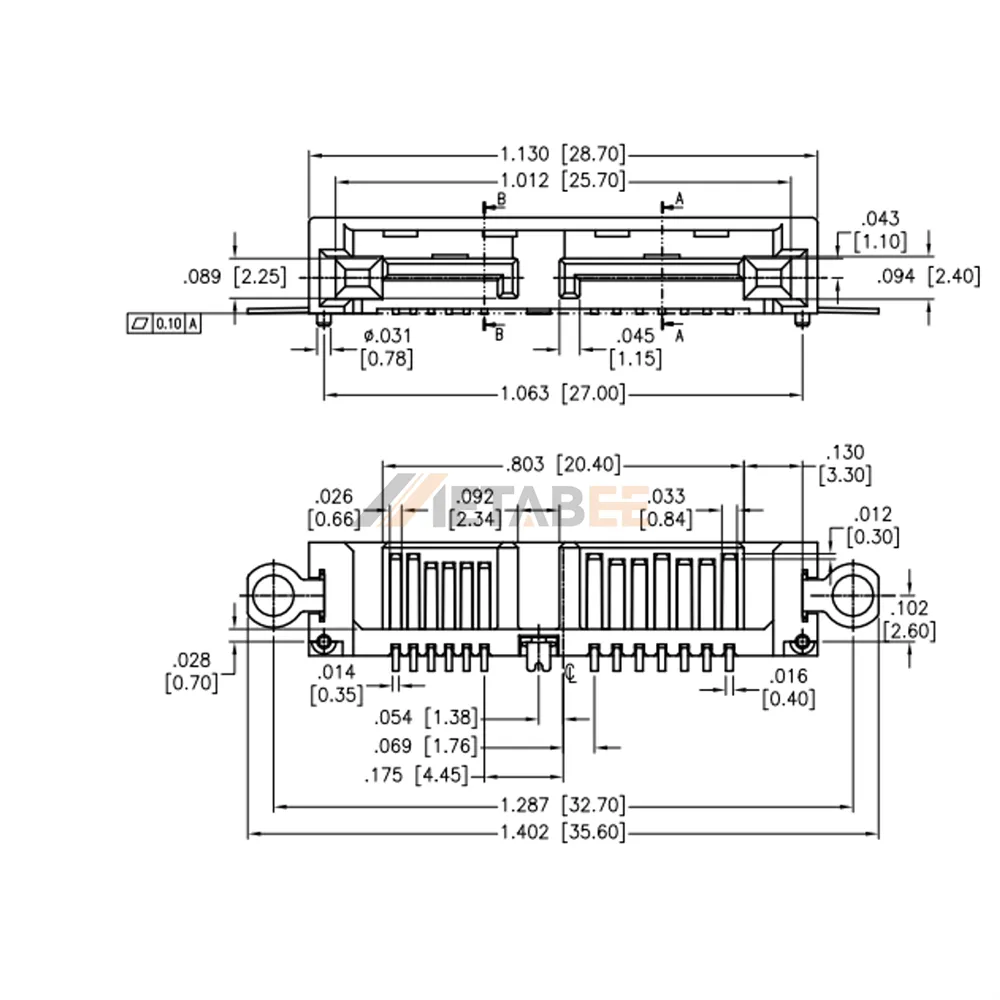

Slimline SATA Combo 13 Pin Female Connector, SMT, R/A
Introduction:
The slimline sata combo 13-pin female connector integrates 7 data and 6 power contacts in a compact configuration for reliable connectivity in slim storage devices, laptops, servers, and embedded systems. Its right-angle design and pcb surface mount installation support efficient board integration and space optimization.
With a rated current of 1.5a, this connector provides stable electrical performance with 30 mOhms max contact resistance and 1,000 mOhms min insulation resistance. It supports 500 vac dielectric withstanding voltage and reliable operation from -55°c to +85°c. The ul94v-0 flame-retardant housing provides enhanced safety and durability.
Key Features
- Female 7+6 pin slimline sata configuration
- 13-pin data and power connector
- Right-angle mounting orientation
- PCB surface mount installation
- 1.5a rated current
- Ul94v-0 flame-retardant housing
Main Specifications:
General Information:
| Product No.: | SATA-G4-PM-SMT-RA-TR | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7+6 Pin | |
| Number of Ports: | Dual Port | |
| Connector Gender: | Female | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Polarization: | Middle Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Brass | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
