Introduction:
This 5 pin magnetic connector is a straight female terminal engineered for high-density electrical docking. It features a rounded rectangular housing with a precise 2.00mm pitch to optimize space on modular PCBs. The integrated magnetic mechanism facilitates automatic self-alignment for secure and effortless connectivity. Supporting a 2A current rating at 5V, it utilizes gold-plated brass contacts to maintain stable conductivity with a low 30 mohms resistance. This component provides a durable charging or signal interface for smart wearables and industrial handheld devices requiring quick-release capabilities within a -30°C to +85°C temperature range.
Key Features
- Magnetic Alignment: Magnetic head ensures automatic self-aligning secure docking.
- Precision Pitch: 2.00mm pitch 5-pin layout optimizes high-density board space.
- Stable Power: Supports 2A maximum current for efficient 5V charging.
- Durable Plating: 5u” Gold plated contacts prevent oxidation and corrosion.
- Robust Housing: PA46 insulator provides mechanical stability in varied environments.
Main Specifications:
General Information:
| Product No.: | PH1-C22H47-04-FHP | |
| Product Type: | Magnetic Pogo Pin Connector | |
| Pin Configuration: | 5 Pin | |
| Connector Gender: | Female | |
| Connector Shape: | Rounded Rectangular | |
| Mounting Orientation: | Straight | |
| Pitch(mm): | 2mm | |
| Working Stroke (mm): | N/A | |
| Life Test: | N/A |
Electrical:
| Rated Current: | 2A | |
| Rated Voltage: | 5V DC | |
| Contact Resistance: | 30 mohms max |
Materials and Plating:
| Insulator Material: | PA46 | |
| Insulator Color: | Black | |
| Contact Material: | Brass | |
| contact plating: | 5u” Gold plated over Nickel | |
| Spring Material: | N/A | |
| Magnet: | N/A |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |

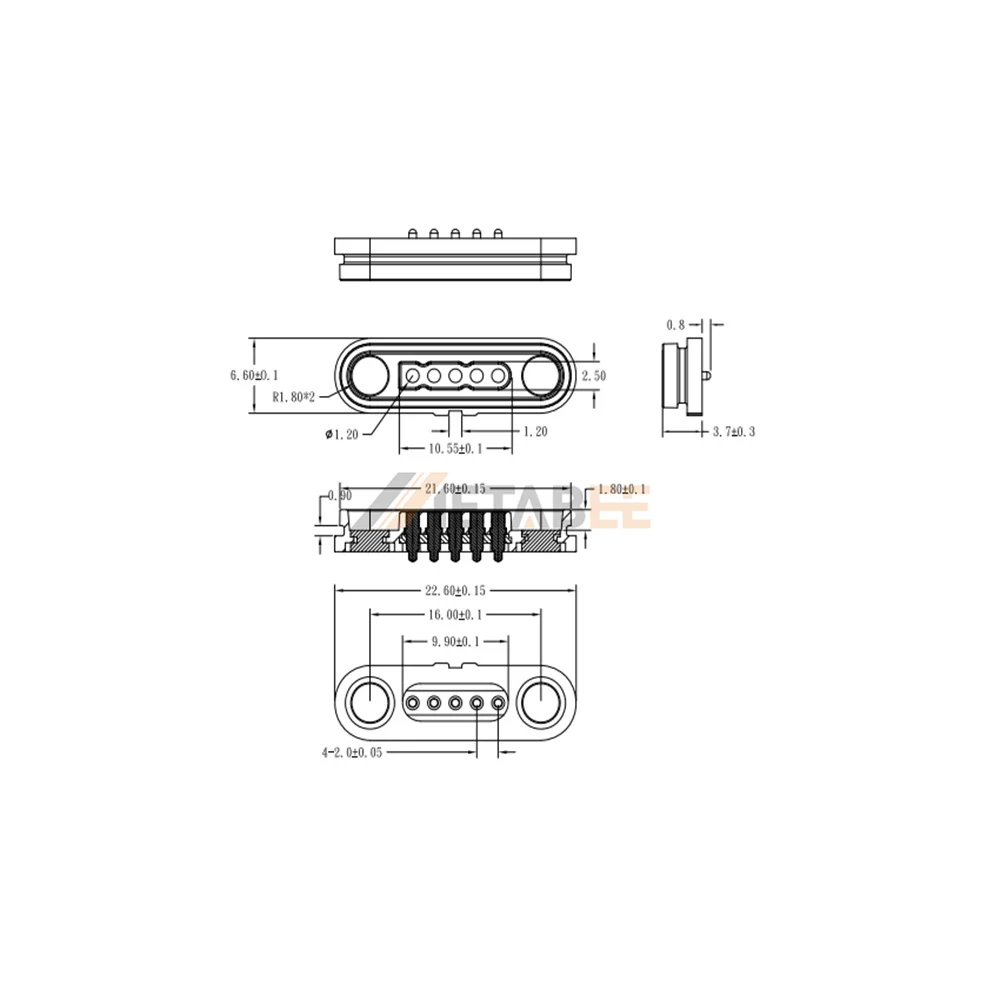

Structure of Magnetic Pogo Pin Connector
Applications:
Magnetic pogo pin connectors combine spring-loaded pin technology with magnetic alignment, providing reliable electrical contact and quick connection for power and signal transmission. Their magnetic design enables easy mating, secure attachment, and repeated connection cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Equipment
- Automotive Electronics
- Custom OEM & ODM Solutions
