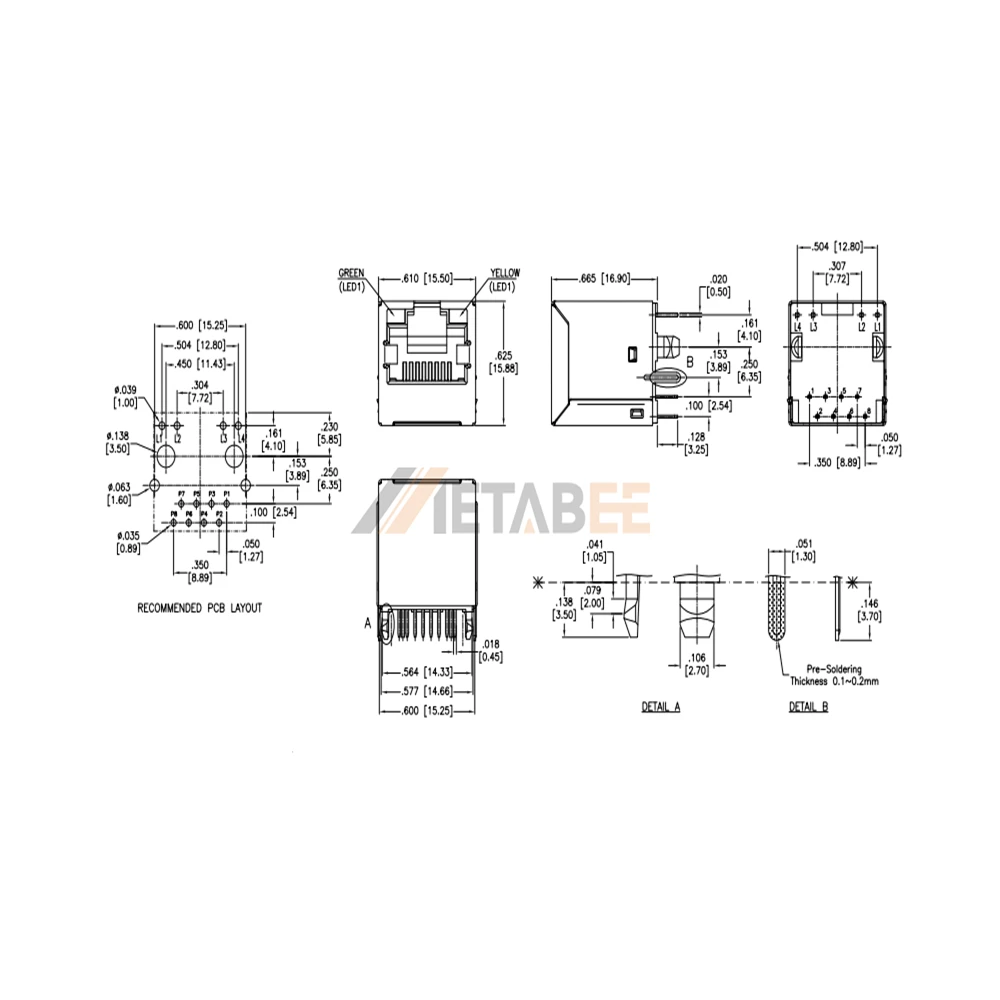

Single Port Vertical RJ45 8P8C Female Connector, 1 Port, Shielded, Tab-Up, Through Hole, Green/Yellow
Introduction:
This is a single port vertical RJ45 female connector designed for stable top-entry through hole mounting on printed circuit boards. It features a rugged stainless steel shell that provides a full shield against electromagnetic interference to safeguard signal integrity across data paths. The Phosphor Bronze contacts are finished with Gold over Nickel plating to ensure high conductivity and a 1.25A current rating. Utilizing a Tab-Up configuration and integrated Green and Yellow LEDs, this component provides immediate link status diagnostics while optimizing PCB surface area. Technicians utilize this shielded interface for industrial networking gear and telecommunication hardware requiring secure vertical connectivity across a temperature range of -40°C to +85°C.
Key Features
- Vertical Mounting Design: Optimizes top-entry connectivity for compact PCB layouts.
- Full Stainless Shielding: Blocks external signal interference for high data integrity.
- Integrated Status LEDs: Yellow-Green lights show connectivity status instantly.
- Gold Plated Contacts: Ensures superior conductivity and lasting signal stability.
- Industrial Temperature Range: Performs reliably between -40°C and +85°C.
Main Specifications:
General Information:
| Product No.: | MTJ-88AX1-FSN-LH-HT-Y-B | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Shielded | |
| LED indicator: | Left: Green, Right: Green |
Electrical:
| Rated Current: | 1.25A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000VAC rms for 1 minute |
Materials and Plating:
| Insulator Material: | Stainless | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
