Single Port Vertical RJ11 6P4C Connector Phone Jack, 1 Port, Unshielded, Through Hole, Tab-Up, No LED
Introduction:
This is a single port vertical RJ11 6P4C connector phone jack engineered for stable top-entry through hole mounting on printed circuit boards. It features a high-grade black PBT housing that ensures structural stability while maintaining a high insulation resistance of 1000 mohms. The Phosphor Bronze contacts are finished with Gold plating to provide superior conductivity for voice-grade signals with a standard 1.5A current rating. By utilizing a Tab-Up configuration, the unshielded jack effectively optimizes board surface area while handling dielectric voltages up to 1000 VAC safely. Technicians utilize this reliable modular interface for standard telephone systems and networking hardware requiring secure vertical board-to-cable connectivity.
Key Features
- Vertical Mounting Design: Optimizes top-entry connectivity for compact board layouts.
- Gold Plated Contacts: Delivers superior conductivity and lasting signal stability.
- 6P4C RJ11 Interface: Provides standard modular connectivity for voice systems.
- Durable PBT Housing: Maintains structural integrity across industrial temperature ranges.
- High Insulation Resistance: Ensures 1000 mohms for enhanced electrical safety.
Main Specifications:
General Information:

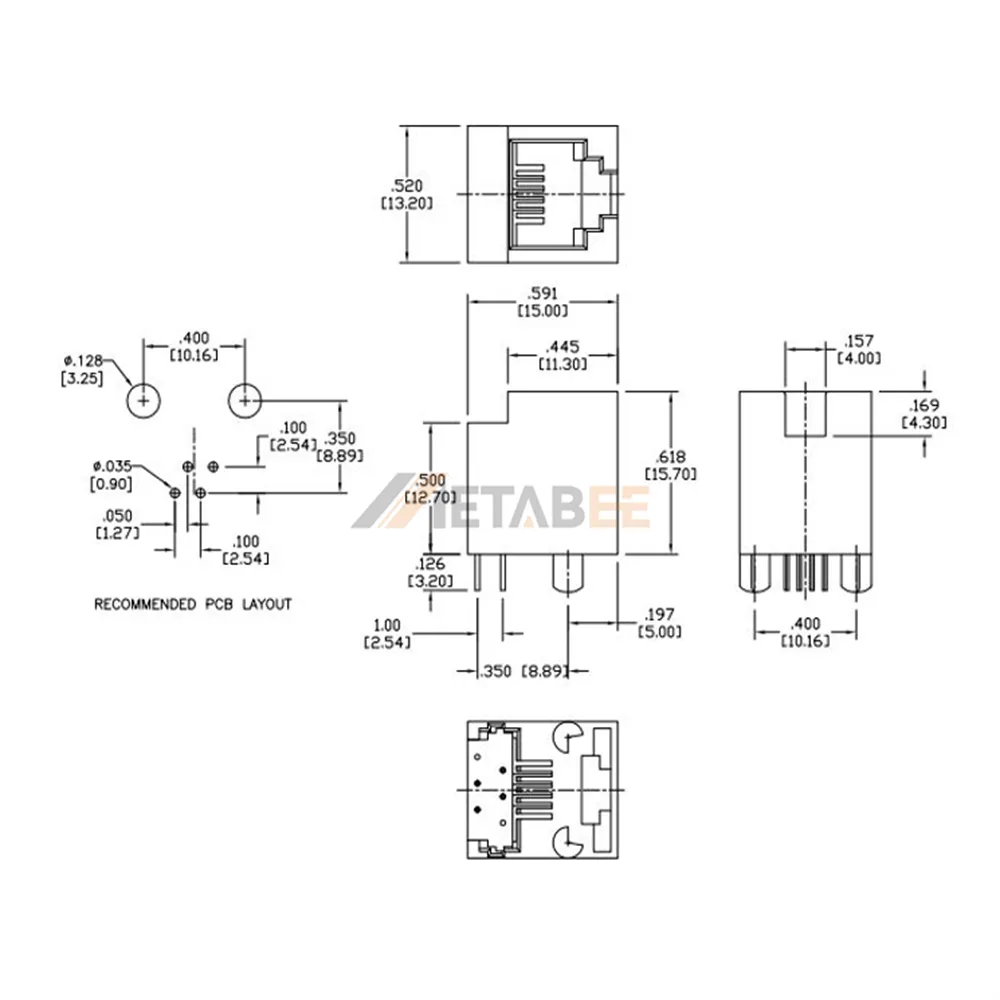

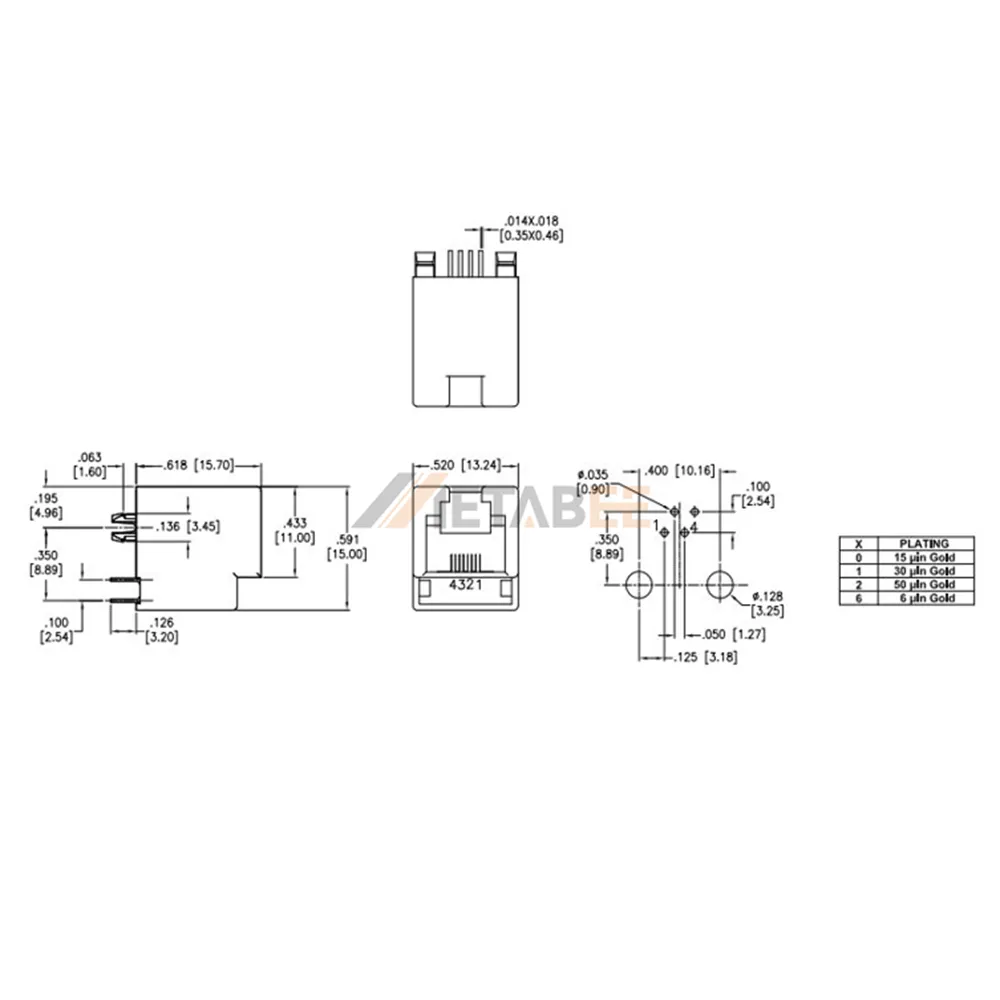

| Product No.: | MTJ-64KBX1-TH, MTJ-64KBX1-TH-SP | |
| Series: | MTJ | |
| Category: | Single Port RJ11 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 6P4C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 125V AC / 150V AC | |
| Contact Resistance: | 30mΩ Max / 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC/DC for 1 minute |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | 40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
