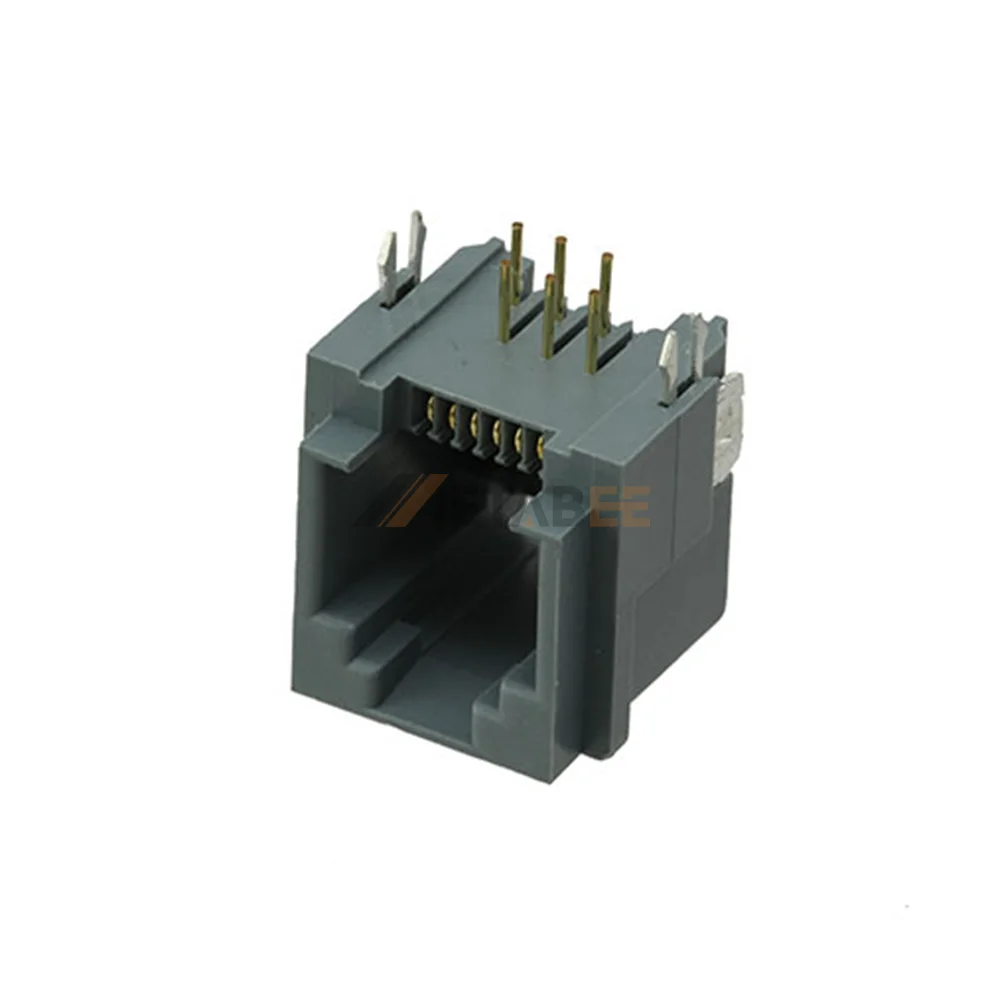

RJ11 Modular Socket 6P6C RJ12 PCB Connector, 1 Port, Unshielded, Through Hole, R/A, Tab-Up, No LED
Introduction:
This is a single port RJ11 modular socket 6P6C RJ12 PCB connector designed for stable right angle through hole mounting on networking circuit boards. It features a rugged black PBT housing that maintains high thermal stability while providing a superior insulation resistance of 500 mohms. The Phosphor Bronze contacts include a premium Gold plating to maintain high conductivity and a consistent 1.5A current rating. Utilizing a Tab-Up configuration, this unshielded component effectively saves vertical board space while handling dielectric voltages up to 1000 VAC safely. Technicians utilize this modular interface for industrial automation systems and networking gear requiring reliable 6-pin connectivity across a wide -40°C to +125°C temperature range.
Key Features
- 6P6C RJ12 Interface: Supports standard modular connectivity for voice networking systems.
- Industrial Temperature Range: Performs reliably between -40°C and +125°C.
- Gold Plated Contacts: Ensures superior conductivity and lasting signal stability.
- Tab-Up Configuration: Optimizes vertical clearance for specialized board layouts.
- Durable PBT Housing: Maintains structural integrity during industrial soldering processes.
Main Specifications:
General Information:
| Product No.: | MTJ-66ARX1, MTJ-66EX1 | |
| Series: | MTJ | |
| Category: | Single Port RJ11 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 6P6C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | 40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
