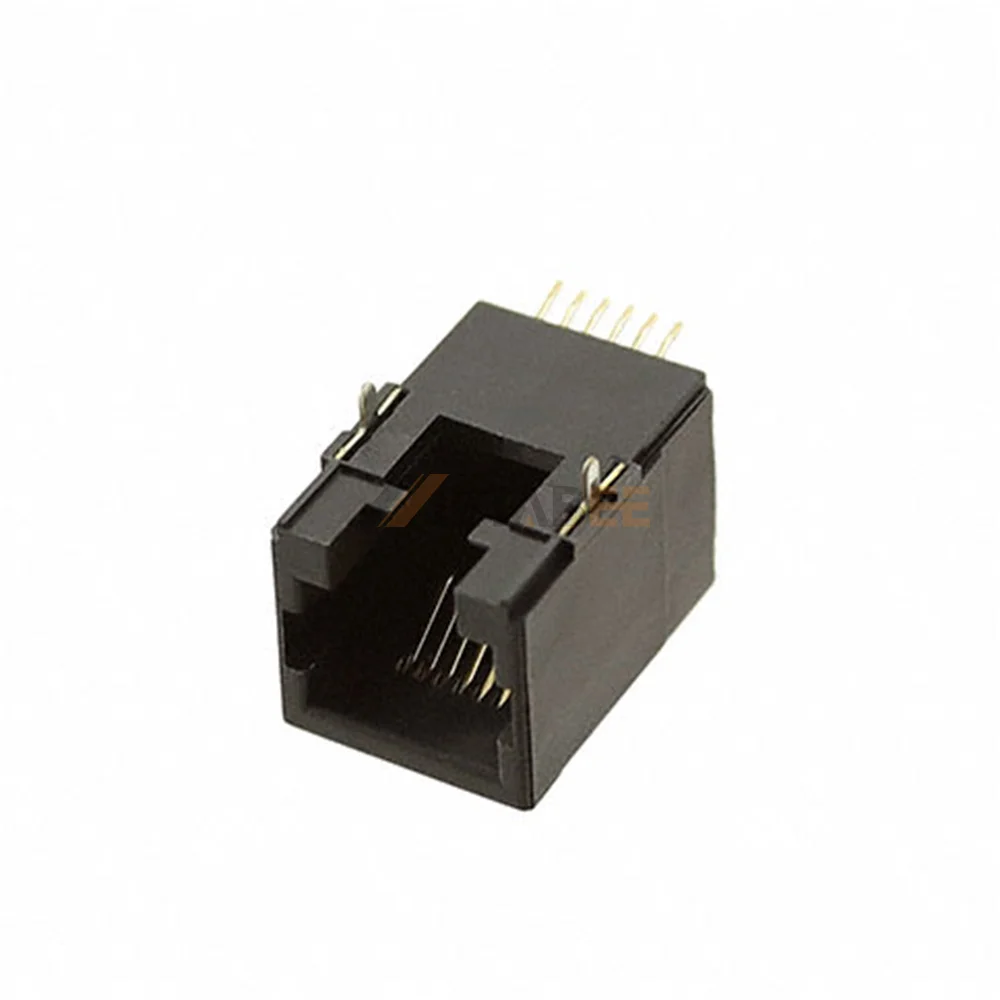

6P6C RJ11 RJ12 Surface Mount Phone Jack Network Connector, 1 Port, Unshielded, R/A, Tab-Down, No LED
Introduction:
This is a single port 6P6C surface mount phone jack network connector designed for high-density networking on modern circuit boards. It features a durable black hi-temp thermoplastic housing that effectively withstands intense industrial reflow soldering processes without warping. The Phosphor Bronze contacts are finished with premium Gold plating to ensure high conductivity and a standard 1.5A current rating for voice-grade signals. Utilizing a Tab-Down right angle configuration, this unshielded component optimizes vertical space while maintaining high insulation resistance. Technicians utilize this reliable modular interface for standard telecommunication equipment and data networking hardware requiring secure SMT connectivity.
Key Features
- SMT Surface Mount: Facilitates efficient automated high-speed PCB assembly processes.
- Gold Plated Contacts: Ensures superior conductivity and lasting signal stability.
- Hi-Temp Thermoplastic: Survives intense heat during industrial reflow soldering.
- 6P6C Modular Interface: Provides standard connectivity for RJ11 and RJ12.
- Tab-Down Configuration: Optimizes vertical space for specialized board layouts.
Main Specifications:
General Information:
| Product No.: | MTJ-66YX1 | |
| Series: | MTJ | |
| Category: | Single Port RJ11 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 6P6C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500 mΩ Min | |
| Dielectric withstanding voltage: | 1000 Vrms for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

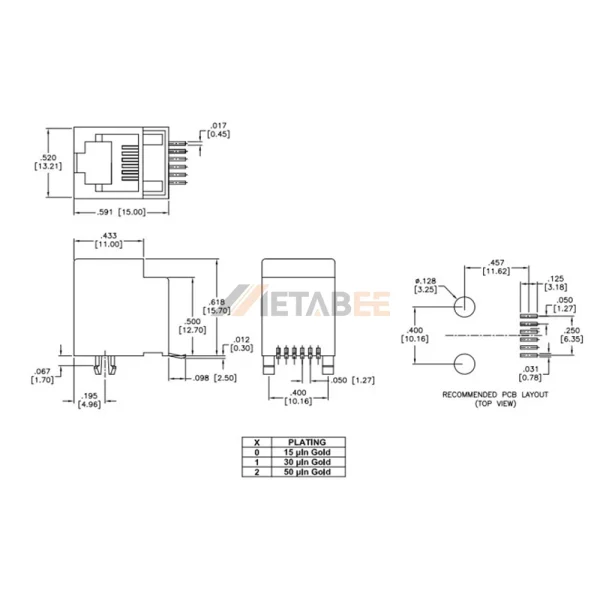

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
