RJ11, RJ12, RJ25 Modular Jack 6P6C PCB Connector, 1 Port, Unshielded, Through Hole, R/A, Tab-Down, No LED
Introduction:
This is a single port RJ11, RJ12, RJ25 modular jack 6P6C PCB connector designed for stable right angle through hole attachment to printed circuit boards. It utilize a durable black PBT or hi-temp thermoplastic housing that ensures reliable thermal stability and maintains a high insulation resistance of 1000 mohms. The Phosphor Bronze contacts include a premium Gold finish to ensure high conductivity and a consistent 1.5A current rating for voice and data signals. Utilizing a Tab-Down right angle configuration, this unshielded component effectively saves vertical space while withstanding dielectric voltages up to 1500 VDC. Technicians utilize this reliable modular interface for standard telephone systems and networking gear requiring secure 6-pin connectivity across a wide -40°C to +85°C range.
Key Features
- 6P6C Modular Interface: Supports standard modular connectivity for RJ11, RJ12, and RJ25.
- Gold Plated Contacts: Ensures superior conductivity and lasting signal stability.
- Tab-Down Configuration: Optimizes vertical clearance for specialized board layouts.
- High Insulation Resistance: Maintains 1000 mohms for enhanced electrical safety.
- Durable PBT Housing: Performs reliably between -40°C and +85°C environments.
Main Specifications:
General Information:
| Product No.: | MTJ-66KX1J, MTJ-66QX1 | |
| Series: | MTJ | |
| Category: | Single Port RJ11 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 6P6C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | 45mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic / PBT | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | 40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

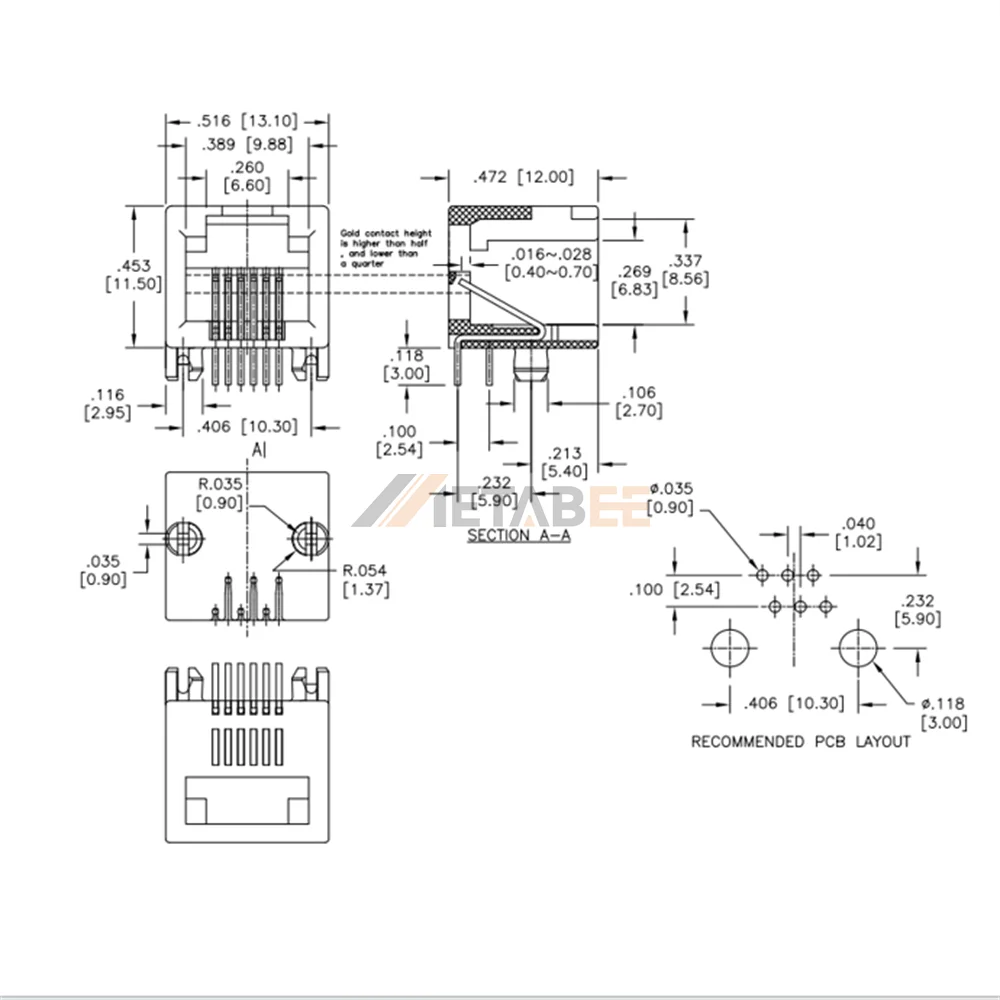

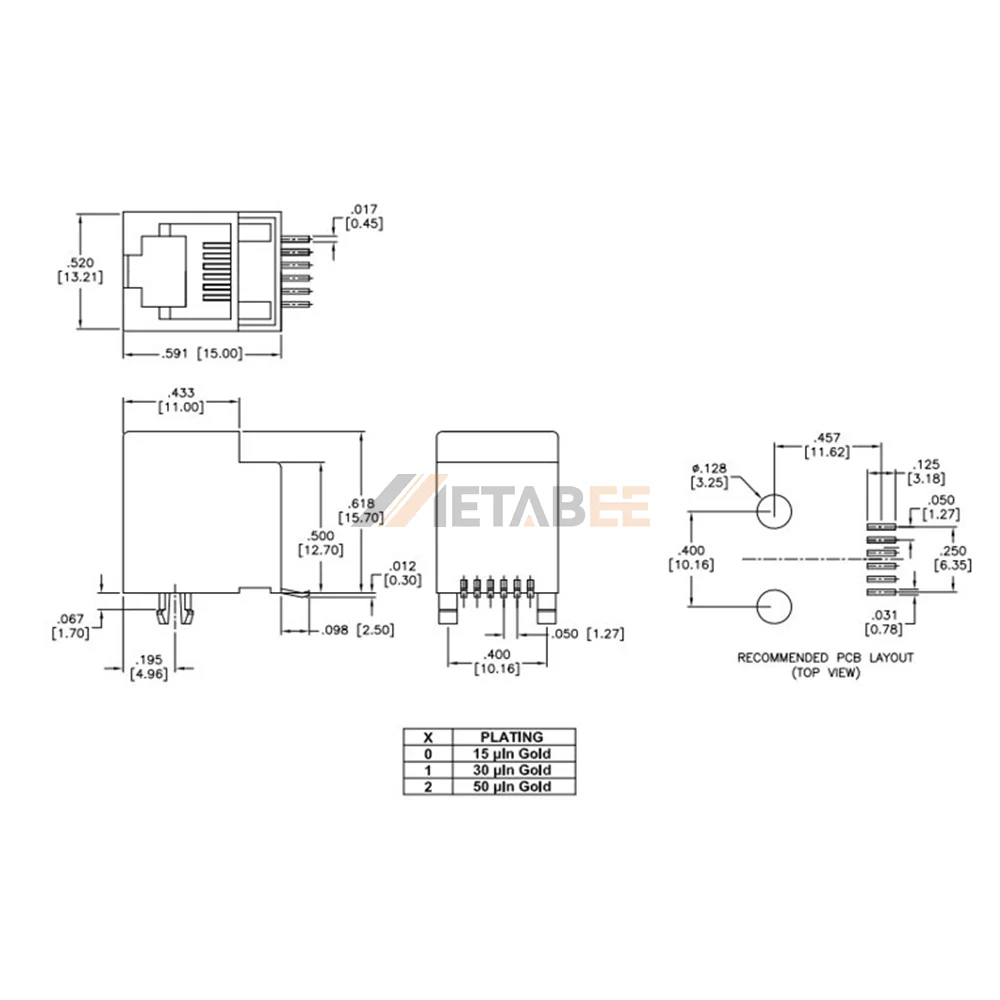

Structure of Modular Jack
