SMT Vertical RJ11 6P6C Modular Jack, 1 Port, Unshielded, Surface Mount, Tab-Up, No LED
Introduction:
This is a single port SMT vertical RJ11 6P6C modular jack designed for stable top-entry surface mount attachment on modern networking boards. It features a black hi-temp thermoplastic housing specifically engineered to survive intense industrial reflow soldering processes without warping. The 6P6C interface utilize Phosphor Bronze contacts with premium Gold plating to ensure superior conductivity and a consistent 1.5A current rating. Utilizing a Tab-Up configuration, this unshielded component effectively saves PCB surface area while providing a minimum insulation resistance of 500 mohms. Technicians utilize this reliable modular interface for standard telephone systems and industrial communication gear requiring secure vertical SMT connectivity.
Key Features
- Vertical SMT Design: Optimizes top-entry connectivity for compact board layouts.
- Hi-Temp Thermoplastic: Survives intense heat during industrial reflow soldering.
- Gold Plated Contacts: Delivers superior conductivity and lasting signal stability.
- 6P6C RJ11 Interface: Provides standard modular links for voice networking.
- 1.5A Current Rating: Supports efficient data transmission and power delivery.
Main Specifications:
General Information:
| Product No.: | MTJ-66VX1-SMT | |
| Series: | MTJ | |
| Category: | Single Port RJ11 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 6P6C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500 mΩ Min | |
| Dielectric withstanding voltage: | 1000 Vrms for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

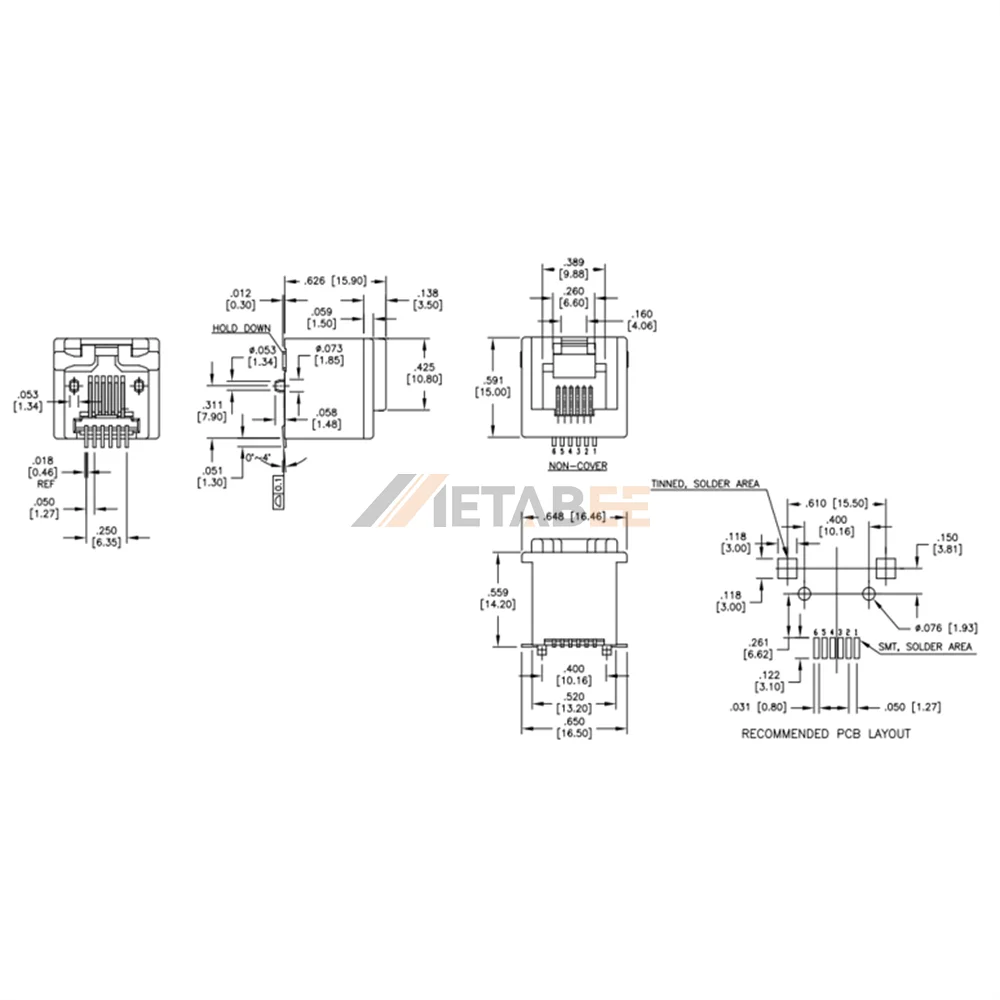

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
