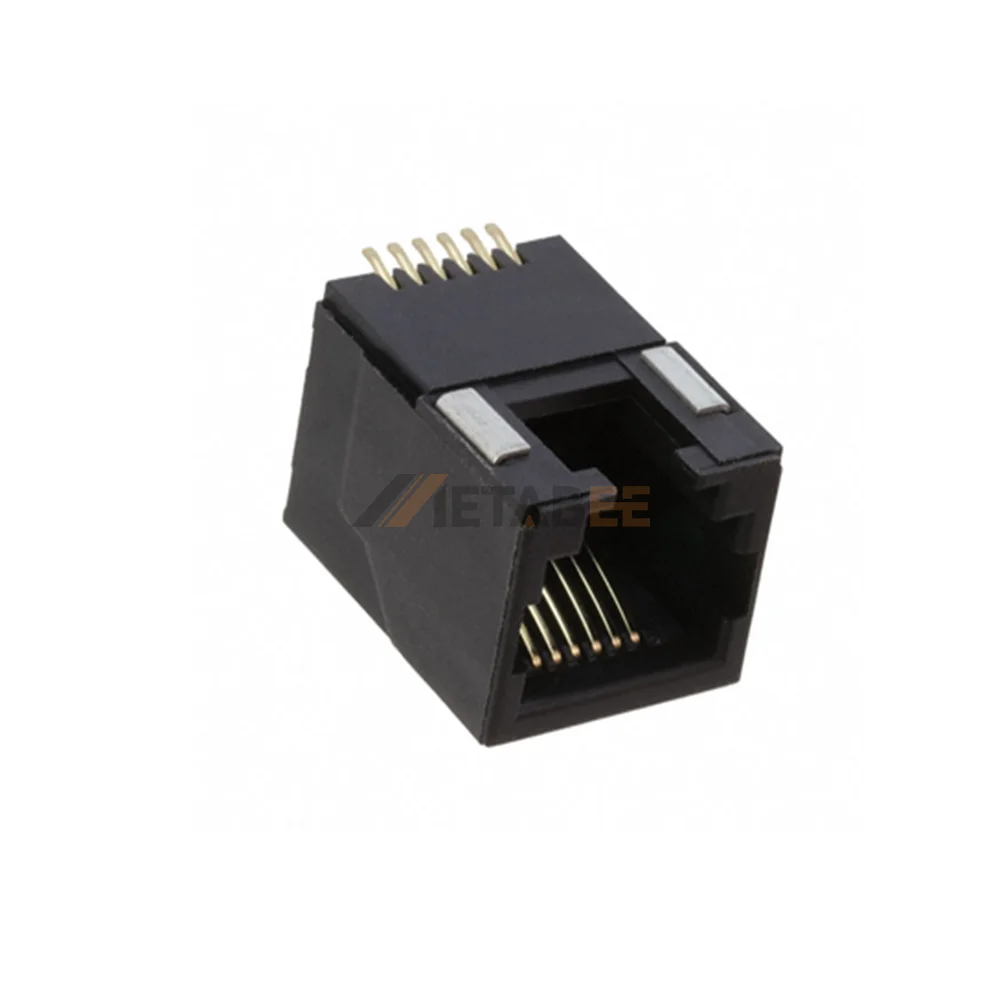

Surface Mount RJ11 6P6C Female Modular Socket Connector, 1 Port, Unshielded, R/A, Tab-Down, No LED
Introduction:
This is a single port surface mount RJ11 female modular socket designed for high-efficiency automated assembly on modern printed circuit boards. It utilizes a hi-temp thermoplastic housing that survives intense industrial reflow soldering processes without any structural deformation. The Gold plated Phosphor Bronze contacts ensure superior conductivity and a consistent 1.5A current rating for voice and data signals. Utilizing a Tab-Down right angle configuration, this unshielded component effectively saves vertical board space while providing high dielectric withstanding voltage. Technicians utilize this reliable modular interface for modern telecommunication devices and networking hardware requiring secure SMT connectivity.
Key Features
- SMT Surface Mount: Facilitates efficient and automated high-speed PCB assembly.
- Gold Plated Contacts: Delivers superior conductivity and lasting signal stability.
- Hi-Temp Thermoplastic: Survives intense heat during industrial reflow soldering.
- Tab-Down Configuration: Optimizes vertical space for specialized board layouts.
- 6P6C RJ11 Interface: Provides standard modular links for voice networking.
Main Specifications:
General Information:
| Product No.: | MTJ-66WAX1 | |
| Series: | MTJ | |
| Category: | Single Port RJ11 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 6P6C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500 mΩ Min | |
| Dielectric withstanding voltage: | 1000 Vrms for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
