Introduction:
Power over Ethernet capabilities allow the single port RJ45 PoE magjack to handle both data and power efficiently across 10/100Base-T networks. A full nickel-plated brass shield surrounds the connector to block electromagnetic interference effectively. The main housing utilizes durable PA66 insulation, featuring a built-in board lock that guarantees secure right-angle mounting onto the PCB. Yellow and green LEDs are integrated directly into the tab-up profile to supply immediate visual network status. Gold-plated phosphor bronze contacts maintain contact resistance strictly below 20mΩ, establishing a highly reliable connection within a standard commercial temperature range.
Key Features
- 10/100 Base-T PoE: Facilitates simultaneous power and data transmission.
- Brass Metal Shielding: Nickel-plated housing blocks electromagnetic interference.
- PA66 Insulation: Durable thermoplastic ensures secure PCB retention.
- Integrated Status LEDs: Yellow and green lights indicate network activity.
- Low Resistance Contacts: Phosphor bronze guarantees <20mΩ contact resistance.
Main Specifications:
General Information:
| Product No.: | MTJ-88SUX1-FS-VLG-M252C | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Supports PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Yellow, Right: Green |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | PA66 | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ +70°C | |
| Flammability Rating: | UL 94 V-0 |

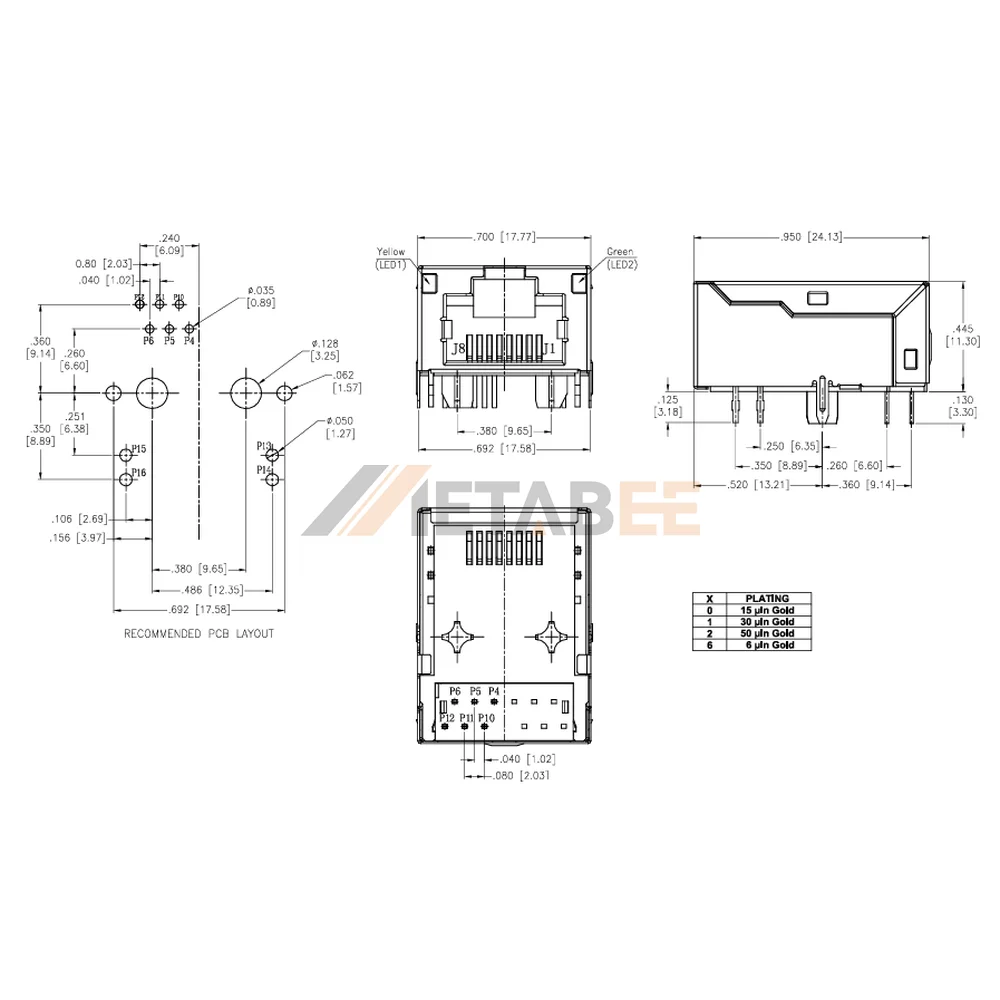

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
