Single Port RJ45 PCB Mount Jack Ethernet Connector, 8P8C, Shielded, Tab-Up, Through Hole, R/A, Yellow/Green
Introduction:
This is a single port RJ45 PCB mount jack designed for reliable through hole installation on networking circuit boards. It features a full brass shield with nickel plating to protect data signals from electromagnetic interference in busy environments. The durable black PBT housing contains built-in yellow and green LEDs for immediate link monitoring and status diagnostics. Gold over nickel plated Phosphor Bronze contacts ensure a stable 1.5A current rating for consistent signal integrity across the 8P8C interface. Utilizing a Tab-Up right angle configuration, this unit optimizes board space while maintaining high insulation resistance and electrical safety. Technicians utilize this modular interface for telecommunication devices and networking hardware requiring visual status indicators in shielded environments.
Key Features
- Full EMI Shielding: Metallic brass shell blocks external signal interference.
- Integrated Status LEDs: Yellow and green lights show network activity.
- Tab-Up Configuration: Optimizes vertical space for specialized PCB layouts.
- Gold Plated Contacts: Ensures high conductivity and lasting signal stability.
- Durable PBT Material: Maintains structural integrity within industrial temperature ranges.
Main Specifications:
General Information:
| Product No.: | MTJ-88ARX1-FSW-PG-LG-Y | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Yellow, Right: Green |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Housing Material: | Hi-temp thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

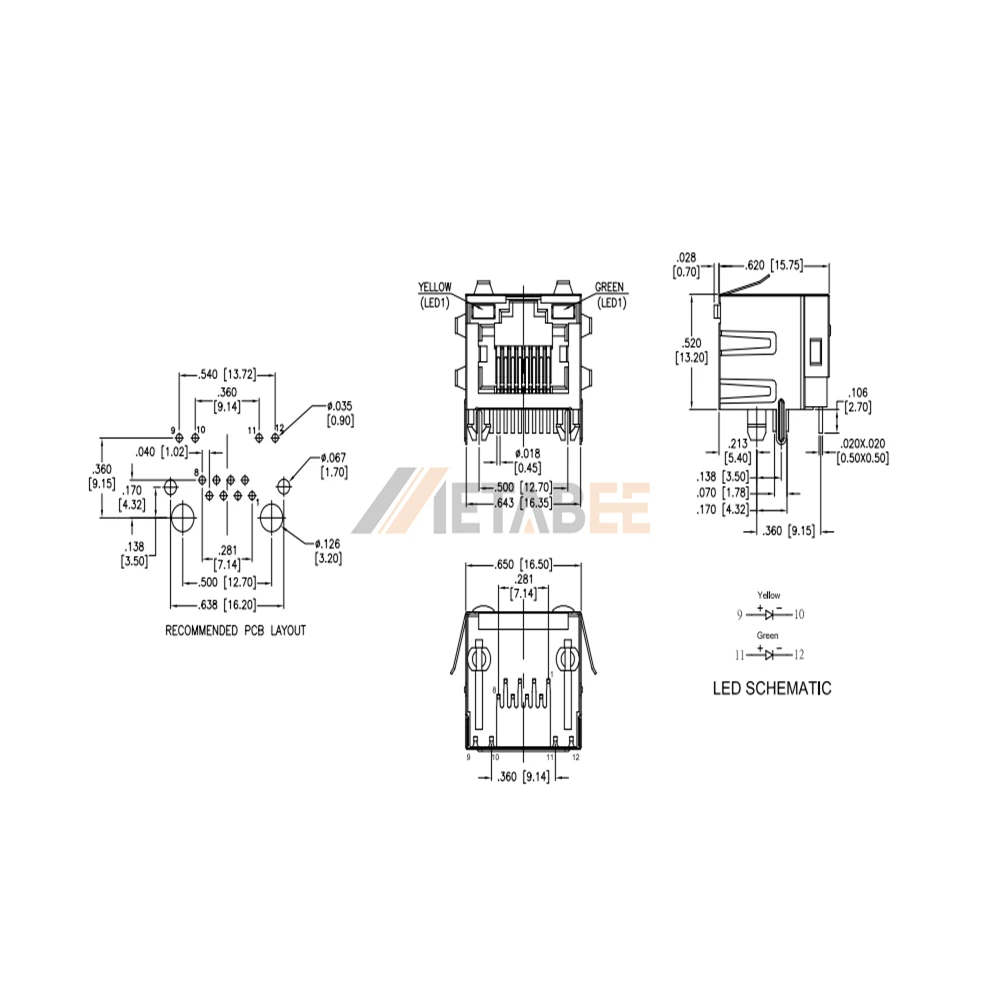

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
